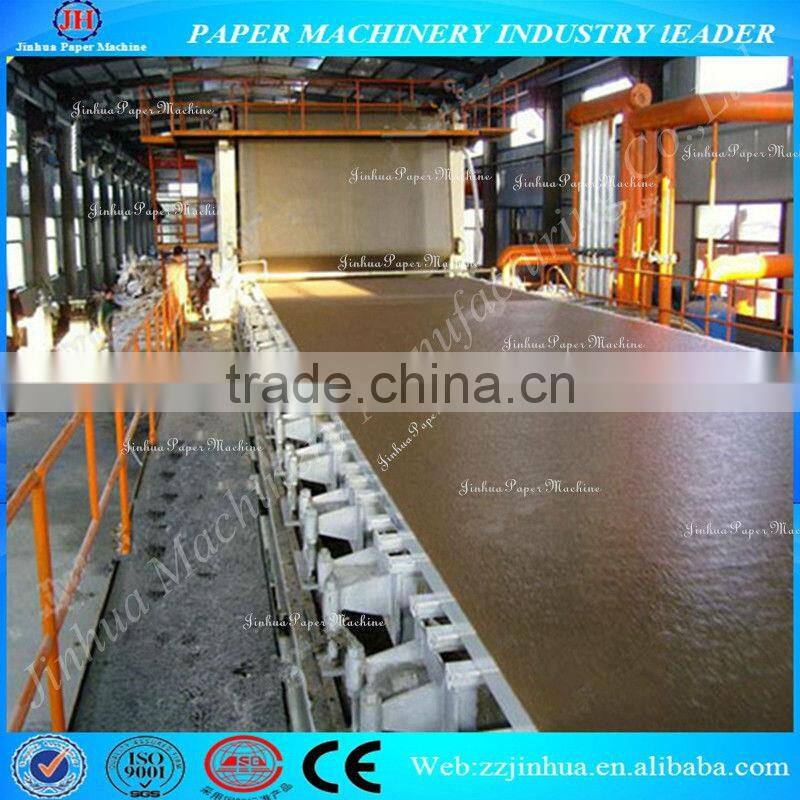

70t/d kraft corrugated paper mill machinery

straw rope and wooden package

    70t/d kraft corrugated paper mill machinery

Technical parameter:

Output :   high quality corrugated paper

Net paper width:     3200mm

Paper winding width: 3260mm

Headbox lip width:  3500mm

GSM:        80-150g/m2

Design speed:   200 m/min

Working speed  : 180 m/min

Driving speed:      200m/min

Balance speed:       220m/min

Creeping speed:     25m/min

Capacity:        50-70t/d

Rail  gauge  :  4300mm

Drive: AC frequency,distributed drive

Layout :  single-deck

Headbox pulp concentration: 0.3-0.8%

Paper Shrinkage:     3%-4%

Dryness in each section

Out of wire section   above 20-21%

Out of pressing part: above 44-45%

Out of the dryer cylinder above 92%

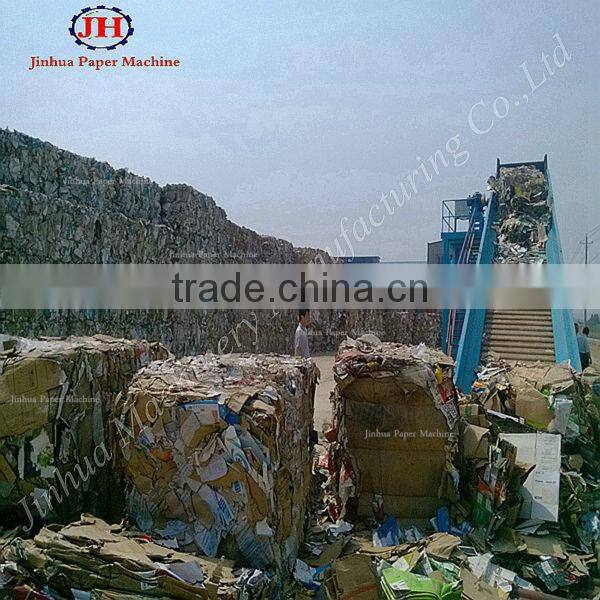

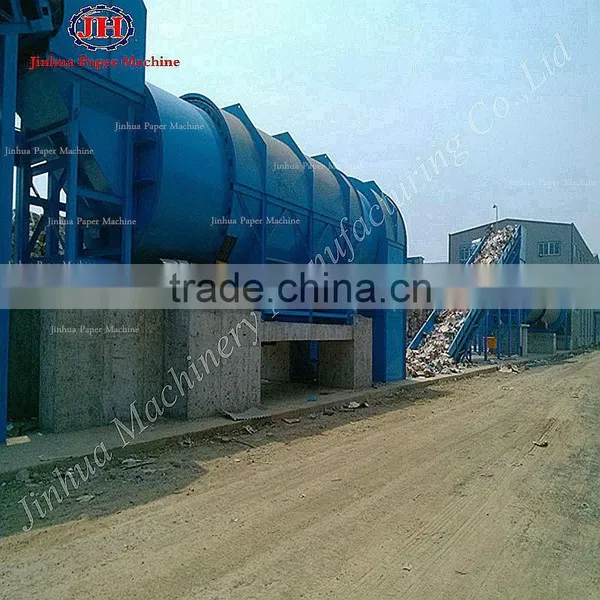

 waste paper and waste carton as raw material:

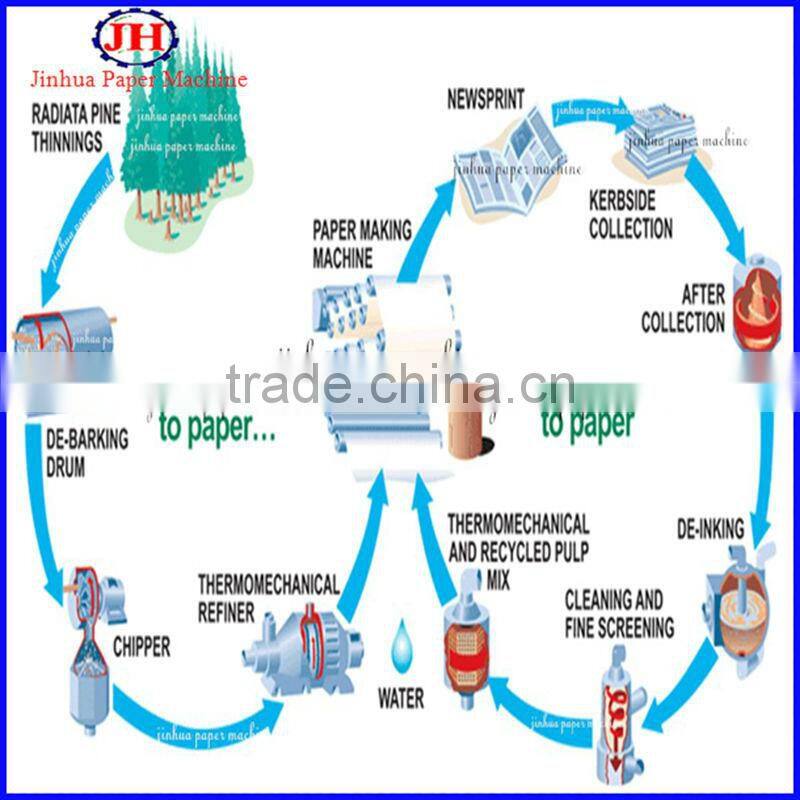

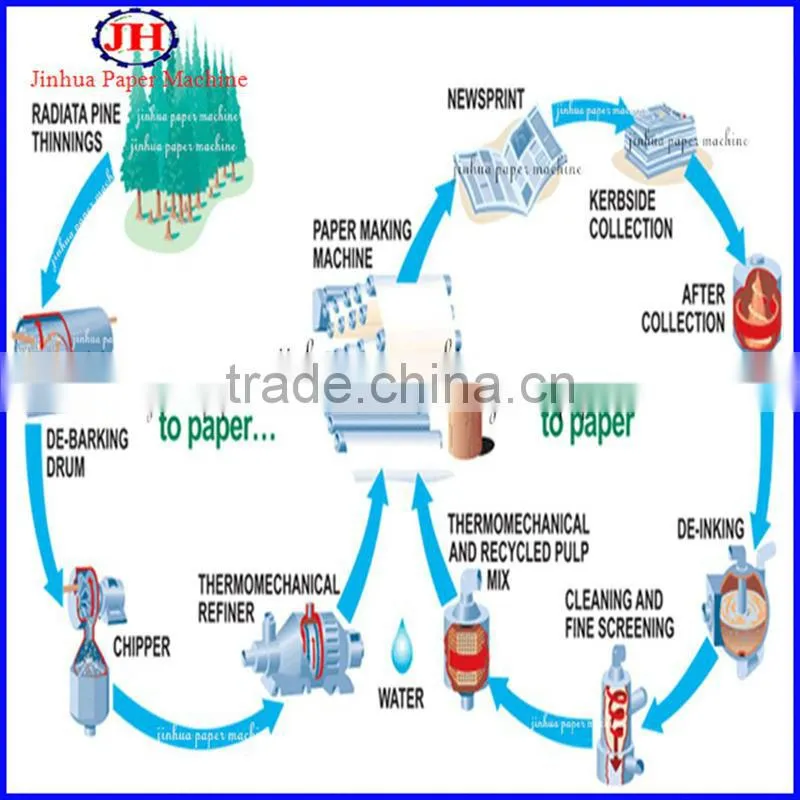

Waste paper recycling & paper making:

There are three categories of paper that can be used as feedstocks for making recycled paper: mill broke, pre-consumer waste, and post-consumer waste.Mill broke is paper trimmings and other paper scrap from the manufacture of paper, and is recycled internally in a paper mill. Pre-consumer waste is material which left the paper mill but was discarded before it was ready for consumer use. Post-consumer waste is material discarded after consumer use, such as old corrugated containers (OCC), old magazines, and newspapers. Paper suitable for recycling is called "scrap paper", often used to produce molded pulp packaging.

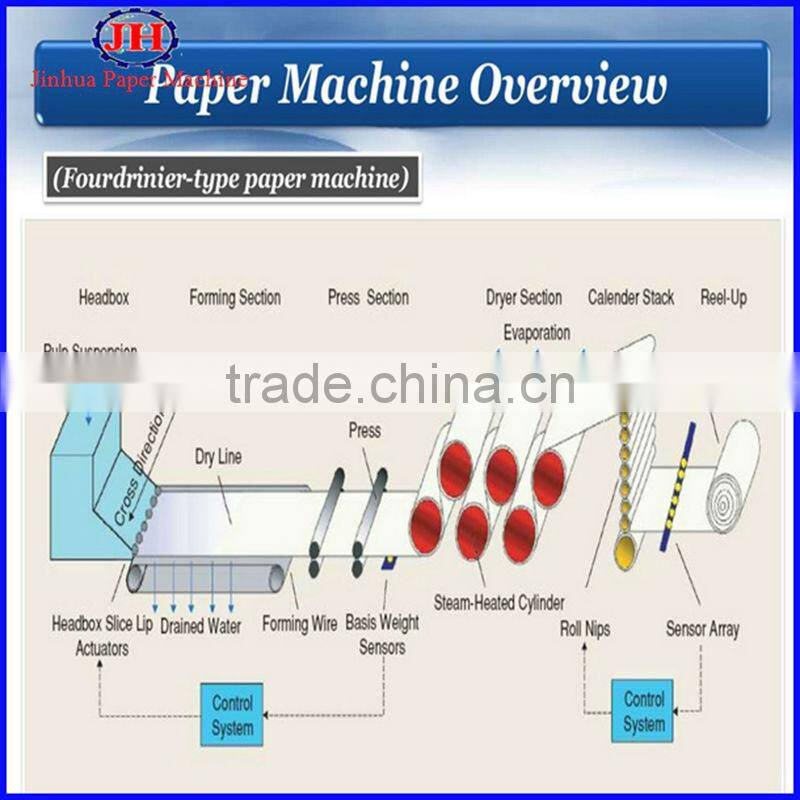

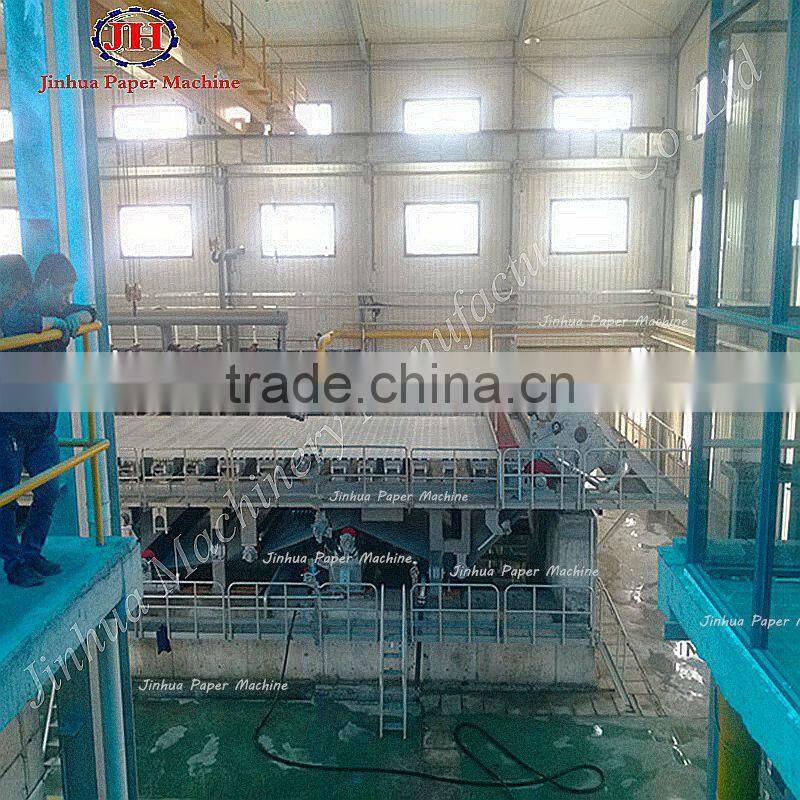

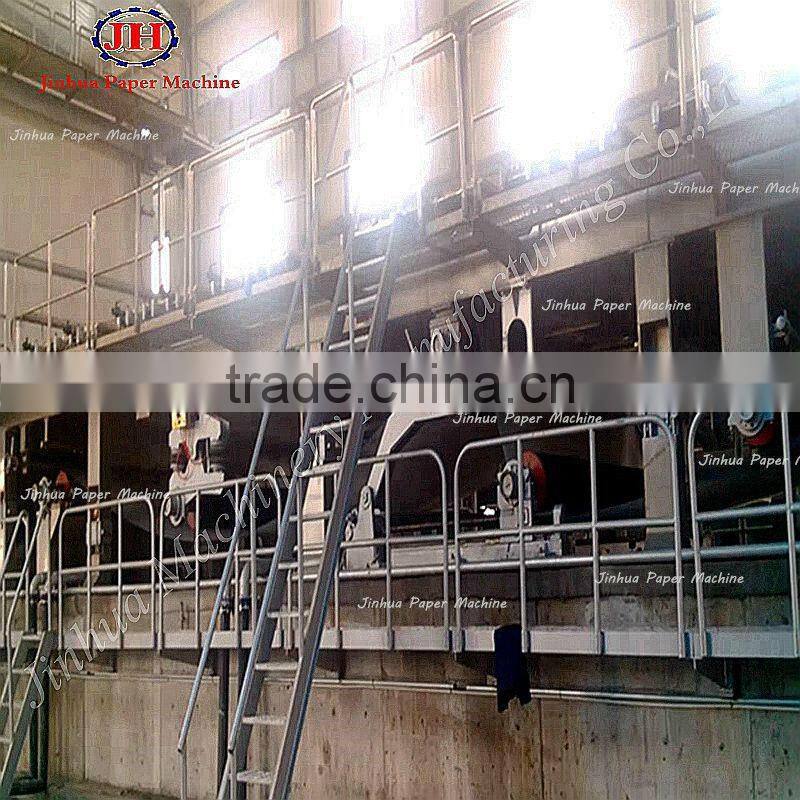

Machine main structure:

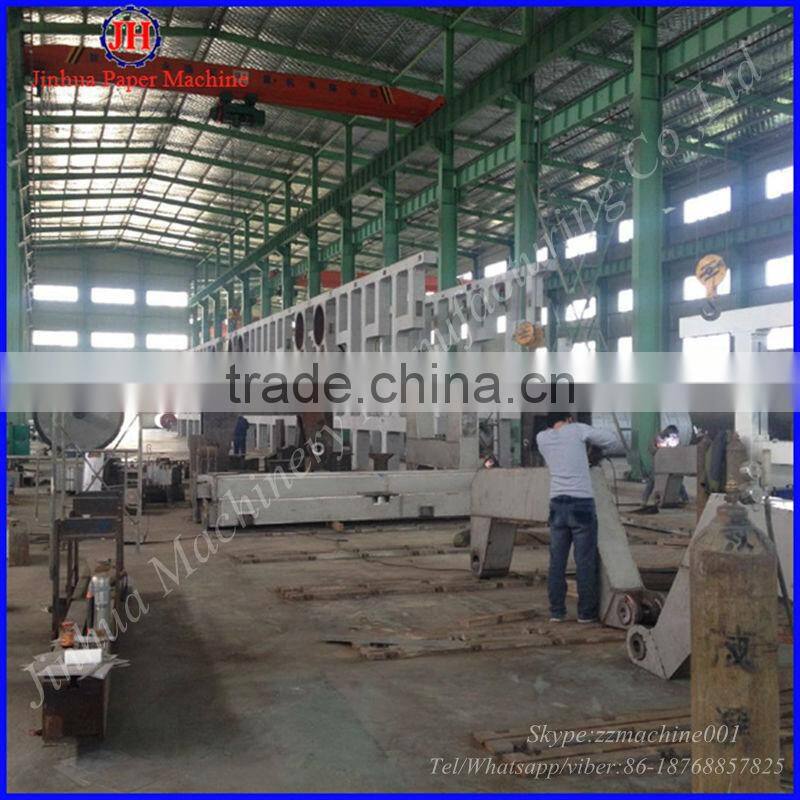

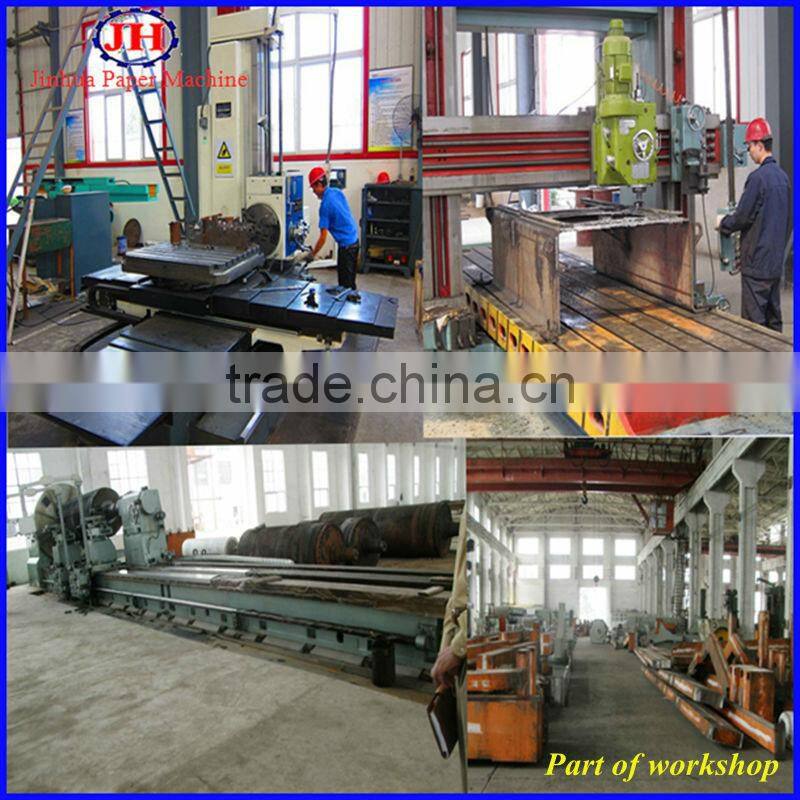

Our Factory:

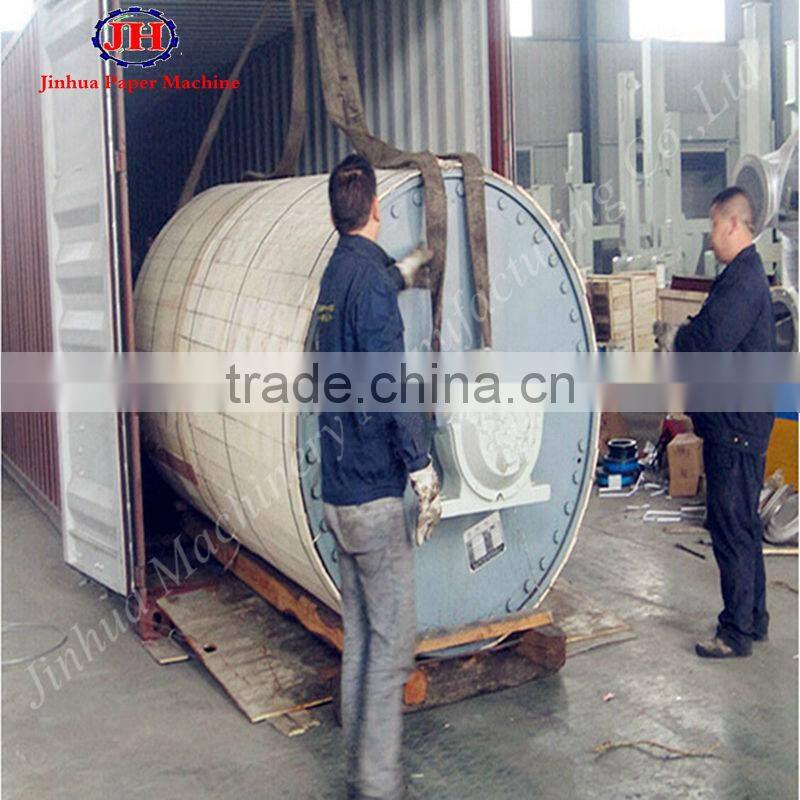

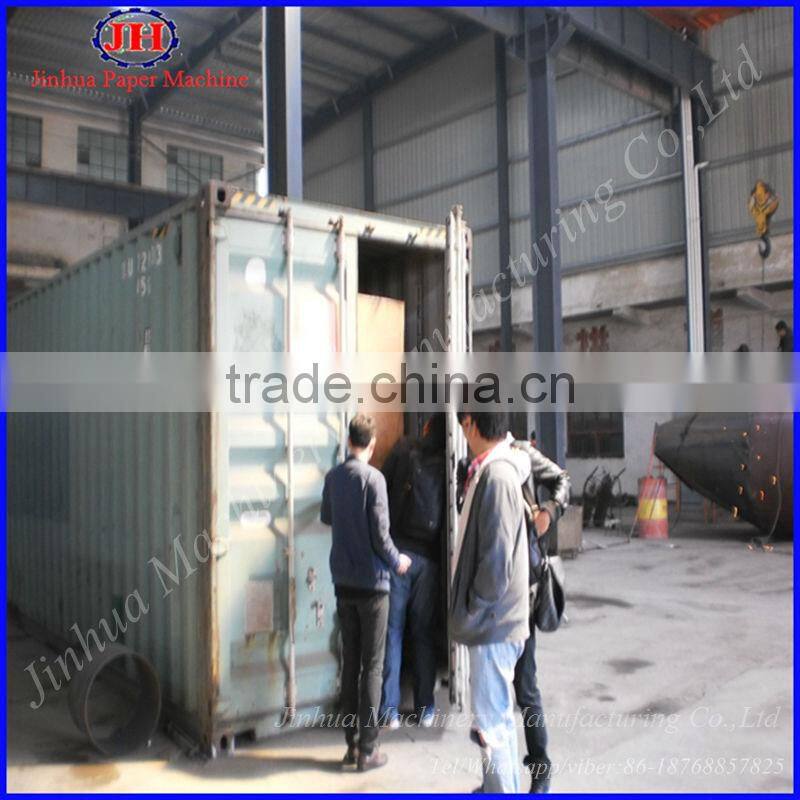

Paper machiner delivery:

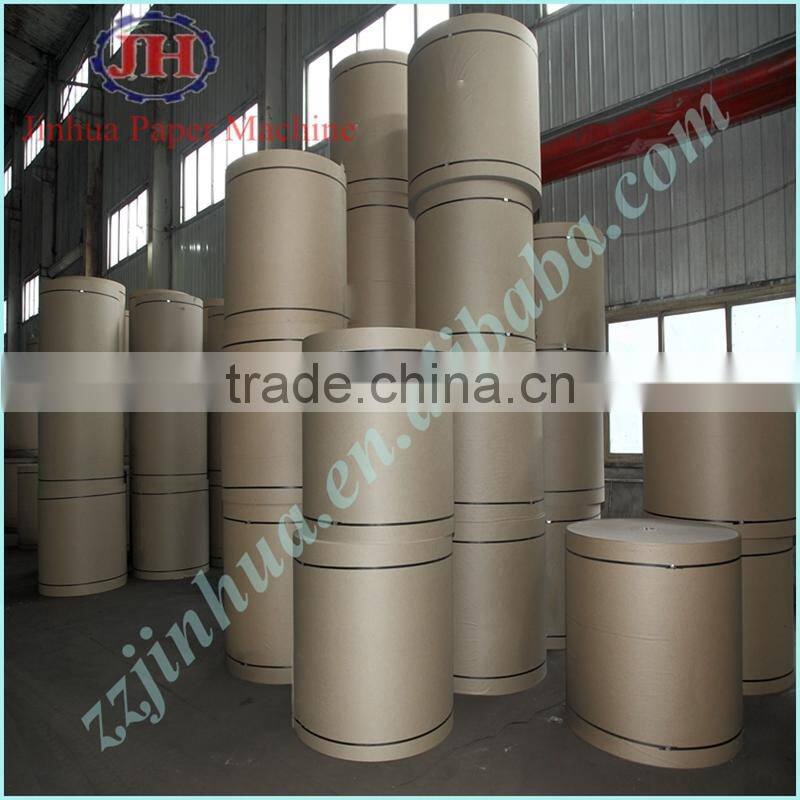

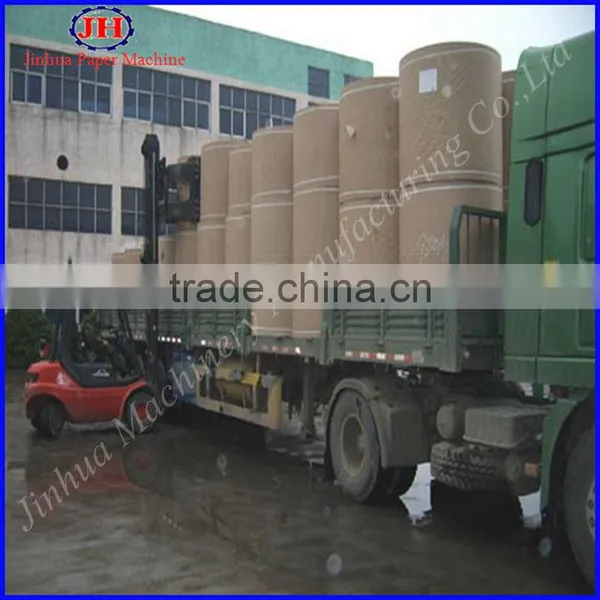

Final products:

Best Service:

Pre-sales service

customers find the right product by professional technology and business consultation

vide plans of the machines installation freely

uld make customized products according to the clients requirements

After-sales service

1.highly inspecting equipments in each working procedure ,quality comes first

2.fast and saft delivery

3.assisting our clients to bulid the equipment

4.dispatching engineers to install and debug equipments

5.training the first-line operators on site

6.regularly visit clients to solve production problems

viding lifetime maintenance service

viding technical exchanging and updating
