Corrugated sheet making machine
Technical Parameter:
1. Output paper: kraft paper , test liner paper,kraft liner paper
2. Output weight: 100-250g/m2
3. Paper width: 3800mm
4. Rail gauge: 5100mm
5. Design speed: 300m/min
6. Working speed: 150-250m/min
7. Capacity: 160 T/D
8. The gauge: 5100mm
9. Pressure type: pneumatic pressure device
10. Driving type: use AC frequency conversion,and driving by step
11. Pulp formation type: pressure mould former

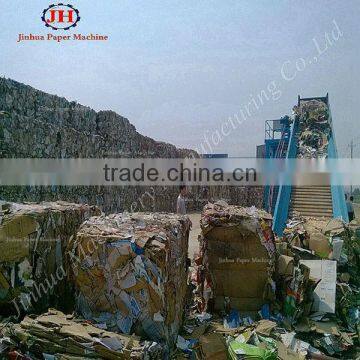

Pulping and paper recycling:
waste paper → hydrapulper → pulp pump → high density cleaner → reject separator→ pulp pump → chest agitator→ pulp pump → centrifugal mid cosistency pressure screen → pulp pump → impurity remover →inflow pressure screeen → corrugated paper machine → calendar → winding machine → rewinding machine → marketing

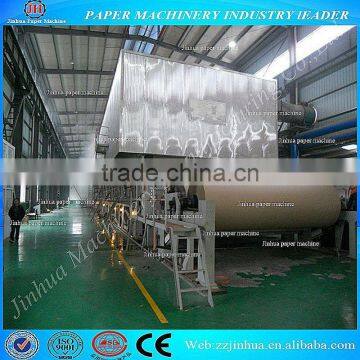

Machine Structure:
- Headbox (open type; air cushion type; hydraulic)
- Wire /Forming Section (mould-forming; fourdrinier; multi-layers)
- Press Section
- Dryer Section(dryer cylinder; dryer hood)
- Pope Reel
- Drive Section (AC Frequency Inverter Sectional)
- Electric control system
- Lubrication System
- Broke Agitator System
- Others (sole plate; walkway & ladder)
Features:
Controlling way: Adopt Siemens or Sanken inverter and high quality low voltage apparatus.
The main core hardware supporting
every branch transmission point goes with a AC Inverter, indicator lamp, air switch, terminal board and so on; these all sino-foreigh joint products.
Transmiss control cabinet
All adopt standard GGD control cabinet, including power supply cabinet, transmission cabinet.
Operational panel
Including main transmission operational panel.
Software and design information:
1. PLC applications software, speed chain, current control and telecom software.
2. Providing system schematic manual, external wiring diagram and cable list.
3. Providing technical specification of system unit, operation, running and configuration software.

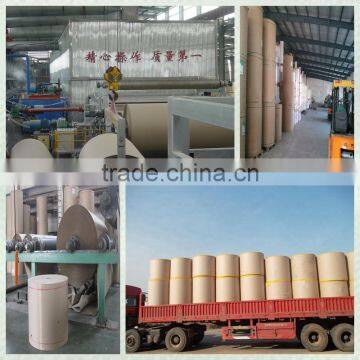

Part of Our Factory:

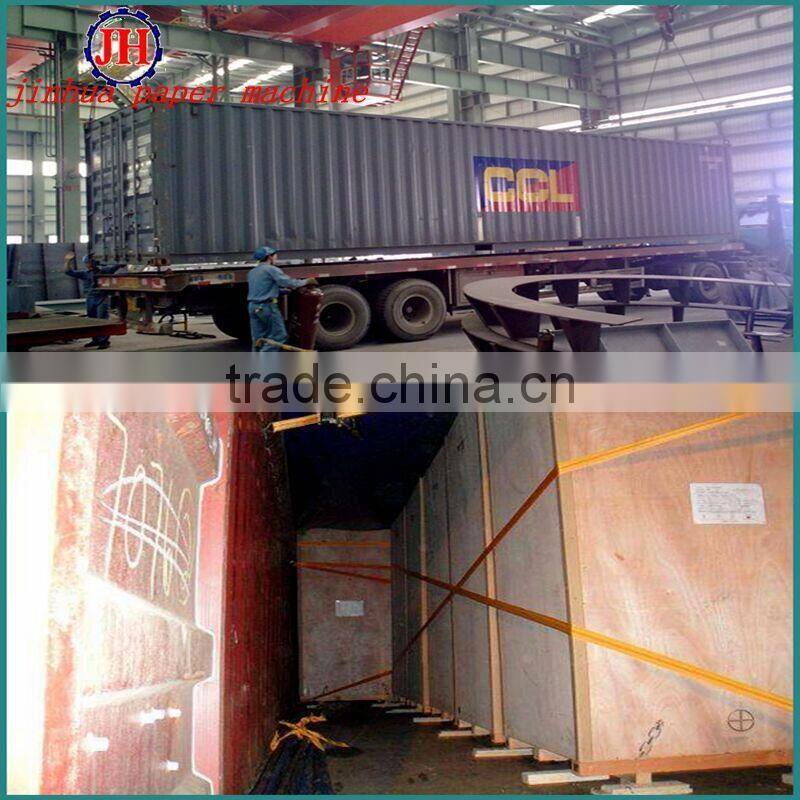

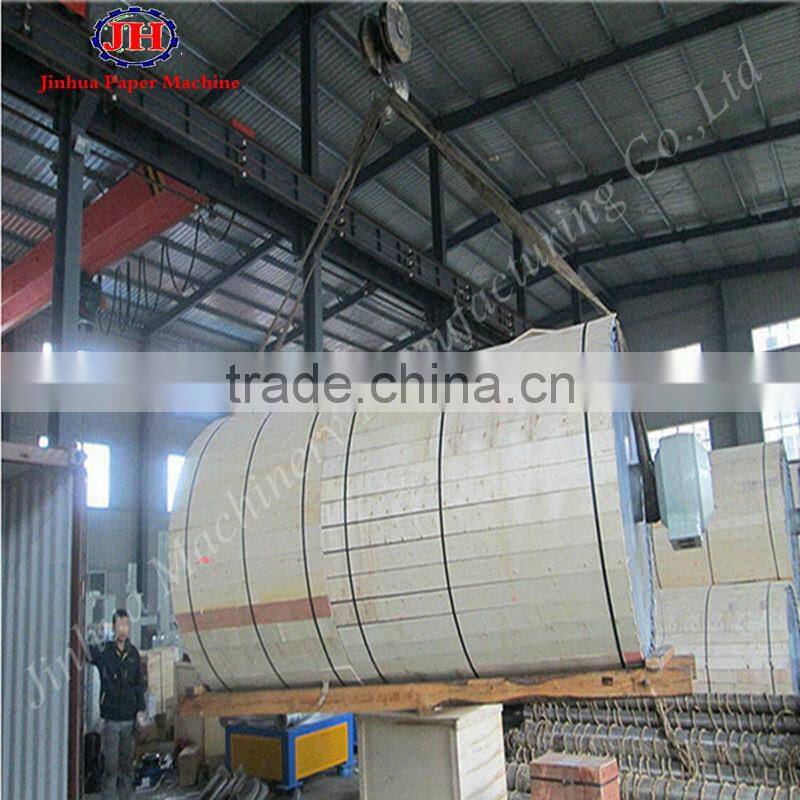

Delivery:
Our factory:

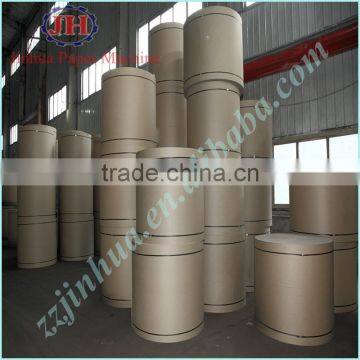

Corrugate paper:
