Paper Net Wideth 1575mm Fourdrinier Paper Machine 5-10 T/D Coated White Board Paper Production Line

Paper Net Wideth 1575mm Fourdrinier Paper Machine 5-10 T/D Coated White Board Paper Production Line photo-1

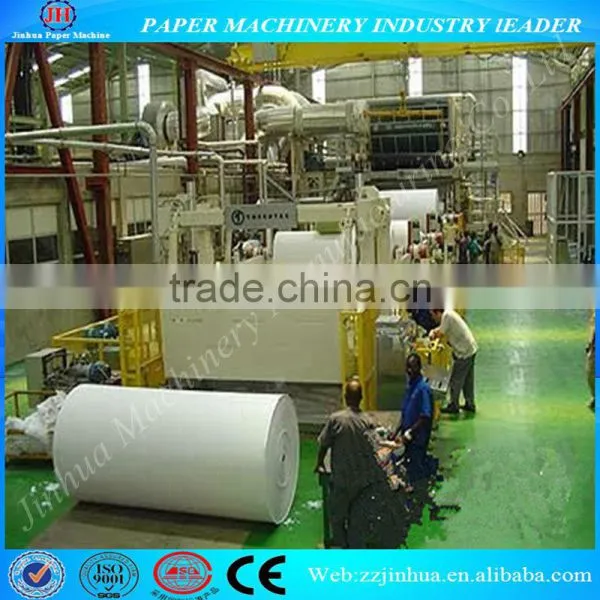

Paper Net Wideth 1575mm Fourdrinier Paper Machine 5-10 T/D Coated White Board Paper Production Line photo-2

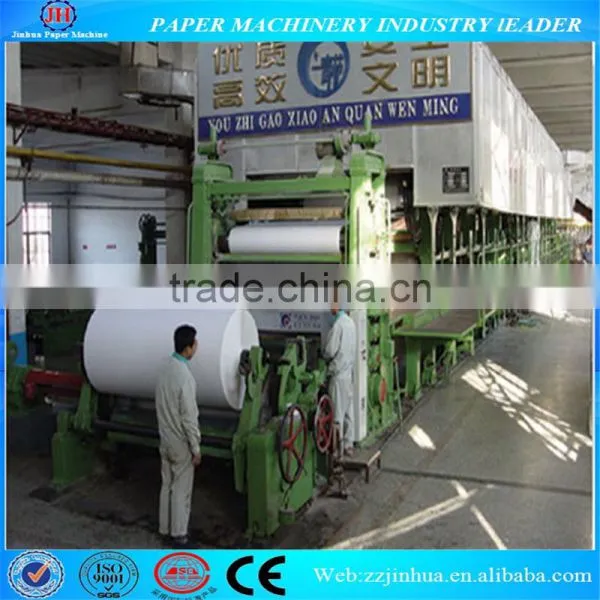

Paper Net Wideth 1575mm Fourdrinier Paper Machine 5-10 T/D Coated White Board Paper Production Line photo-3

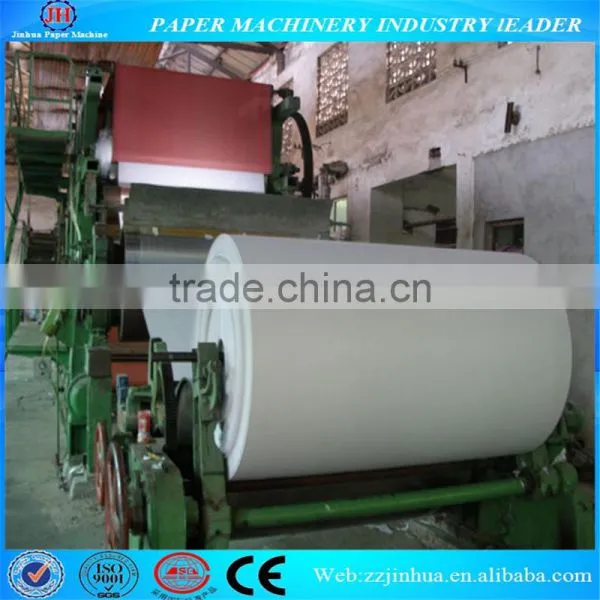

Paper Net Wideth 1575mm Fourdrinier Paper Machine 5-10 T/D Coated White Board Paper Production Line photo-4
US$ 250,000 - 300,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, a4 paper /copying & printing paper machine
Processing Type:
Other, culture paper making machine
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao port /Shanghai .Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Other, a4 paper /copying & printing paper machine
Processing Type Other, culture paper making machine
Place of Origin Henan, China
Brand Name Jinhua
Model Number 1575mm
Voltage 380v
Power(W) 260kw
Dimension(L*W*H) 12m*5m*3m
Weight 12T
Certification Other, ISO9001:2008
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

          1575 mm  fourdrinier and double-dryer paper machine culture paper machine



Brief  Introduction :

Cultural paper machine includes the model 1092mm,1575mm,1880mm,2400mm,3200mm, etc. It can make cultural paper,newspaper,writing paper, printing paper((A3,A4paper)), transfer printing paper (A3,A4paper) , flat paper and so on.The capacity is from 5 tons to 50 tons per day.

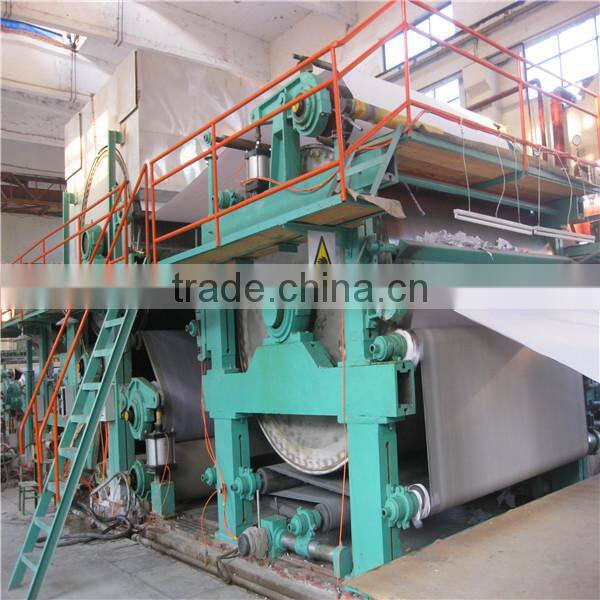

paper net wideth 1575mm fourdrinier paper machine 5-10 T/D Coated White Board Paper production line



The parameter of 1575 mm culture paper machine:

 1.raw material:waste paper pulp,wood plup,bamboo pulp

 2.Output:newspaper,writing paper,printing paper, transfer printing paper (A3,A4paper) ,

3.Output: paper weight: 40-120 g/m

paper width: 1600mm

5.Capacity:5-6 ton per day

6.Width of cylinder mould: 1950 mm

7.Rail gauge: 2400 mm

8. Drive way: AC frequency conversion speed, section drive



structure of main part:

 1.Cylinder section: Φ1500mm×1950mm stainless steel cylinder mould 2 sets, Φ450mm×1950mm couch roll 2 set, φ400×1950mm reverse roll 1set, coated by rubber,rubber shore hardness 38°C±2.pneumatic loading device.

2.Press section: Φ500mm×1950mm marble roll 1 set, Φ450mm×1950mm rubber roll 1 set, coated by rubber,rubber shore hardness 90°C±2.

3.Dryer section:Φ2500mm×1950mm alloy dryer can 1 set, Φ1500mm×1950mm alloy dryer can 3 set,Φ500mm×1950mm touch roll 1 set,coated by rubber,rubber shore hardness 90°C±2.

4.Drive way :AC frequency conversion speed, section drive

5. Pneumatic compression device.

paper net wideth 1575mm fourdrinier paper machine 5-10 T/D Coated White Board Paper production line



All equipments list:

NO.

Item

Qty(set)

1

1575mm office paper machine

1

2

15 type roots vacuum pump

1

3

Suction box

2

4

5m3 High consistency hydrapulper

1

5

1.8m2 High frequency vibration screen

1

6

Φ380mm double disc pulp refiner

1

7

606sander remover ( 6 pcs)

1 group

8

6 inch pulp Pump

3

9

4 inch pulp Pump

2

10

Φ700mmThruster Φ700mm

4

11

1575mm cutting machine

1

12

35m3Bleacher

1

13

0.9m3 Centrifugal screen

1

14

2T Boiler(burn coal)

1

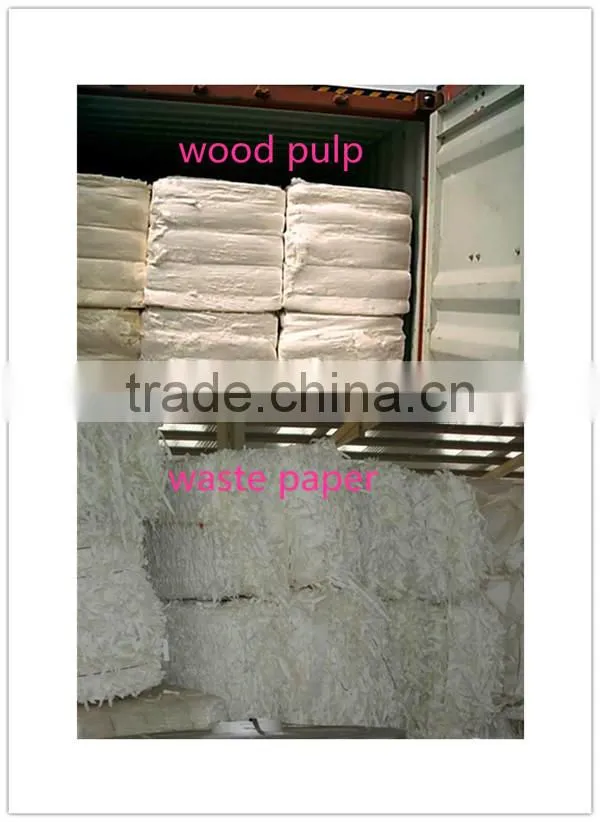

 Raw material:

paper net wideth 1575mm fourdrinier paper machine 5-10 T/D Coated White Board Paper production line

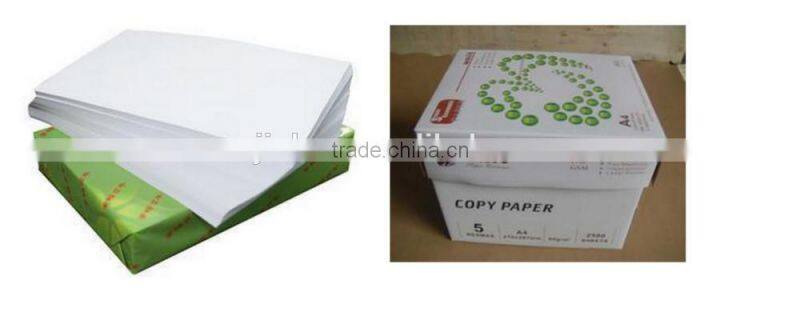

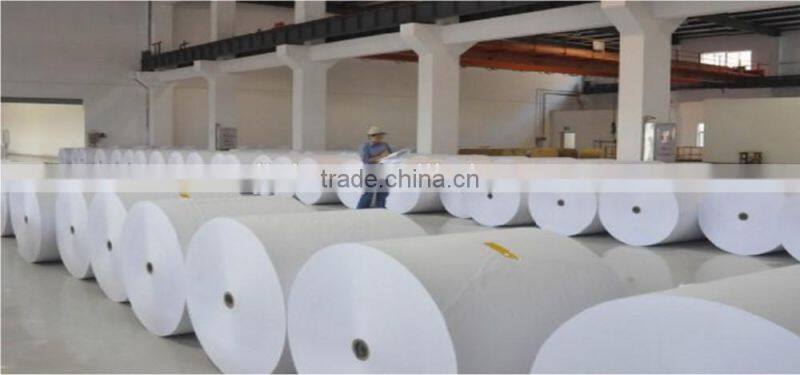

Output paper :paper net wideth 1575mm fourdrinier paper machine 5-10 T/D Coated White Board Paper production linepaper net wideth 1575mm fourdrinier paper machine 5-10 T/D Coated White Board Paper production line

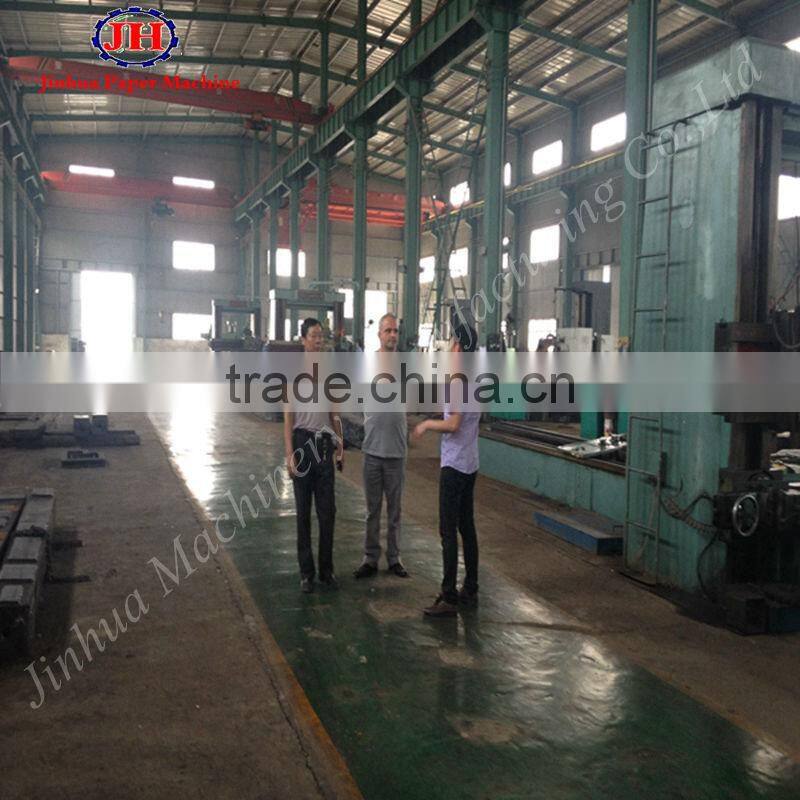

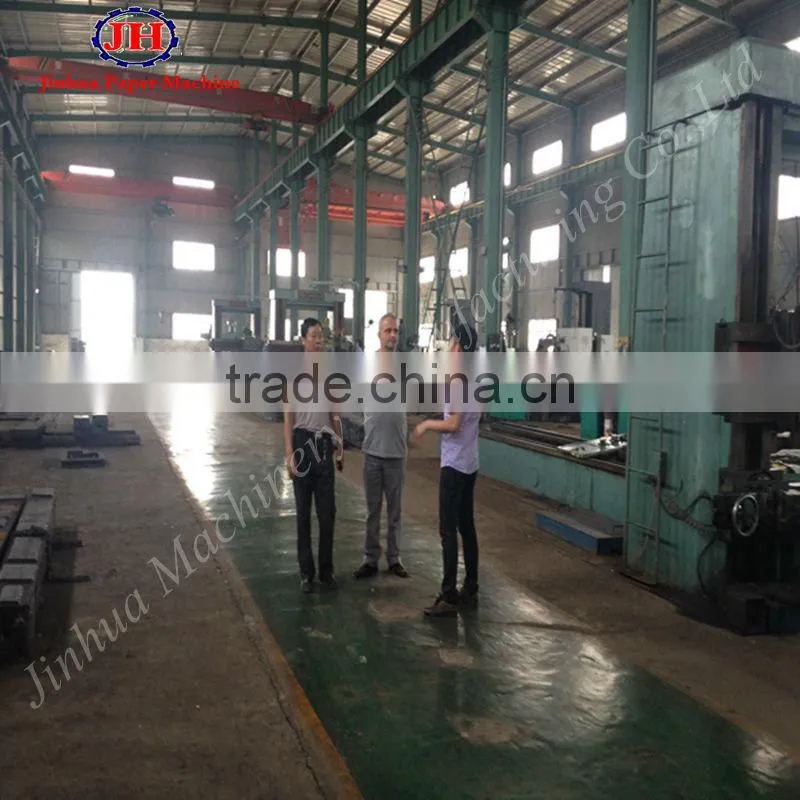

Our Factory :paper net wideth 1575mm fourdrinier paper machine 5-10 T/D Coated White Board Paper production line
