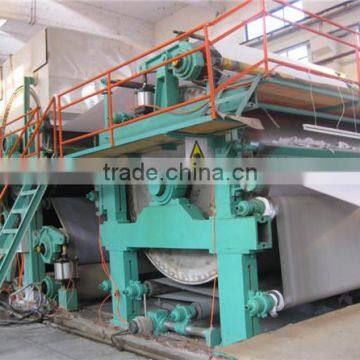

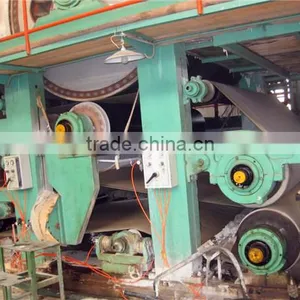

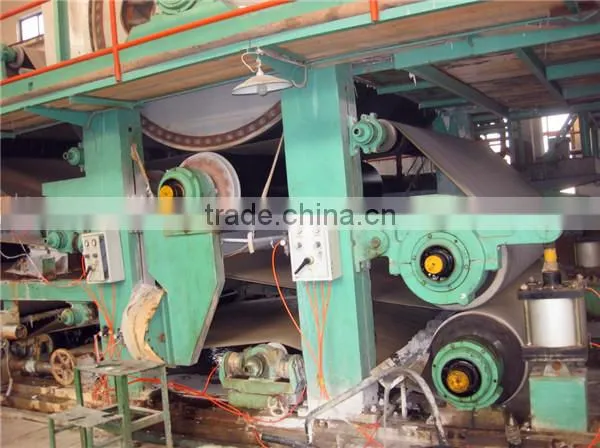

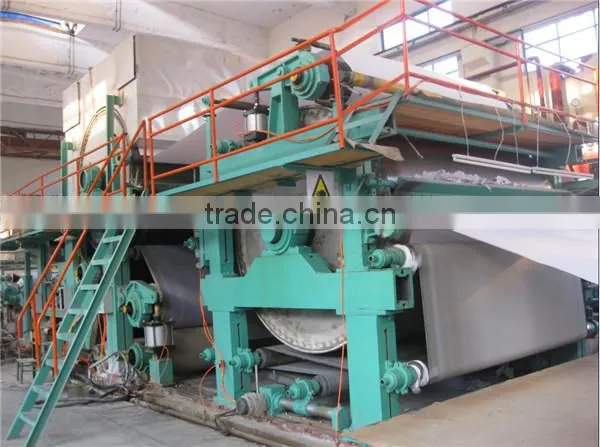

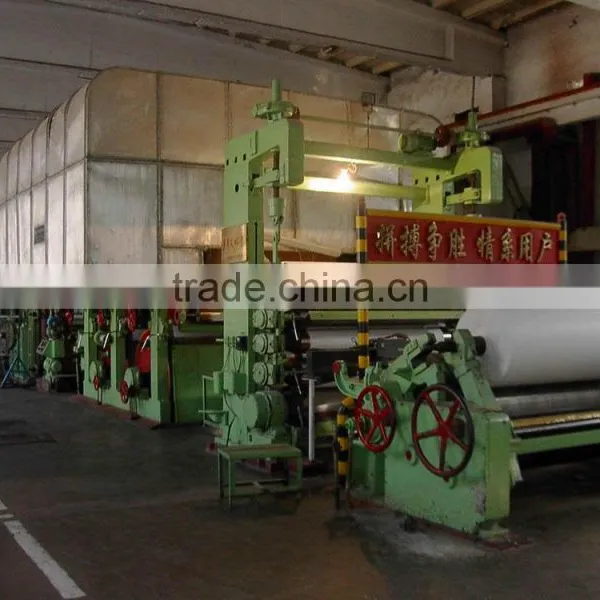

1575 mm fourdrinier and double-dryer paper machine culture paper machine
Brief Introduction :
Cultural paper machine includes the model 1092mm,1575mm,1880mm,2400mm,3200mm, etc. It can make cultural paper,newspaper,writing paper, printing paper((A3,A4paper)), transfer printing paper (A3,A4paper) , flat paper and so on.The capacity is from 5 tons to 50 tons per day.
The parameter of 1575 mm culture paper machine:
1.raw material:waste paper pulp,wood plup,bamboo pulp
2.Output:newspaper,writing paper,printing paper, transfer printing paper (A3,A4paper) ,
3.Output: paper weight: 40-120 g/m
paper width: 1600mm
5.Capacity:5-6 ton per day
6.Width of cylinder mould: 1950 mm
7.Rail gauge: 2400 mm
8. Drive way: AC frequency conversion speed, section drive
structure of main part:
1.Cylinder section: Φ1500mm×1950mm stainless steel cylinder mould 2 sets, Φ450mm×1950mm couch roll 2 set, φ400×1950mm reverse roll 1set, coated by rubber,rubber shore hardness 38°C±2.pneumatic loading device.
2.Press section: Φ500mm×1950mm marble roll 1 set, Φ450mm×1950mm rubber roll 1 set, coated by rubber,rubber shore hardness 90°C±2.
3.Dryer section:Φ2500mm×1950mm alloy dryer can 1 set, Φ1500mm×1950mm alloy dryer can 3 set,Φ500mm×1950mm touch roll 1 set,coated by rubber,rubber shore hardness 90°C±2.
4.Drive way :AC frequency conversion speed, section drive
5. Pneumatic compression device.
All equipments list:
NO. |
Item |
Qty(set) |
1 |
1575mm office paper machine |
1 |
2 |
15 type roots vacuum pump |
1 |
3 |
Suction box |
2 |
4 |
5m3 High consistency hydrapulper |
1 |
5 |
1.8m2 High frequency vibration screen |
1 |
6 |
Φ380mm double disc pulp refiner |
1 |
7 |
606sander remover ( 6 pcs) |
1 group |
8 |
6 inch pulp Pump |
3 |
9 |
4 inch pulp Pump |
2 |
10 |
Φ700mmThruster Φ700mm |
4 |
11 |
1575mm cutting machine |
1 |
12 |
35m3Bleacher |
1 |
13 |
0.9m3 Centrifugal screen |
1 |
14 |
2T Boiler(burn coal) |
1 |
Raw material:
Output paper :
Our Factory :
Contact information :
