Specifications
1.Toshiba brand CCD sensor2.Super wide chute to achieve high output and precision
3.SMC Solenoid Valve
4.LED light

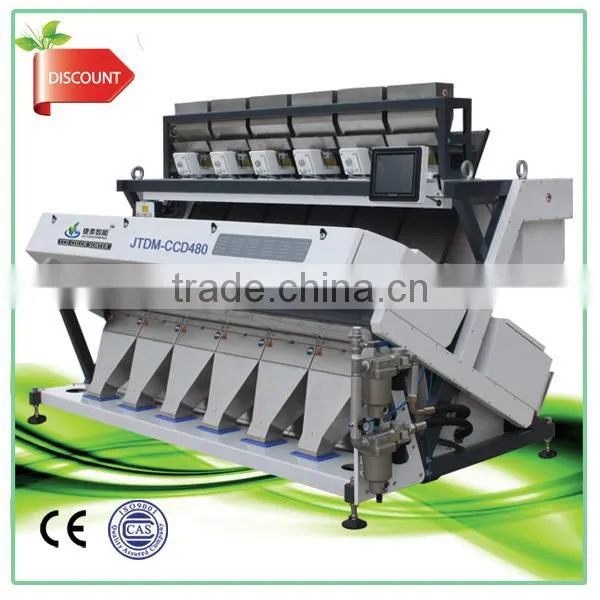

CCD Double Camera Color Sorter For Agricultural Use
1.The color sorter uses 2048 high performances CCD sensors with resolution up to 0.02mm2.
2.The sorter adopts high quality special industrial lenses designed and manufactured for color sorting of rice.
3.The high speed DSP technology provides the sorter with fast detection and high identification rate.The special coarse cereal detection algorithm is designed.
4.Double row intensive LED light with cooling system which is tailor made from Taiwan is more stability and has a longer life time.
5.Overall unit adopts intelligent closed-loop control.
6.The operation interface adopts the 10-inch TFT color touch screen; graphical idiot-type operation can achieve the item image acquisition ,support multilingual operation and be more humanity.
7.High quality and high speed solenoid vale,ultrahigh precision, leading in industry. Core technology is from Japan which is more precision and has a longer lift time .
8.Sorters use intelligent temperature and air pressure control technology in order to ensure the best operative mode for the whole machine.
9.Auto Alarm when the air pressure is low. Modular construction,different material images free storage,the feeding system will be cut off automatically in case of the power failure .It will be easier to maintenance
Applicable to all types of materials,rice, grain,and industrial granules etc.
Model |
JTDM-CCD3R |
JTDM-CCD4R |
JTDM-CCD5R |
JTDM-CCD6R |
Output (Ton/hr) |
4-7 |
5-11 |
7-12 |
10-15 |
Channels (big/small) |
64/192 |
64/256 |
64/320 |
64/384 |
Ejectors |
192 |
256 |
320 |
384 |
Light source |
LED light |
LED light |
LED light |
LED light |
Pixel of camera |
5000*3 |
5000*3 |
5000*3 |
5000*3 |
Color sorting accuracy |
>99.99% |
>99.99% |
>99.99% |
>99.99% |
Carryover rate |
>10:1 |
>10:1 |
>10:1 |
>10:1 |
Host power |
1.0-2.5 |
1.2-3.0 |
1.4-3.5 |
1.6-4.0 |
Air pressure |
≥0.6Mpa |
≥0.6Mpa |
≥0.6Mpa |
≥0.6Mpa |
Air consumption (L/min) |
1000-1800 |
1200-2500 |
1500-3000 |
1800-3600 |
Power supply |
220V/50HZ |
220V/50HZ |
220V/50HZ |
220V/50HZ |
Machine weight (kg) |
900 |
1100 |
1300 |
1500 |
Package |
wooden case |
wooden case |
wooden case |
wooden case |
TAG:Color Sorting Machines, Color Sorter,CCD Sorter Machine
