Specifications
1.Toshiba brand CCD sensor2.Super wide chute to achieve high output and precision
3.SMC Solenoid Valve
4.LED light

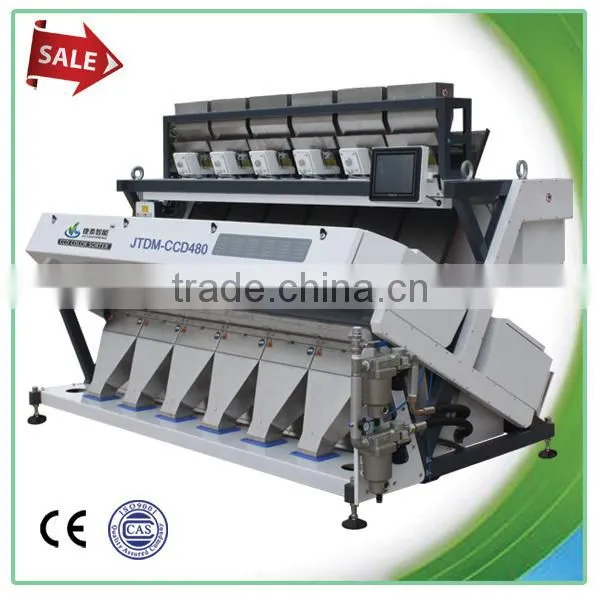

Beans CCD Color Sorter with Reliable Quality Guarantee, Inventive Colorful Industrial Color Sorter
1. The color sorter uses 5000*3 high performances CCD sensors with resolution up to 0.02mm2.
2. Double row intensive LED light with cooling system which is tailor made from Taiwan is more stability and has a longer life time.
3. The Grain Color Sorter adopts high quality special industrial lens to ensure the each size has a perfect image on the image sensor.
4. Discharge outlet is patent design.Adjustable damper could reduce the good material to defect chamber to improve the precision and achieve the optimized carryover to improve the processing efficiency.
5. Overall unit adopts intelligent closed-loop control.
6. The operation interface adopts industrial grade 10inch TFT contact screen and features simple parameters setting and easy operation.
7. High speed air valve is used to ensure quick response, low power consumption and long service life.
9. Auto Alarm when the air pressure is low. Modular construction,different material images free storage,the feeding system will be cut off automatically in case of the power failure .It will be easier to maintenance
10.The machine channels can be changed based on the diverse material.Before order ,please tell us the capacity of each hour and the raw material which you will sort.If you have the pictures of before and after ,there will be a good help for us to recommend the best model.
Model | JTDM-CCD3R | JTDM-CCD4R | JTDM-CCD5R | JTDM-CCD6R |
Output (Ton/hr) | 4-7 | 5-11 | 7-12 | 10-15 |
Channels (big/small) | 64/192 | 64/256 | 64/320 | 64/384 |
Ejectors | 192 | 256 | 320 | 384 |
Light source | LED light | LED light | LED light | LED light |
Pixel of camera | 5000*3 | 5000*3 | 5000*3 | 5000*3 |
Color sorting accuracy | >99.99% | >99.99% | >99.99% | >99.99% |
Carryover rate | >10:1 | >10:1 | >10:1 | >10:1 |
Host power | 1.0-2.5 | 1.2-3.0 | 1.4-3.5 | 1.6-4.0 |
Air pressure | ≥0.6Mpa | ≥0.6Mpa | ≥0.6Mpa | ≥0.6Mpa |
Air consumption (L/min) | 1000-1800 | 1200-2500 | 1500-3000 | 1800-3600 |
Power supply | 220V/50HZ | 220V/50HZ | 220V/50HZ | 220V/50HZ |
Machine weight (kg) | 900 | 1100 | 1300 | 1500 |
Package | wooden case | wooden case | wooden case | wooden case |
