Excellent & Top Quality Coal ball press machine
Specifications
Coal ball press machine
1.30 years experience
2.CE and ISO certificates
3. large capacity
4. high pressure
Description of Coal ball press machine
Coal ball press machine is the type of one or more pulverized coal with a certain proportion of cement mixing together, and then forming a kind of equipment. Coal briquette press machine is divided in to many types, such as Coal ball briquette machine, coke ball press machine, charcoal ball press machine, lime ball press machine and so on. It can produce Square, Ball, with round, goose egg, egg is circular column, line, strip, special shape, such as bread, pillow. Coal powder briquette machine is suitable for the refractory material, power plants, metallurgical, chemical, energy, transportation, heating and other industries. The Coal briquette press machine pressure molding products is saving, environmental protection, reduce pollution, easy to transport.
Main parameter of Coal ball press machine
Type |
Capacity (t/h) |
Roll Diameter (mm) |
Pressure(t) |
Roll Speed (r/min) |
Power (kw) |
Reducer |
MC-290 |
1.5-2 |
290 |
18-20 |
15-17 |
5.5 |
ZQ290 |
MC -360 |
2.5-3.5 |
360 |
20 |
15-17 |
7.5 |
ZQ360 |
MC -400 |
4-5 |
400 |
22 |
15-17 |
11 |
ZQ400 |
MC-500(1) |
6-8 |
370 |
24 |
15 |
15 |
ZQ500 |
MC-500(2) |
8-10 |
500 |
25 |
15 |
22 |
ZQ650 |
MC -650 |
10-15 |
650 |
30 |
15 |
30 |
ZQ650 |
MC -750 |
15-20 |
750 |
34 |
13 |
30 |
ZQ750 |
MC -850 |
25-30 |
850 |
54 |
13 |
37-45 |
ZQ850 |
MC 1000(1) |
35-40 |
1000 |
60 |
12 |
45-75 |
ZSY-355 |
MC 1000(2) |
35-45 |
1000 |
77-240 |
10 |
75-90 |
ZSY-400 |
|
Shape and size of final briquettes: square, ball egg-shaped, round, oval, and column, strip-type, elliptic type, pillow type and other special shapes by customizing the matching molds. Usurally 20-60mm. | ||||||

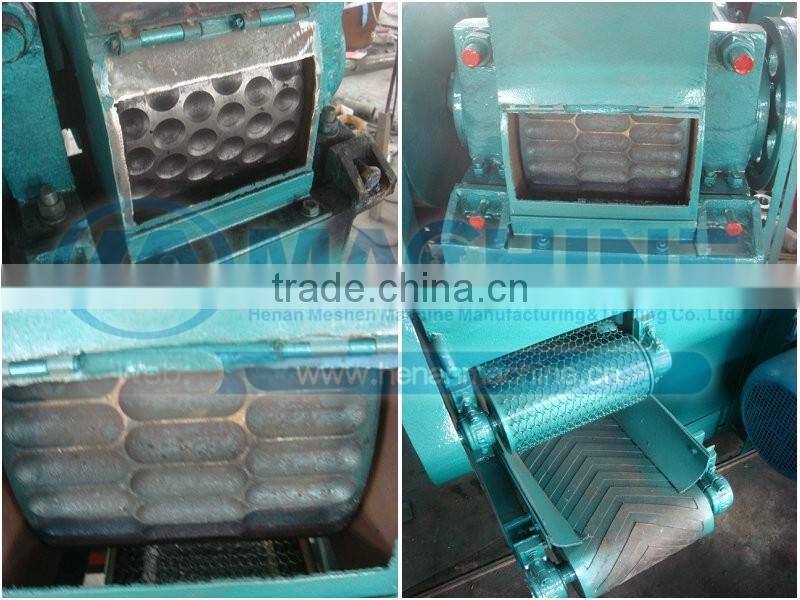

The molds
Characteristics of Coal ball press machine
1.Our Coal ball briquette machine has tremendous pressure.
2.According to your raw material and capacity, we have different size ball press machine to fullfill your demands.
3. Coal briquette press machine is widely used in coal forming, Dry powder molding, Desulfurization gypsum molding, Coke powder molding, Scrap iron and various metal mineral powder molding and so on.
4.The roller is made by hard materials with good wear resistance and long life time.
5.The molding materials are energy saving, easy to transport and higher utilization of waste 6.The final products are smokeless, non-toxic, none peculiar and environmental protection.

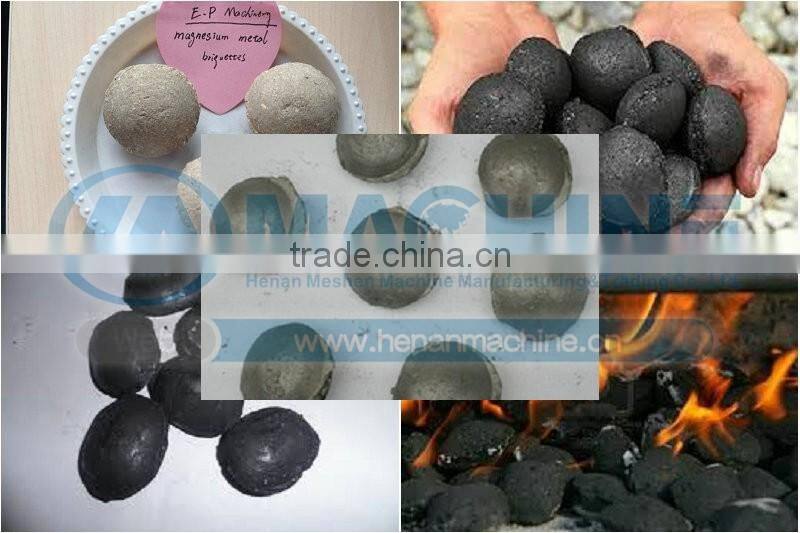

Shape and size of final product

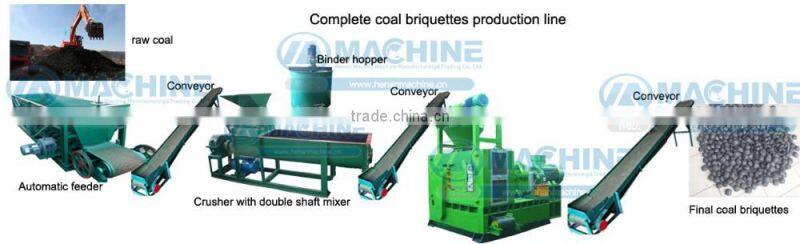

The whole line of the Coal ball press machine
The whole Coal briquette press machine production line will be crusher--conveyor--roller grinder--binder mixer--conveyor briquette machine--dryer conveyor matched process for you according to
your raw material and your place.

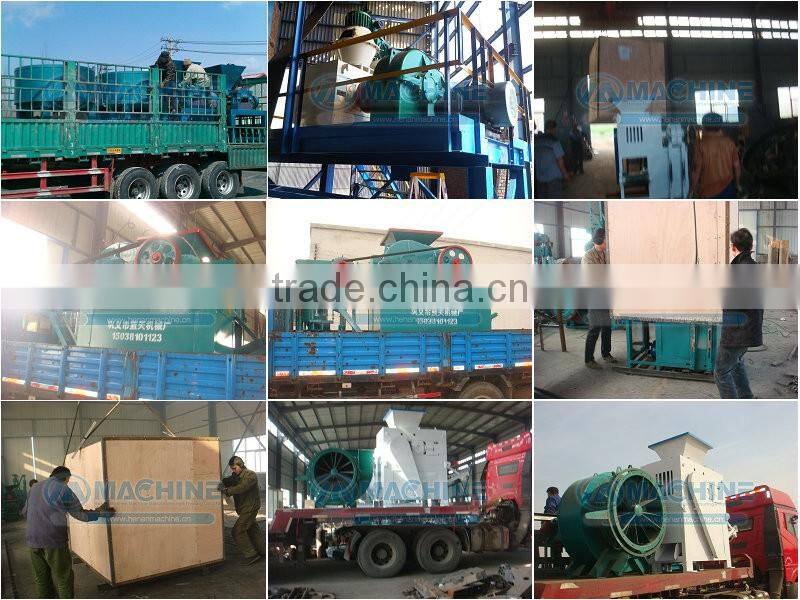

The transportation of the coal ball press machine
All our machines will be adjusted and tested before delivery.
After-sale service:
1.According to the purchase contract, our company can send engineers to help installation.
2.The quality guarantee is 1 year, not including the wearing parts.
3.Collecting customer feedback, solve the real problems faced by customers.
4.Our company supply spare parts the whole year.
