Factory outlet high efficient Lignite powder press machine
Specifications
Lignite coal ball press machine
1)CE&ISO
2)High briquette ratio
3)Advanced technical
4)Large capacity, low cost
Description of Lignite coal ball press machine
Lignite coal ball press machine can be used to suppress coal , iron ,chrome, coke , aluminum powder, iron , iron oxide skin, toner , toner , slag , gypsum, tailings , sludge , kaolin , activated carbon, coke powder and other end , Powder , waste, waste residues, are widely used in refractory , power plants , metallurgy , chemical , energy , transportation, heating , etc. The shapes can be
square, oval, egg shape, pillow shape, etc. What’s more, the Lignite coal briquette machine can make the coal powder one-time molding, with good hardness, high productivity, for many years have been used in many power plant, coal briquette molding plant, with good effects.
At the beginning, there are two rollers of this briquette machine. Recenely years, to improve roller pressure and increase briquettes hardness, we designed 4 rollers briquette machine(hydraulic type), which adopts molding twice strategy. So the finished briquettes have high hardness, even down from 3 meters height, no shattered.
Working principle: this series briquette machine pass power materials onto two pressure rollers through the reducer, then two rollers rotate to two sides, so materials naturally enter the roller molds, with the rollers rotation. When the material reach the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.
Types we have as follows, if you can share me your raw materials and capacity demands, I will suggest suitable type for you.
Main parameter of Lignite coal ball press machine
Type |
Capacity (t/h) |
Roll Diameter (mm) |
Pressure(t) |
Roll Speed (r/min) |
Power (kw) |
Reducer |
MC-290 |
1.5-2 |
290 |
18-20 |
15-17 |
5.5 |
ZQ290 |
MC -360 |
2.5-3.5 |
360 |
20 |
15-17 |
7.5 |
ZQ360 |
MC -400 |
4-5 |
400 |
22 |
15-17 |
11 |
ZQ400 |
MC-500(1) |
6-8 |
370 |
24 |
15 |
15 |
ZQ500 |
MC-500(2) |
8-10 |
500 |
25 |
15 |
22 |
ZQ650 |
MC -650 |
10-15 |
650 |
30 |
15 |
30 |
ZQ650 |
MC -750 |
15-20 |
750 |
34 |
13 |
30 |
ZQ750 |
MC -850 |
25-30 |
850 |
54 |
13 |
37-45 |
ZQ850 |
MC 1000(1) |
35-40 |
1000 |
60 |
12 |
45-75 |
ZSY-355 |
MC 1000(2) |
35-45 |
1000 |
77-240 |
10 |
75-90 |
ZSY-400 |
|
Shape and size of final briquettes: square, ball egg-shaped, round, oval, and column, strip-type, elliptic type, pillow type and other special shapes by customizing the matching molds. Usurally 20-60mm. | ||||||
The molds
Characteristics of Lignite coal ball press machine
1. The rollers of lignite powder press machine is made from hard materials with good wear resistance, so as to make it long time using.
2 The Lignite coal briquette machine's surface is smooth, both the pressure and density can be adjusted. Its characteristics are stable stamping, high-yield, good performance.
3. The Lignite powder press machine can press many different kinds of tablets by changing moulds.
4. The service life of wearing parts is up to 4000 hours.
5. Good economic and social benefits
6. Safe and stable running, easy operating and maintenance
Shape and size of final product

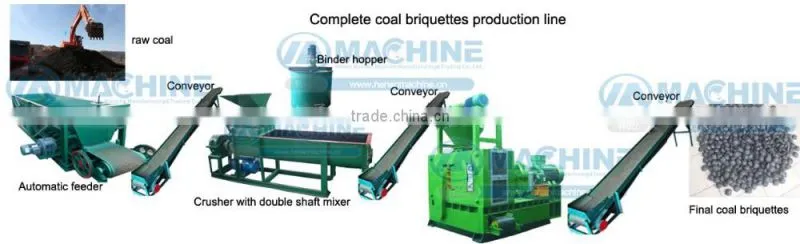

The Production Line of Lignite coal ball press machine
The simple production line of Lignite briquette machine is: Crushing --> Mixing --> Feeding --> Briquetting --> Drying.

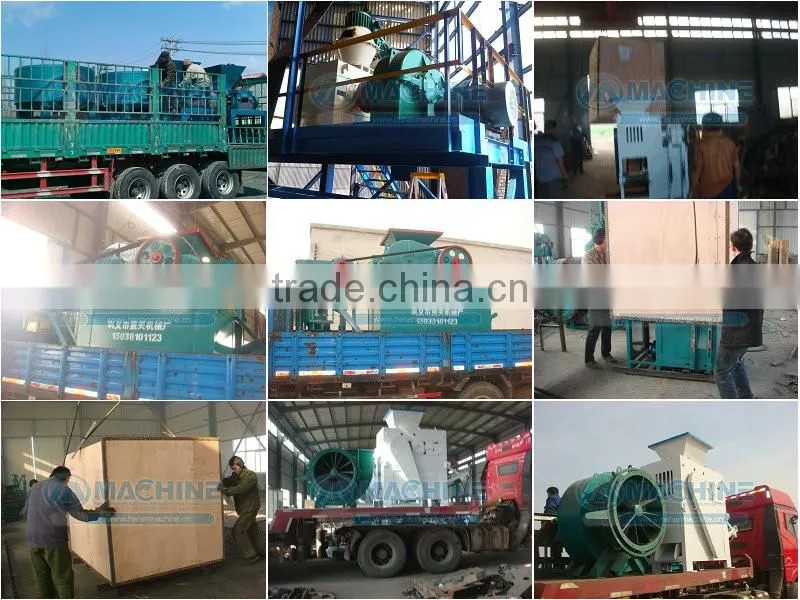

Packaging & Shipping of Lignite coal ball press machine
All our machines will be adjusted and tested before delivery.
Our Services
1.Pre-sale services:
According to your special needs, design and manufacture products for you, provide you with project design, process design, purchase program suitable for your machines and equipment.
2.Sale of services:
Assist you to complete acceptance of the equipment, and the construction program and detailed process
3.After sale service:
the factory sent technicians to teach how to install the equipment, commissioning and training of operators.
