No dust and powder fly around Coke powder briquette machine
Specifications
Coke powder briquette machine
1. High Efficiency
2. CE, ISO9001
3. Professional manufacture
4. Warranty Period: One Year
Description of Coke powder briquette machine
Coke powder briquette machine is a briquette machinery compressed different powder materials, such as coal powder, charcoal powder, iron powder, carbon black powder, coke powder, and other powders into briquettes. The shape can be square, egg, oval, circular shape, column aspects trip, bread shape, Pincushion, etc The aim of the Coke powder ball press machine is to reduce dust, control capacity, return to use, improve the transportation characteristics. For the convenience of the customers, our company provides adhesive, combustion-supporting accelerant for free to the user.
Coking coal ball press machine is energy saving and easy to transport. Also it increases the use of the waste materials and economical benefits.
Main parameter of Coke powder briquette machine
Type |
Capacity (t/h) |
Roll Diameter (mm) |
Pressure(t) |
Roll Speed (r/min) |
Power (kw) |
Reducer |
MC-290 |
1.5-2 |
290 |
18-20 |
15-17 |
5.5 |
ZQ290 |
MC -360 |
2.5-3.5 |
360 |
20 |
15-17 |
7.5 |
ZQ360 |
MC -400 |
4-5 |
400 |
22 |
15-17 |
11 |
ZQ400 |
MC-500(1) |
6-8 |
370 |
24 |
15 |
15 |
ZQ500 |
MC-500(2) |
8-10 |
500 |
25 |
15 |
22 |
ZQ650 |
MC -650 |
10-15 |
650 |
30 |
15 |
30 |
ZQ650 |
MC -750 |
15-20 |
750 |
34 |
13 |
30 |
ZQ750 |
MC -850 |
25-30 |
850 |
54 |
13 |
37-45 |
ZQ850 |
MC 1000(1) |
35-40 |
1000 |
60 |
12 |
45-75 |
ZSY-355 |
MC 1000(2) |
35-45 |
1000 |
77-240 |
10 |
75-90 |
ZSY-400 |
|
Shape and size of final briquettes: square, ball egg-shaped, round, oval, and column, strip-type, elliptic type, pillow type and other special shapes by customizing the matching molds. Usurally 20-60mm. | ||||||
The molds
Characteristics of Coke powder briquette machine
1. Coke pressure ball machine can press many different kinds of mineral powder into pillow or oval shape
2. For different materials and different productio
n information, our technicians will design the special suitable line for you.
3. The products have high density, high strength, high hardness
4. Energy conservation and environmental protection
5. It is applied to refractory industry, electric power plant, metallurgical industry, chemical industry, the energy industry, transportation industry and heating industry
6. The Coking coal ball press machine is easy to operate and maintain

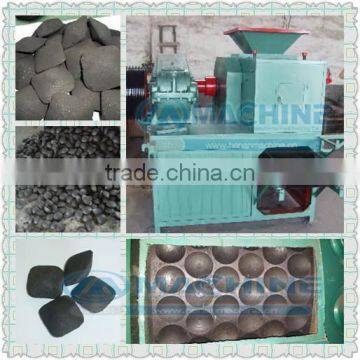

Shape and size of final product
The production line of Coke powder briquette machine
The process is: Crushing --> Mixing with binder --> Feeding --> Briquetting --> Drying.
Packaging & Shipping of Coke powder briquette machine
Our service
Pre-sales service: We can assist you analyze your particular requirements and offer you a single machine, a multi-stage production, or a complete production line.
After-sales service: We can offer you related technical support and guide you to install the products, or send our engineer to your factory for the installation. Also we provide one year warranty for all of our products.
