Modern Technique JULY Manufactory 20 Ton Hot Chamber Die Casting Machine

Modern Technique JULY Manufactory 20 Ton Hot Chamber Die Casting Machine thumbnail-1

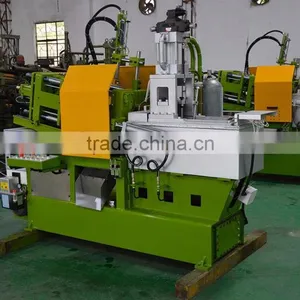

Modern Technique JULY Manufactory 20 Ton Hot Chamber Die Casting Machine thumbnail-2
Modern Technique JULY Manufactory 20 Ton Hot Chamber Die Casting Machine thumbnail-3
Modern Technique JULY Manufactory 20 Ton Hot Chamber Die Casting Machine thumbnail-4
Modern Technique JULY Manufactory 20 Ton Hot Chamber Die Casting Machine thumbnail-5
Modern Technique JULY Manufactory 20 Ton Hot Chamber Die Casting Machine thumbnail-6
Modern Technique JULY Manufactory 20 Ton Hot Chamber Die Casting Machine photo-1

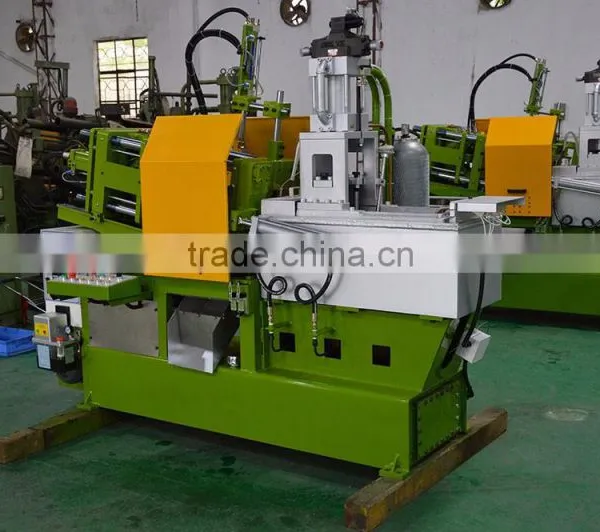

Modern Technique JULY Manufactory 20 Ton Hot Chamber Die Casting Machine photo-2

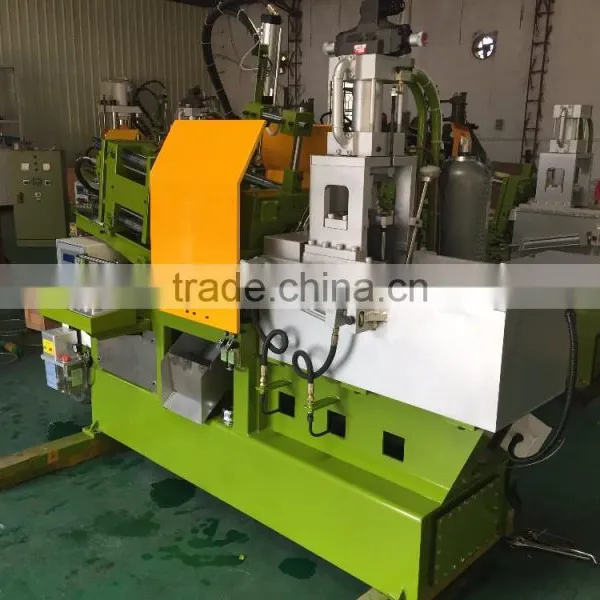

Modern Technique JULY Manufactory 20 Ton Hot Chamber Die Casting Machine photo-3

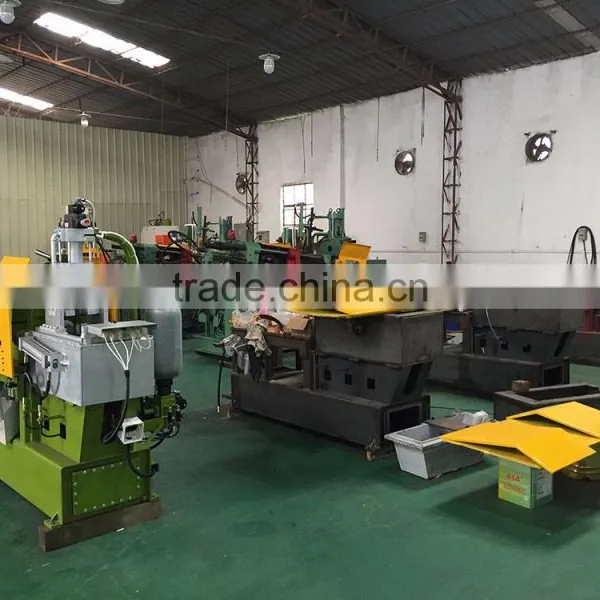

Modern Technique JULY Manufactory 20 Ton Hot Chamber Die Casting Machine photo-4
Modern Technique JULY Manufactory 20 Ton Hot Chamber Die Casting Machine photo-5

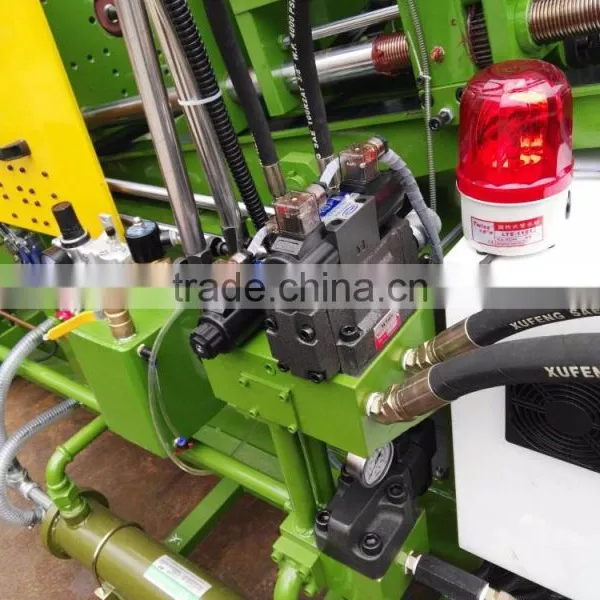

Modern Technique JULY Manufactory 20 Ton Hot Chamber Die Casting Machine photo-6
US$ 12,000 - 140,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
JULY
Contact Supplier Request Quote Chat Now
Dongguan July Hydropneumatic Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Guangdong, China
Brand Name JULY
Model Number JLDH-20
Voltage 220V/380V/415V/440V
Power(W) 14.5kw
Dimension(L*W*H) 2210mm* 1220m*1805mm(lwh)
Weight 1500KG
Certification ISO CE
Warranty 1 Year
After-sales Service Provided Overseas service center available

Never deterred by challenges
Innovative at heart for 31 years
Proudly delivering on our promises






Drawing



     Modern Technique JULY Manufactory 20 Ton Hot Chamber Die Casting MachineModern Technique JULY Manufactory 20 Ton Hot Chamber Die Casting Machine







Specification





Item Unit Model
JLDH-20 JLDH-30 JLDH-38
Locking Force ton 20 30 38
Tie Bar Diameter mm 40 45 55
Space Between Tie Bars(WxH) mm 188×214 227×273 282×293
Mold Thickness(Min/Max) mm 80/250 100/300 100/330
Die Stroke mm 116 140 170
Plunger Diameter mm 38 42 45
Plunger Stroke mm 80 110 130
 Injection Force(MAX) ton 2.8 4.5 5.8
Max Shot Weight(ZN) kg 0.5 0.7 0.9
TRAVERSE STORKE mm 80 110 130
Electric Melting Capacity kg 150 200 250
Ejecting Force ton 2.2 3.4 4
Ejecting Stroke(MAX) mm 40 40 50
Motor Power kw 5.5 5.5 7.5
Electric Furnace Power kw 9 15 20
Operation Pressure kg/cm² 75 90 100
Oil Tank Capacity L 180 200 200
Accumulator L 10 16 16
Machine Size mm L 2210 L 2850 L 3020
W 1220 W 1262 W 11310
H 1805 H 1906 H 1916
Machine Weight ton 1.5 1.8 2.2







Performance Features



  1. Automatical system of adjusting molds, moving quickly, clamping stably, durable and convenient.
  2. Using integrated modular injection, high efficiency, stability and security.
  3. To lock or open a mold by using electronic positioning detection system, the precision is higher.
  4. Clamping molds system, to protect workers and minimize the mold damaged.
  5. Japanese Omron computer controller, efficient and stable, easy to operate flexibly.
  6. The internationally-favorable PLC man-machine interface control system, casting product data storage and monitoring capabilities, timely alarm in case of abnormality, and elimination of large quantities of defective products.
  7. Automatic spray is more reliable and durable, which makes production more efficiently.
  8. Quantitative and regular intelligent lubricating system, which ensures mechanical system to run smoothly and has safety testing function.
  9. Highly integrated hydraulic system energy conservation,low fault occurrence and longer service life.

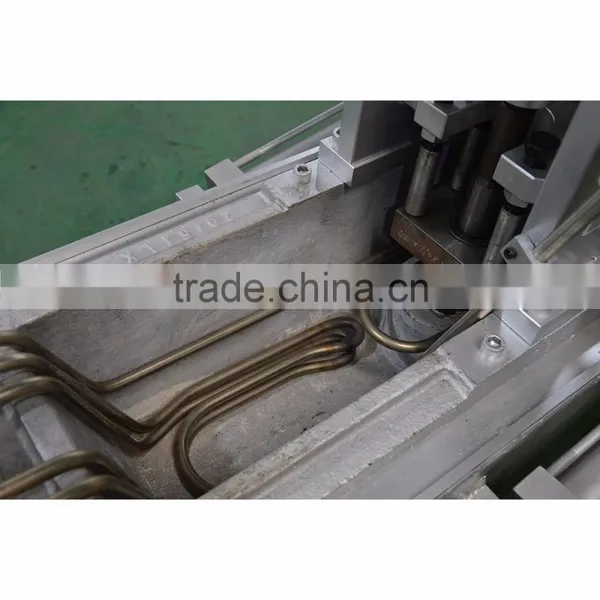

  10. The furnace improved with advanced design and materials is more economical and durable.
  11. Tie Bars are made of high strength low alloy steel, surface plated with hard chrome, more wear-resisting, longer service life.
  12. Hot shot feeding system is made of high quality hot processed steel.

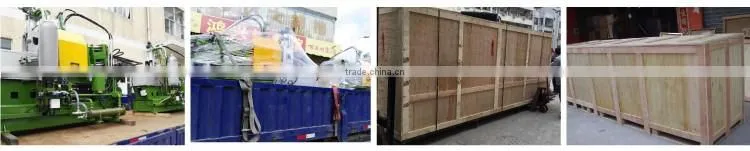

Packing

  Modern Technique JULY Manufactory 20 Ton Hot Chamber Die Casting Machine







Shipping



By sea By air By express
Cheapest but longest option 18~30 days by sea delivery, best for large quantity order. More expensive than sea delivery, But cheaper than express 5~7 days by air to airport. Door to door service,the fastest and most expensive one, 3~6 days by express.



Modern Technique JULY Manufactory 20 Ton Hot Chamber Die Casting Machine

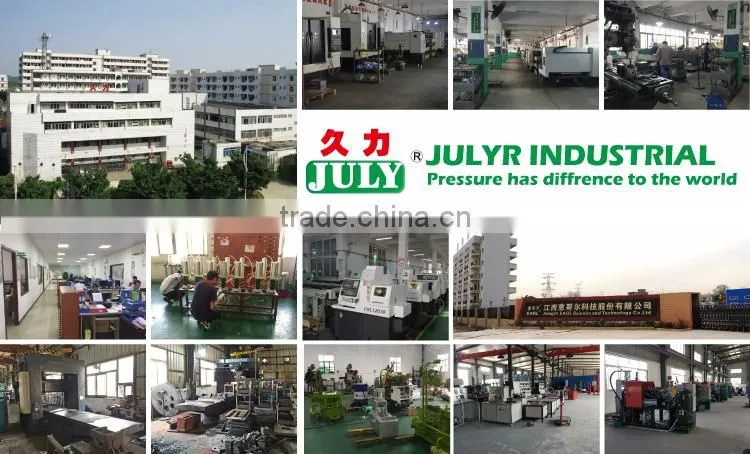

Company Information





Modern Technique JULY Manufactory 20 Ton Hot Chamber Die Casting Machine



Direct Factory

1.Our first factory founded in Taiwan in 1985 .
2.Two our own,factories in China.
3.ISO 9001:2008 Certificate.



R&D team
Efficient and professional R&D team of more than 20 people.



Quality is our culture
There is a set of complete system to recording all material, production and inspection, which helps us to quickly tracking and solve any problems.



Application
Our products and equipment apply to many fields.
Our products are widely recognized and trusted by users.



Certificate
We have been obtaining lots of patents.
We have also won the honorary title of national high -tech and innovative enterprise in China .



Modern Technique JULY Manufactory 20 Ton Hot Chamber Die Casting Machine



Modern Technique JULY Manufactory 20 Ton Hot Chamber Die Casting Machine








Our Advantages





  1. Various style for each products and completely series pneumatic products for you to choose from.
  2. Large stock for fast shipping.
  3. High quality with competitive price
  4. Sample order & small quantity order is ok
  5. Customize according to your special demand.
  6. Provide free products information.
  7. Reliable quality assured and active after-sell service







Cooperation Terms





  • Sample terms: Sample fee is charged and will be refunded when order is placed.
  • Sample time: 3-5 working days.
  • Payment terms:  Full payment in advance.
  • Delivery Time: 3-5 weeks after sample confirmation.







Service Tips





Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve

any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied

within 24 hours except Sunday and Chinese holidays.

If you have any other requirements or questions, welcome to  visit our website    , or just  contact with us directly . Thank you!









FAQ



Q: What products do you supply?

A:  We supply metal cylinders, booster pumps, press machines, riveting machine,    pressure gauge    test    rig,

zinc alloy ingot and the other zinc alloy products etc.



Q: Can you guarantee quality for orders?

A: Sure. We can 100% guarantee quality for all of your orders, as what  we want     is a long-term business

relationship with you, rather than one off business.



Q: Can I have my brand and put my logo on the products?

A: Of course. As long as you would like to, we could do that for you, according to    your designs,   free of charge.



Q: What's your delivery time?

A: That depends. It usually takes 15-30 days for different products and quantity.
