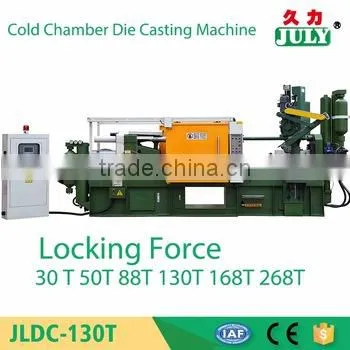

Low Price JULY Manufactory Made Cold Chamber Die Casting Machine With Price

Low Price JULY Manufactory Made Cold Chamber Die Casting Machine With Price thumbnail-1
Low Price JULY Manufactory Made Cold Chamber Die Casting Machine With Price thumbnail-2
Low Price JULY Manufactory Made Cold Chamber Die Casting Machine With Price thumbnail-3
Low Price JULY Manufactory Made Cold Chamber Die Casting Machine With Price photo-1
Low Price JULY Manufactory Made Cold Chamber Die Casting Machine With Price photo-2
Low Price JULY Manufactory Made Cold Chamber Die Casting Machine With Price photo-3
US$ 16,500 - 32,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
JULY
Contact Supplier Request Quote Chat Now
Dongguan July Hydropneumatic Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Guangdong, China
Brand Name JULY
Model Number JLDC-130H
Voltage 220V/380V/415V/440V
Power(W) 36kw
Dimension(L*W*H) 4129mm* 1460mm*2100mm(lwh)
Weight 5ton
Certification ISO CE
Warranty 1 Year
After-sales Service Provided Overseas service center available

Never deterred by challenges
Innovative at heart for 31 years
Proudly delivering on our promises





Drawing











Specification





Item Unit Model
JLDC-30 JLDC-50 JLDC-88 JLDC-130 JLDC-168 JLDC-268H
Locking Force ton 30 50 88 130 168 268
Tie Bar Diameter mm 45 50 60 75 85 100
Space Between Tie Bars(WxH) mm 275×275 310×310 360×360 410×410 450×450 560×560
Mold Thickness(Min/Max) mm 80/300 80/320 127/350 160/450 200/500 200/640
Die Stroke mm 180 220 270 280 380 505
Shot Position mm 0/40 0/50 0/50 0/65 0/80 0/100
Plunger Diameter mm 36/40 40/45 50/55 55/60 60/65 70/75
Plunger Stroke mm 120 130 130 140 160 180
Injection Force(MAX) ton 4.5 6 8.5 9.5 10.5 16
Max Shot Weight(ZN) kg 0.6/0.7 0.8/0.9 1.1/1.3 1.6/1.9 1.8/2.2 3.0/4.0
Injectio Stroke mm 160 190 210 210 220 190
Crucible Capacity kg 250 300 350 350 350 500
Electric Melting Capacity kg 300 300 300 300 300(450) 450
Ejecting Force ton 3.4 4.5 5.5 7.3 8.5 12
Ejecting Stroke(MAX) mm 50 60 60 70 85 125
Motor Power kw 7.5 7.5 11 15 18.5 22
Electric Furnace Power kw 21 21 21 21 21(36) 36
Operation Pressure kg/cm² 125 145 145 145 145 145
Oil Tank Capacity L 180 200 225 250 400 400
Accumulator L 12 16 20 20 27 36
Machine Size mm L 3385 L 3620 L 3808 L 4129 L 4515 L 4915
W 1322 W 1390 W 1437 W 1460 W 1531 W 1690
H 1916 H 1975 H 2055 H 2100 H 2214 H 2145
Machine Weight ton 2.5 3 4 5 6 10









Performance Features



  1. Double proportional control (electric regulation of pressure and flow, with a multi-level pressure and speed control as well as low pressure die close protection functions).
  2. Dual circuit design (air injection and pressure building are separately designed without mutual interference and fault occurrence).
  3. The internationally-favorable PLC man-machine interface control system, casting product data storage and monitoring capabilities, timely alarm in case of abnormality, and elimination of large quantities of defective products.
  4. Unique static and dynamic performance with dual core-pulling devices ensures one-time formation of precise, complicated products.
  5. The injection system uses European draw-bar structure with a variety of choices for center and eccentric injection positions that provide easy adjustment, high precision, and applicability to various complex molds.
  6. Independent quick clamping system and unique hydraulic driven gear-type mold height adjusting mechanism are resistant to impact, providing longer service life and fast production, with an output on a shift increased by over 15%.
  7. Liquid nitrogen super low temperature installation method ensures precision and prolongs service life of toggle parts.
  8. High quality, high rigidity and wear resistant casting platen adopts finite element analysis design that brings even stress distribution, little distortion and pre.cise mold clamping.
  9. Electric central lubrication system provides scheduled, quantitative lubrication and improves service life.
  10. Electrical and hydraulic components are well-known brands made in Europe, Japan and China Taiwan.
  11. Die-casting unit island design provides various interfaces and software packages for a variety of advanced intelligent peripheral devices.



Four-stage (multi-stage) injection system

  1. Max speed> 8M/s, which can effectively control the filling time and casting formation.Unique braking and uniform acceleration injection can effectively prevent flash and allow more flexible injection process.
  2. Min speed 0.1-0.7M/s, which can be precisely controlled to prevent air invasion from causing air trap.
  3. Pressure building time≤15 M/s, which allows to change pressure building speed according to process requirements, strengthening the casting density without causing product distortion.
  4. Dry cycle time is reduced by more than 15%; Oil pump flow increases by more than 20%; Cooler capacity is enhanced by more than 100%; Proportion of conforming finished products rise by 100%; productivity is improved by 20% as compared to the past.









Packing

  Low price JULY Manufactory made cold chamber die casting machine with price







Shipping



By sea By air By express
Cheapest but longest option 18~30 days by sea delivery, best for large quantity order. More expensive than sea delivery, But cheaper than express 5~7 days by air to airport. Door to door service,the fastest and most expensive one, 3~6 days by express.



Low price JULY Manufactory made cold chamber die casting machine with price








Company Information





Low price JULY Manufactory made cold chamber die casting machine with price



Direct Factory

1.Our first factory founded in Taiwan in 1985 .
2.Two our own,factories in China.
3.ISO 9001:2008 Certificate.



R&D team
Efficient and professional R&D team of more than 20 people.



Quality is our culture
There is a set of complete system to recording all material, production and inspection, which helps us to quickly tracking and solve any problems.



Application
Our products and equipment apply to many fields.
Our products are widely recognized and trusted by users.



Certificate
We have been obtaining lots of patents.
We have also won the honorary title of national high -tech and innovative enterprise in China .



Low price JULY Manufactory made cold chamber die casting machine with price



Low price JULY Manufactory made cold chamber die casting machine with price








Our Advantages





  1. Various style for each products and completely series pneumatic products for you to choose from.
  2. Large stock for fast shipping.
  3. High quality with competitive price
  4. Sample order & small quantity order is ok
  5. Customize according to your special demand.
  6. Provide free products information.
  7. Reliable quality assured and active after-sell service







Cooperation Terms





  • Sample terms: Sample fee is charged and will be refunded when order is placed.
  • Sample time: 3-5 working days.
  • Payment terms:  Full payment in advance.
  • Delivery Time: 3-5 weeks after sample confirmation.







Service Tips





Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve

any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied

within 24 hours except Sunday and Chinese holidays.

If you have any other requirements or questions, welcome to  visit our website    , or just  contact with us directly . Thank you!









FAQ



Q: What products do you supply?

A:  We supply metal cylinders, booster pumps, press machines, riveting machine,    pressure gauge    test    rig,

zinc alloy ingot and the other zinc alloy products etc.



Q: Can you guarantee quality for orders?

A: Sure. We can 100% guarantee quality for all of your orders, as what  we want     is a long-term business

relationship with you, rather than one off business.



Q: Can I have my brand and put my logo on the products?

A: Of course. As long as you would like to, we could do that for you, according to    your designs,   free of charge.



Q: What's your delivery time?

A: That depends. It usually takes 15-30 days for different products and quantity.
