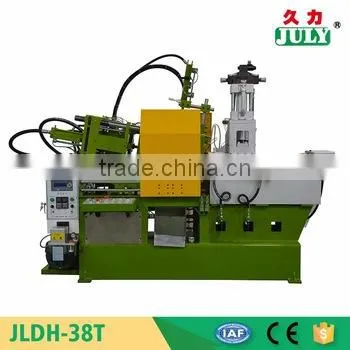

Modern Technique JULY Manufactory 38 ton gravity zamak die casting machine
- 100 Set / Sets per Month
- shenzhen
- T/T Credit Card
-
Supply Wax Injection Machine for the investment casting line
-
supply semi-automatic Dewaxing Autoclave for investment casting industriy
-
New energy copper and aluminum busbar bending machine Copper busbar stamping CNC machine
-
WATER MOLD TEMPERATURE MACHINE
-
OIL TYPE MOLD TEMPERATURE MACHINE
-
WATER-COOLED INDUSTRIAL CHILLER
Product Details
| Condition: | New | Place of Origin: | Guangdong, China | Brand Name: | JULY |
| Model Number: | JLDH-38 | Voltage: | 220V/380V/415V/440V | Power(W): | 27.5kw |
| Dimension(L*W*H): | 3020mm* 1310m*1916mm(lwh) | Weight: | 1500KG | Certification: | ISO CE |
| Warranty: | 1 Year | After-sales Service Provided: | Overseas service center available |
Product Description
Never deterred by challenges
Innovative at heart for 31 years
Proudly delivering on our promises
| Drawing |
|
Specification |
| Item | Unit | Model | ||
| JLDH-20 | JLDH-30 | JLDH-38 | ||
| Locking Force | ton | 20 | 30 | 38 |
| Tie Bar Diameter | mm | 40 | 45 | 55 |
| Space Between Tie Bars(WxH) | mm | 188×214 | 227×273 | 282×293 |
| Mold Thickness(Min/Max) | mm | 80/250 | 100/300 | 100/330 |
| Die Stroke | mm | 116 | 140 | 170 |
| Plunger Diameter | mm | 38 | 42 | 45 |
| Plunger Stroke | mm | 80 | 110 | 130 |
| Injection Force(MAX) | ton | 2.8 | 4.5 | 5.8 |
| Max Shot Weight(ZN) | kg | 0.5 | 0.7 | 0.9 |
| TRAVERSE STORKE | mm | 80 | 110 | 130 |
| Electric Melting Capacity | kg | 150 | 200 | 250 |
| Ejecting Force | ton | 2.2 | 3.4 | 4 |
| Ejecting Stroke(MAX) | mm | 40 | 40 | 50 |
| Motor Power | kw | 5.5 | 5.5 | 7.5 |
| Electric Furnace Power | kw | 9 | 15 | 20 |
| Operation Pressure | kg/cm² | 75 | 90 | 100 |
| Oil Tank Capacity | L | 180 | 200 | 200 |
| Accumulator | L | 10 | 16 | 16 |
| Machine Size | mm | L 2210 | L 2850 | L 3020 |
| W 1220 | W 1262 | W 11310 | ||
| H 1805 | H 1906 | H 1916 | ||
| Machine Weight | ton | 1.5 | 1.8 | 2.2 |
| Performance Features |
|
| Packing |
| Shipping |
| By sea | By air | By express |
| Cheapest but longest option 18~30 days by sea delivery, best for large quantity order. | More expensive than sea delivery, But cheaper than express 5~7 days by air to airport. | Door to door service,the fastest and most expensive one, 3~6 days by express. |
Company Information |
Direct Factory 1.Our first factory founded in Taiwan in 1985 .
R&D team
Quality is our culture | Application
Certificate
|
Our Advantages |
|
Cooperation Terms |
|
Service Tips |
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Sunday and Chinese holidays. |
If you have any other requirements or questions, welcome to visit our website , or just contact with us directly . Thank you! |
| FAQ |
Q: What products do you supply? A: We supply metal cylinders, booster pumps, press machines, riveting machine, pressure gauge test rig, zinc alloy ingot and the other zinc alloy products etc.
Q: Can you guarantee quality for orders? A: Sure. We can 100% guarantee quality for all of your orders, as what we want is a long-term business relationship with you, rather than one off business.
Q: Can I have my brand and put my logo on the products? A: Of course. As long as you would like to, we could do that for you, according to your designs, free of charge.
Q: What's your delivery time? A: That depends. It usually takes 15-30 days for different products and quantity. |
