VSI sand making machine price cheap now/sand machine with CE
Description of sand making machine
HJ Vertical shaft impact crusher is of high power and low consumption. It is widely used in all kinds of mineral, cement, corhart, bauxite, carborundum grain, glass raw material, machine made construction sand, stone stock and all kinds of metallurgy slag, especially carborundum, sintered bauxite, magnesite, and very hard and anticorrosion materials. And sand making machine is more productive than other kind of crushers.
Feature of sand making machine
1.Large handling capacity and High output—50-500t/h, the output of has been stably increased 30% comparing with the traditional equipment under the same motor power.
2.Low wearing parts cost—Perfect impact angle design of the crushing cavity, less friction against the wearing parts. The operation cost reduces 40%
3.Perfect product shape — Cubic products, suitable proportion and adjustable fineness modulus. It fits especially man-made sand and stone reshaping. The effect of making and reshaping sand has been increased 30% compared with the traditional equipment
4.Hydraulic devices are maintained easily—Hydraulic door-opened device make the repair in the crushing cavity easily .Shorten downtime and save effort.
5.Automatic test, safe and reliable—Vibration display and warning device are set. The machine will be warned to stop working when abnormal phenomenon appears.
6.Thinning oil lubricant and automatic maintenance—The original German thinning oil lubricant station, double-pump injection system guarantees the oil supply. The machine will stop automatically when there is no oil and pressure. Water cools the oil and electric motor is heated in winter.
Working principle of sand making machine
Sand making machine equipment lets materials fall into the crusher and are divided into two parts. One part goes into the high-speed-running impeller of the machine, and the other part goes around the impeller. The two parts materials bump and crush fast during the effect of centrifugal force. Then the materials run like swirl, bump and rub to each other again and again. The finished products go out from the bottom of the machine, and users can get the requested products size after screening by vibrating screen.
Raw material of sand making machine
The entire center feeding: Material falls the feed hopper, then enters the high-speed rotary sling wheel from center feeding hole, which is speeded immediately in the sling wheel. The speed can reach several dozens times of the gravity acceleration. Then it is thrown from the sling wheel. First, it is crushed with other rebounded material fell freely from the sling wheel. Then both of them are impacted to the material lining (rock-rock) or strike back block (rock-iron), rebounded and stroke to the top of eddy cavity in the inclined-up direction. Then it moves along deflection-down, and forms a continuous material curtain with the material from the impellers passage. Just like this, the material is stroke, rubbed, crushed twice or more, then is discharged from the down discharging hole.
Model parameter of sand making machine
A series of sand making machine price to be selected, you can choose a suitable models according to your capacity.
| Model | VSI-7611 | VSI-8518 | VSI-9526 | VSI-1140 | ||
| Capacity (t/h) |
Center and Sides Feeding | 120-180 | 200-260 | 300-380 | 450-520 | |
| Center Feeding | 60-90 | 100-130 | 150-190 | 225-260 | ||
| Max. Feeding Size (mm) | Soft Material | 35 | 40 | 45 | 50 | |
| Hard Material | 30 | 35 | 40 | 45 | ||
| Rotation Speed(rpm) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | ||
| Double Motor Power (kw) | 110 | 180 | 264 | 400 | ||
| Overall Dimension L×W×H (mm) |
3700×2150×2100 | 4140×2280×2425 | 4560×2447×2778 | 5000×2700×3300 | ||
| Weight (t) | 7.8 | 10.3 | 16 | 25.6 | ||
| Vibrating Sensor | Inspection Range: 0.1-20mm/s Continual Adjustment | |||||
| Hydraulic Oil Pump | Motor Power of Double Oil Pump(Kw) | 2×0.31kw | ||||
| Overall Dimension L×W×H (mm) |
820×520×1270 | |||||
| Power of Oil Tank Heater | 2KW | |||||

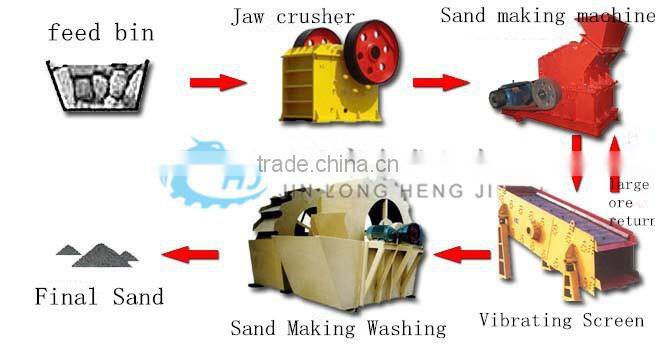

Complete sand making line

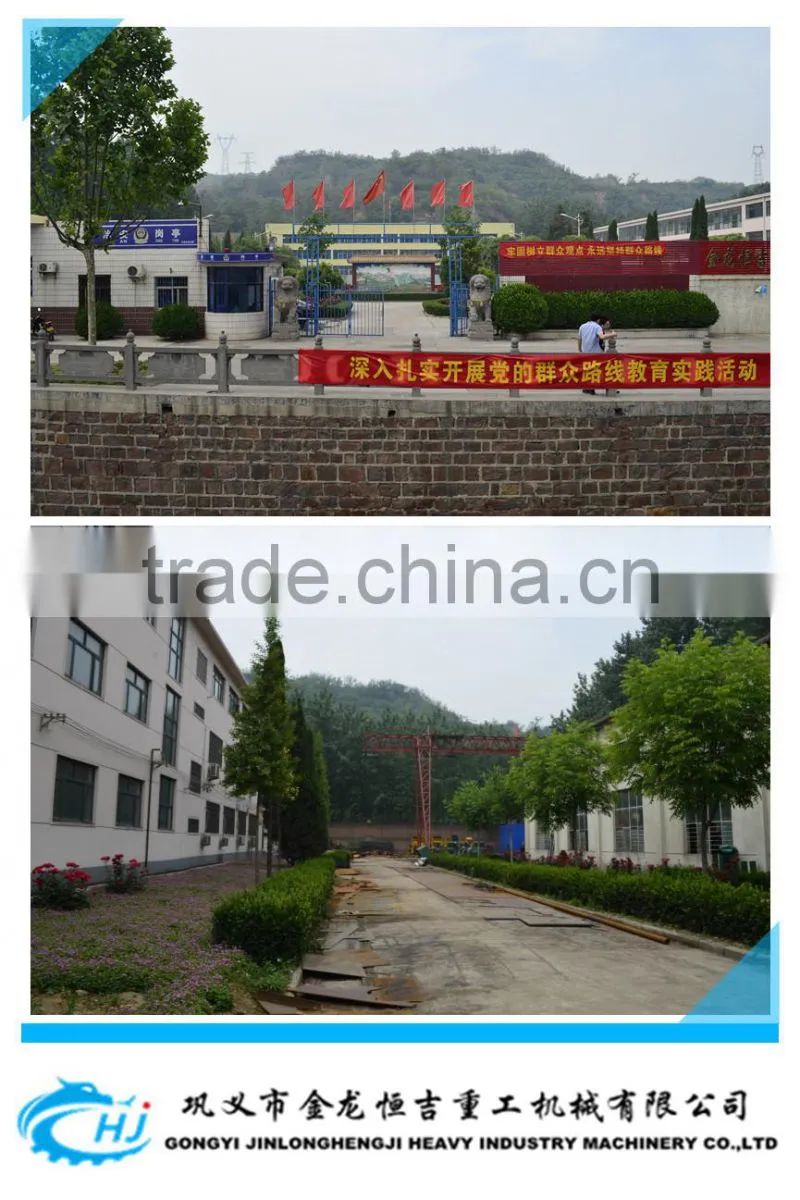

Manufacturing shop of sand making machine
Packaging & Delivery product
Export standard container 20GP OR 40GP,40HQ,the spare parts in wooden case for artificial sand crusher.
Our services about sand making machine
a. Installation and adjustment: Should the installation service is needed, technicist will be provided by supplier for buyer to assist the work such as welding connection of shell body.
b. Quality Guarantee: Three-guarantees of product and warranty period is one year.
c. Technical support is provided from the beginning to the end.
d. Spare parts are serviced for sale in the whole year.
