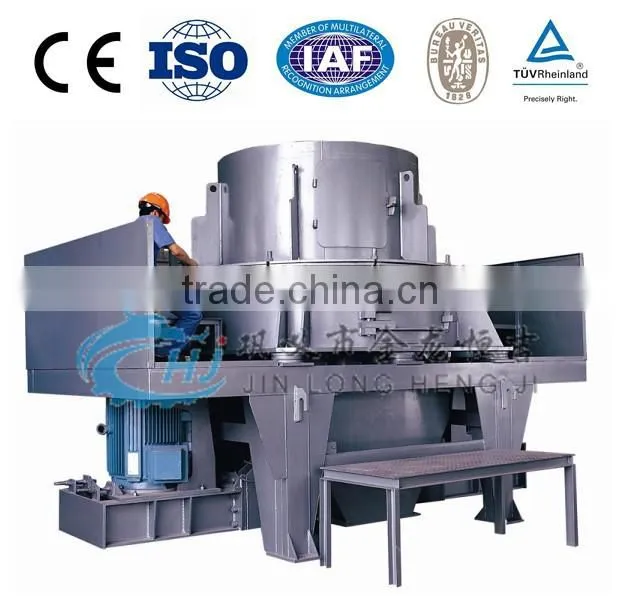

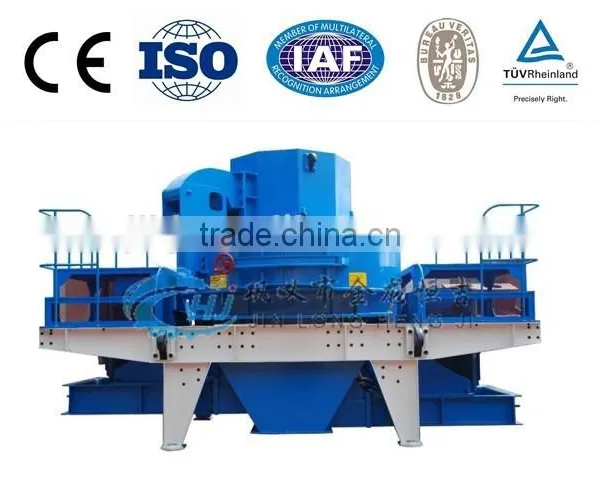

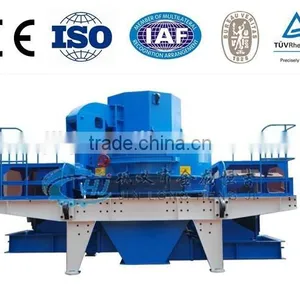

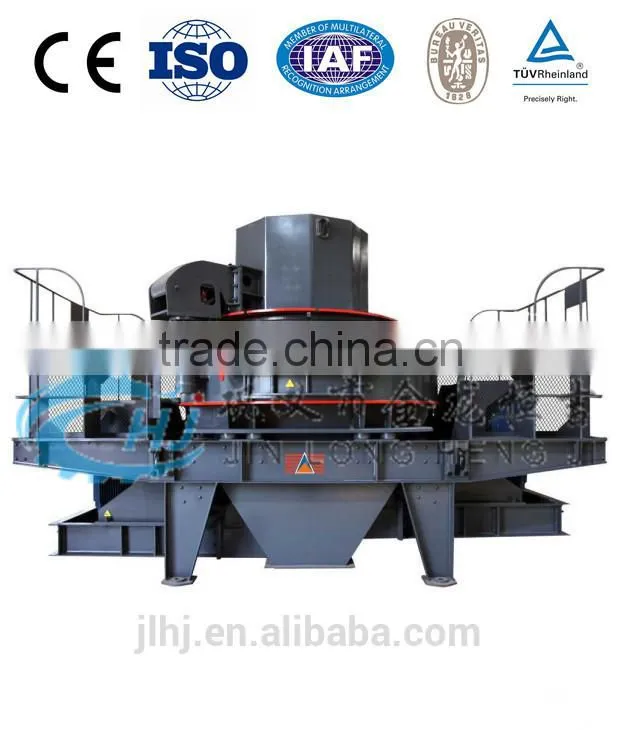

2015 factory supply sand making machine price with CE & ISO approved
Description of sand making machine price
Sand making machine is the latest product of authoritative experts from Germany, connecting with Chinese present working conditions. It’s the high—efficiency sand making equipment with advanced world levels in our country. It is the preferred equipment for artificial sand making and stone reshaping industry. It specially provides the best material for the highway, railway, high-rise buildings, municipal works, hydro-electric dam and concrete mixing station. It ranks first among similar products with its excellent cost performance and reliability.
Feature of sand making machine price
1, the structure is simple, the cost is low.
2, high efficiency and energy saving, crush with high efficiency.
3, finely and coarse grinding function.
4, moisture of material by the impact of small, water content of up to 8%.
5, in crushing hard, very hard material (such as corundum, sintered bauxite etc.).
6, product is a cube, little iron pollution.

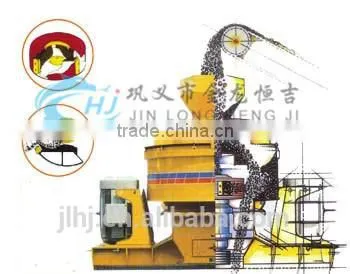

Working principle of sand making machine price
When the material taken into the feed hopper, through the center feeding hole fall into the high-speed rotation of the rotor was sufficiently accelerated and by emission mouth out, first impact with a part of materials of the free falling after rebound, and then impact to the vortex shaped material around the vortex cavity lining (or counter block), is first bounced back to the top after the crushing cavity, partial steering movement, forming a continuous material curtain and launch out from the impeller material impact, finally through the lower part of the discharge port discharge.
Application of sand making machine price
Sand making machine equipment can be used in Pebble,rock( the limestone, granite, basalt, aluminum, andesite, etc.), ore tailings, slags, artificial sand production. can be used in Building aggregate, highway, asphalt concrete and cement aggregate production.As well as stone reshaping production in water conservancy and hydropower engineering field,highway, railway, bridge, passenger line, airport runway, municipal engineering and high-rise buildings.finely process of mining areas. Building materials,mining,metallurgy, chemical industry,cement,abrasive,refractory material, etc.With high abrasive materials resistance and secondary disassembly, desulphuration of thermal power and metallurgy, slag and construction waste. Also can be used in the production of glass,quartz sand and other high purity material.
Model parameter of sand making machine price
there are a series of sand making machine to choose.
| Model | VSI-7611 | VSI-8518 | VSI-9526 | VSI-1140 | ||
| Capacity (t/h) |
Center and Sides Feeding | 120-180 | 200-260 | 300-380 | 450-520 | |
| Center Feeding | 60-90 | 100-130 | 150-190 | 225-260 | ||
| Max. Feeding Size (mm) | Soft Material | 35 | 40 | 45 | 50 | |
| Hard Material | 30 | 35 | 40 | 45 | ||
| Rotation Speed(rpm) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | ||
| Double Motor Power (kw) | 110 | 180 | 264 | 400 | ||
| Overall Dimension L×W×H (mm) |
3700×2150×2100 | 4140×2280×2425 | 4560×2447×2778 | 5000×2700×3300 | ||
| Weight (t) | 7.8 | 10.3 | 16 | 25.6 | ||
| Vibrating Sensor | Inspection Range: 0.1-20mm/s Continual Adjustment | |||||
| Hydraulic Oil Pump | Motor Power of Double Oil Pump(Kw) | 2×0.31kw | ||||
| Overall Dimension L×W×H (mm) |
820×520×1270 | |||||
| Power of Oil Tank Heater | 2KW | |||||

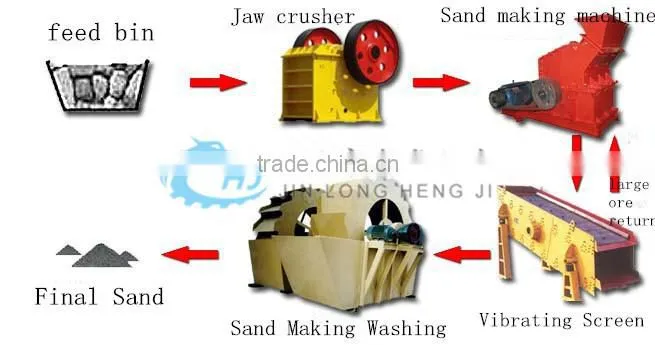

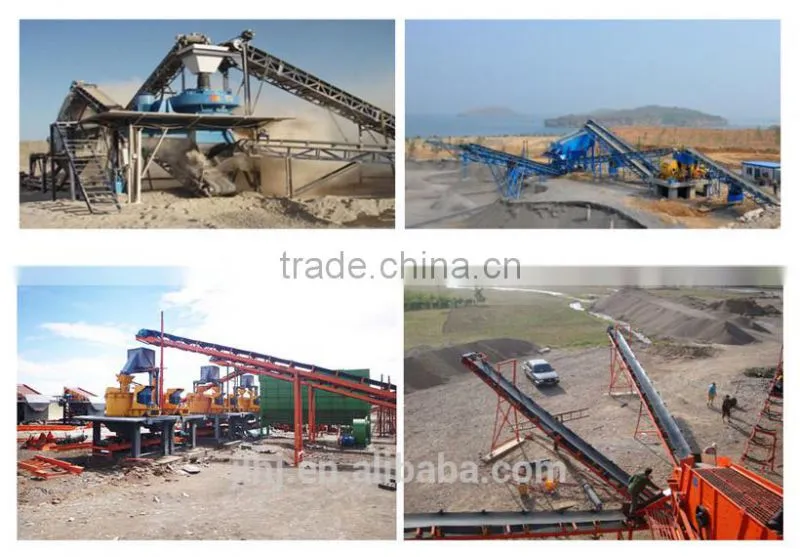

Complete sand making line

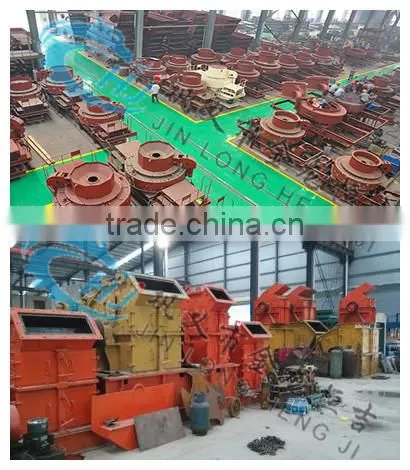

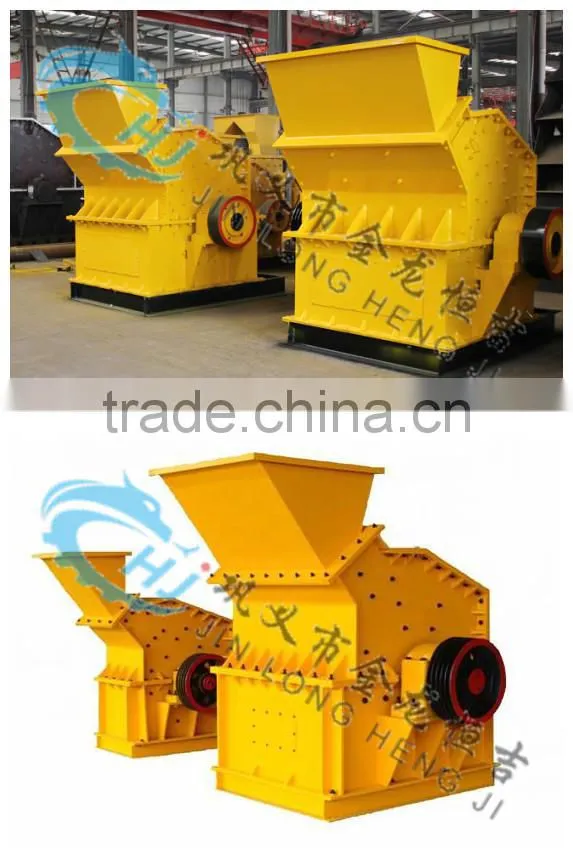

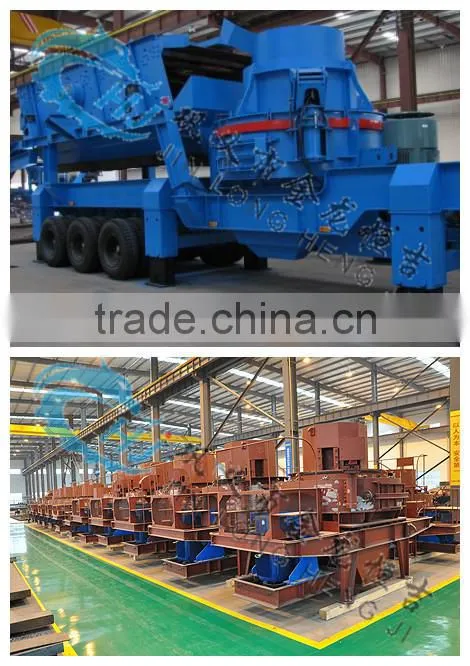

Manufacturing shop of sand making machine price

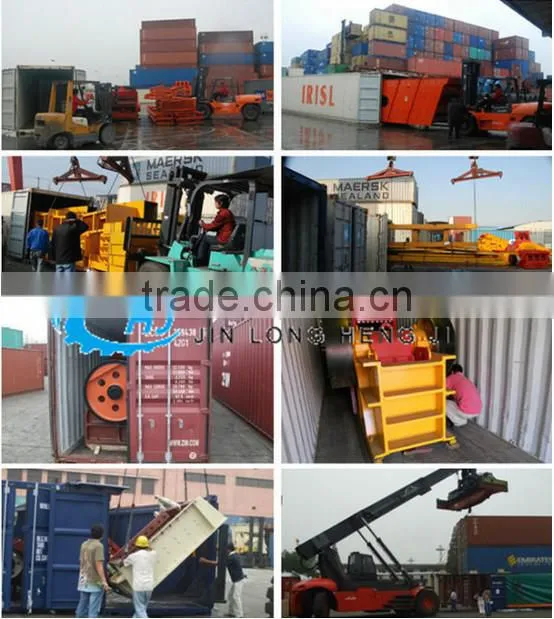

Packaging & Delivery product
Export standard container 20GP OR 40GP,40HQ,the spare parts in wooden case for artificial sand crusher.
Our services about sand making machine price
a. Installation and adjustment: Should the installation service is needed, technicist will be provided by supplier for buyer to assist the work such as welding connection of shell body.
b. Quality Guarantee: Three-guarantees of product and warranty period is one year.
c. Technical support is provided from the beginning to the end.
d. Spare parts are serviced for sale in the whole year.
Company Information
sand making machine price is cheap now,welcome your inquiry. Preferential prices are often born in communication.
If you have any other questions about our products, you may contact me freely.
