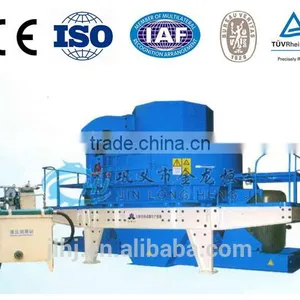

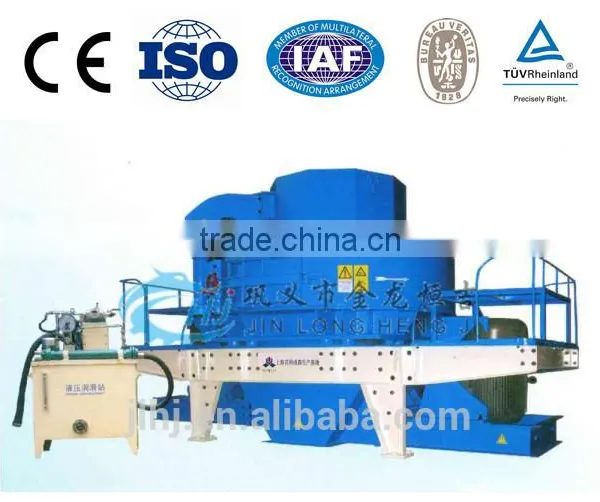

Hot sale of China supplier sand machine with 80-180 t/h
Description of sand machine
Our Sand Machine is especially efficient to crush harder and causticity materials, such as carborundum, emery, and magnesium sand. HengJi Series Sand Machine is one of the most advanced impact crushers nowadays. It introduces high quality roller bearings like Sweden SKF and America TIMKEN, which ensure the smooth running of main unit. Personalized design is used in upper cap, sand making machine is easy and convenient to maintain and replace spare parts. Sand Machine is our sole patent using central feeding & central cascade feeding, which can be changed based on customers' needs.
Feature of sand machine
1.Large handling capacity and High output—50-500t/h, the output of has been stably increased 30% comparing with the traditional equipment under the same motor power.
2.Low wearing parts cost—Perfect impact angle design of the crushing cavity, less friction against the wearing parts. The operation cost reduces 40%
3.Perfect product shape — Cubic products, suitable proportion and adjustable fineness modulus. It fits especially man-made sand and stone reshaping. The effect of making and reshaping sand has been increased 30% compared with the traditional equipment
4.Hydraulic devices are maintained easily—Hydraulic door-opened device make the repair in the crushing cavity easily .Shorten downtime and save effort.
5.Automatic test, safe and reliable—Vibration display and warning device are set. The machine will be warned to stop working when abnormal phenomenon appears.
6.Thinning oil lubricant and automatic maintenance—The original German thinning oil lubricant station, double-pump injection system guarantees the oil supply. The machine will stop automatically when there is no oil and pressure. Water cools the oil and electric motor is heated in winter.
Working principle of sand machine
Sand machine equipment lets materials fall into the crusher and are divided into two parts. One part goes into the high-speed-running impeller of the machine, and the other part goes around the impeller. The two parts materials bump and crush fast during the effect of centrifugal force. Then the materials run like swirl, bump and rub to each other again and again. The finished products go out from the bottom of the machine, and users can get the requested products size after screening by vibrating screen.
Application of sand machine
1, river pebbles, rocks (granite, limestone, andesite, diabase, Xuan Wuyan, etc.), ore tailings, stone chip of artificial sand.
2, construction aggregate, highway road fabric, cushion material, asphalt concrete and cement concrete aggregate production.
3, in the field of water conservancy and Hydropower Engineering, highway, high-speed railway, passenger dedicated line, bridge, airport runway, municipal engineering, high-rise building mechanism of sand production and stone plastic.
4,Grinding PPK finely process of the mining sector, building materials, metallurgy, chemical, mining, cement, refractory material, abrasive etc material breakage.
Model parameter of sand machine
Hengji series sand machine
| Model | VSI-7611 | VSI-8518 | VSI-9526 | VSI-1140 | ||
| Capacity (t/h) |
Center and Sides Feeding | 120-180 | 200-260 | 300-380 | 450-520 | |
| Center Feeding | 60-90 | 100-130 | 150-190 | 225-260 | ||
| Max. Feeding Size (mm) | Soft Material | 35 | 40 | 45 | 50 | |
| Hard Material | 30 | 35 | 40 | 45 | ||
| Rotation Speed(rpm) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | ||
| Double Motor Power (kw) | 110 | 180 | 264 | 400 | ||
| Overall Dimension L×W×H (mm) |
3700×2150×2100 | 4140×2280×2425 | 4560×2447×2778 | 5000×2700×3300 | ||
| Weight (t) | 7.8 | 10.3 | 16 | 25.6 | ||
| Vibrating Sensor | Inspection Range: 0.1-20mm/s Continual Adjustment | |||||
| Hydraulic Oil Pump | Motor Power of Double Oil Pump(Kw) | 2×0.31kw | ||||
| Overall Dimension L×W×H (mm) |
820×520×1270 | |||||
| Power of Oil Tank Heater | 2KW | |||||
Complete sand making production line
Manufacturing shop of sand machine
Our services about sand machine
a. Installation and adjustment: Should the installation service is needed, technicist will be provided by supplier for buyer to assist the work such as welding connection of shell body.
b. Quality Guarantee: Three-guarantees of product and warranty period is one year.
c. Technical support is provided from the beginning to the end.
d. Spare parts are serviced for sale in the whole year.
Sand machine is hot sale.As you konw,preferential prices tend to produce in communication.
