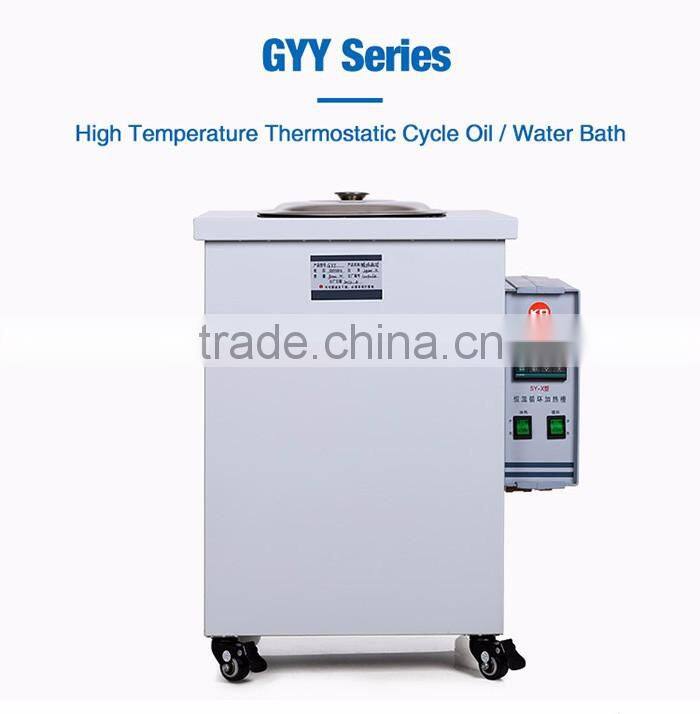

High Temperature Circulating Water /Oil Bath
Brief introduction
High temperature circulating water/oil bath is made of electrostatic spray shell, all stainless steel liner. There has a compact structure, safe and convenient, precise temperature control, the output flow control and energy-saving features. This device is designed and manufactured for supporting double layer glass reactor to provide thermostatic circulation heat sources, and also can be used in any occasions which need thermostatic circulation heat sources.
GYY-10L
♦ High temperature circulating oil bath is widely used for drying, concentration, distillation, dipping in chemical reagents, dipping medicines and biological products. It can also be used to water bath temperature heating and temperature test, is necessary device for biology, genetics, viruses, aquatic products, environmental protection, medicine, health, biochemical laboratory, analysis room, education scientific research.
Technical parameters
Model | GYY-5L | GYY-10L | GYY-20L | GYY-30L | GYY-50L | GYY-80L | GYY-100L | |
Function | Liquid storage volume (L) | 5 | 10 | 20 | 30 | 50 | 80 | 100 |
No-load maximum temperature (℃) | 200 | 200 | 200 | 200 | 200 | 200 | 200 | |
Heating power (kW) | 2.8 | 1.5 | 2 | 2.8 | 2.8 | 3 | ||
Cycling performance | Power | 220V/50HZ 380V/50HZ(50L/80L) | ||||||
Pressure | 1.45Mpa | |||||||
Cycle way | Sealed magnetic pump cycles | |||||||
Flow rate (L/min) | 15-20 | 20-25 | ||||||
Temp. control performance | Temp control range (℃) | Water bath: RT~99; Oil bath: RT~250 | ||||||
Temperature error | ≤2.50% | |||||||
Working condition | Power | 380/220V 50Hz | ||||||
Humidity | 60% | |||||||
HTF viscosity | Below 500C℃·S·t | |||||||
Currents(A) | 10 | |||||||
Optional Configuration | Explosion-proof motors and electrical | |||||||
The number of heating tube | 1 | 2 | 3 | |||||
Liner Size (cm) | 25*22 | 25*25 | 30*30 | 35*30 | 45*35 | 50*45 | 55*50 | |
Overall dimensions (cm) | 60*40*68 | 60*45*70 | 63*48*70 | 70*54*85 | 75*58*85 | 86*68*90 | 90*70*95 | |
Weight (kg) | 35 | 45 | 60 | 60 | 75 | 90 | 105 | |
Packaging
-Plywood or carton packaging;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. is specialized in R & D, production, sales, teaching and chemical biology pharmacy equipment integrated company. Company tenet: keeping reputation, valuing contracts, supplying lower prices and better quality equipments to serve the cause of China's scientific research.
Our company always adheres to the "quality casting brand, professional achieves service"
business philosophy, and the main product is rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cooling chiller), vacuum drying oven, blast drying oven, high-pressure reaction kettle, freeze dryer(lyophilizer), water/oil bath, magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift jack, etc.
1. Can I use oil bath instead of water bath ?
Yes.
2. Which heat transfer oil you recommend ?
320 high temperature heat transfer oil, or according your requirement .
3. Are you equipped with heat transfer oil free ?
Sorry, we can not provide heat transfer oil, because oil is prohibited to delivery.
