Laboratory Universal Water Bath
- 660 Set / Sets per Month
- Shanghai Tianjin Dalian Qingdao Guangzhou Shenzhen etc.
- T/T L/C D/P D/A Credit Card PayPal
- Heat treatment vacuum furnace
- Atmopshere box furnace resistance furnace
- tube furnace facotry sale cheap price
- muffle furnace shanghai factory furnace box furnace
- MD series intelligent microwave digestion device for food industry heavy metal detection
- Laboratory high-purity nitric acid purifier ultra-pure hydrochloric acid purification system low-background hydrofluoric acid preparation system
Product Details
Brand Name: | ZZKD | Model Number: | GYY-10L | Place of Origin: | Henan, China |
Product Description

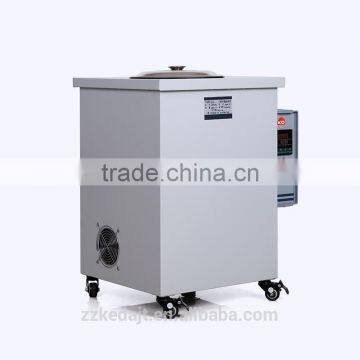

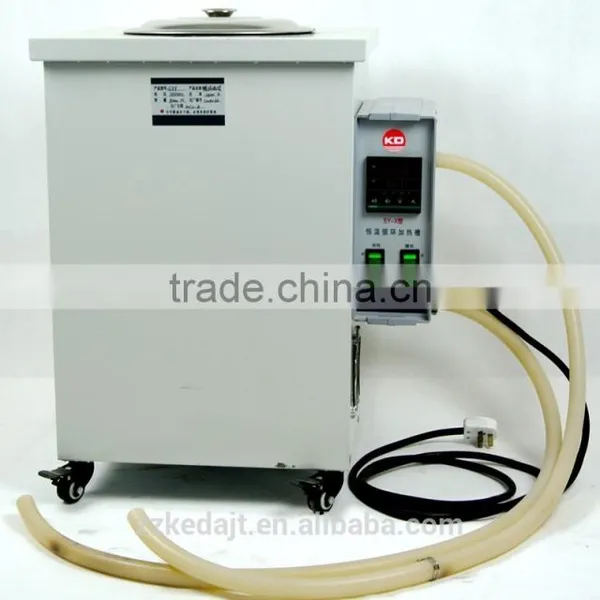

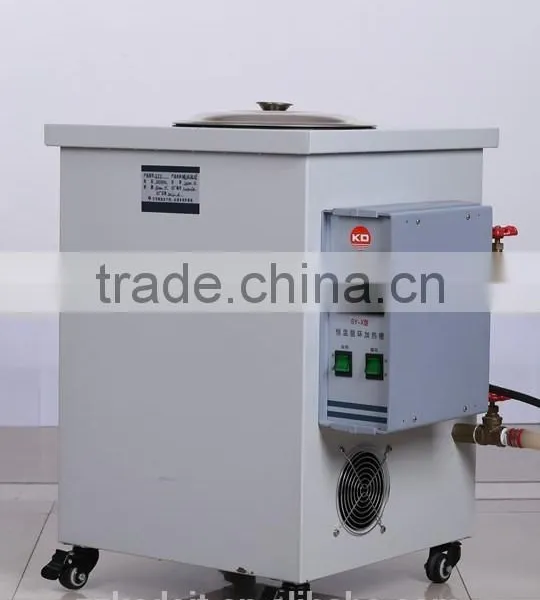

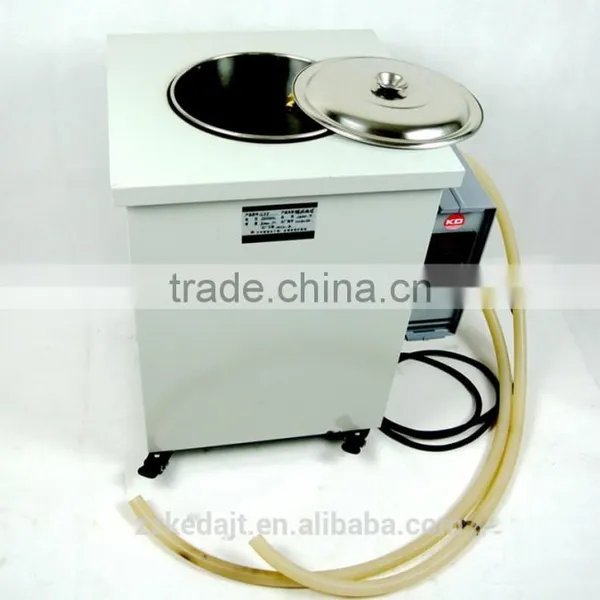

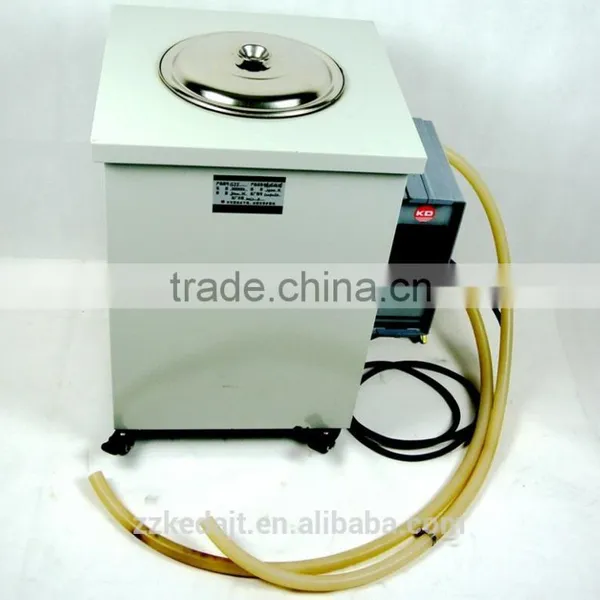

Laboratory Universal Water Bath
Brief introduction
The laboratory universal water bath is made of electrostatic spray shell, all stainless steel liner. There has a compact structure, safe and convenient, precise temperature control, the output flow control and energy saving features. This device is designed and manufactured for supporting double layer glass reactor to provide thermostatic circulation heat sources , and also can be used in any occasions which need thermostatic circulation heat sources.
Features

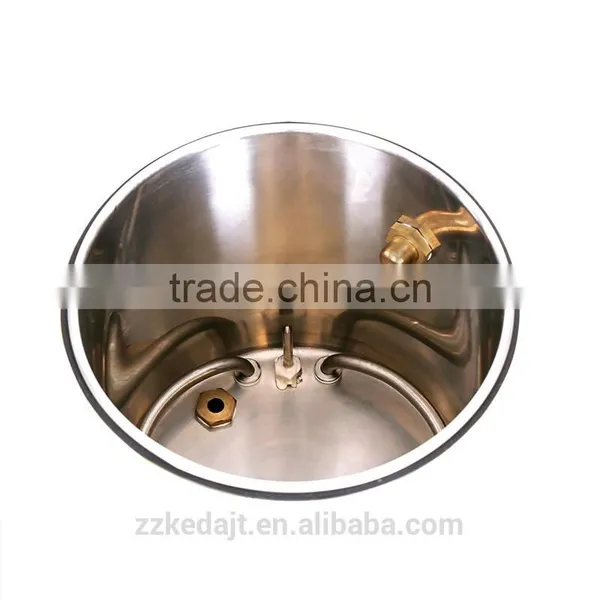

1.This product adopts imported stainless steel plate materials for the tank. Choose high quality plate electrostatic spraying plastics for shell.
2. Electric heating tube will be immersed in the oil, quick heating, high thermal efficiency, power saving, and electronic constant temperature.
3, There are insulating the cotton between shell and liner, excellent heat preservation effect. Available for all kinds of the same high temperature bath pot.
4. High temperature circulating pump adopts full stainless steel magnetic pump, has a stable performance, reliable quality, no leakage, etc.
5. Digital display temperature control, simple operation, eye-catching.
6. The PID control, there have advantage temperature control accuracy and small temperature stamping.
7. The circulatory system is made by stainless steel, copper; anti-rust, anti-corrosion, etc.
8. The solid state relay control circuit, contact-less,halogen-light,increase longevity.
9. Vertical structure, with trundle, mobile convenience.
10.The high performance circulating pump of circulating water/oil bath can provide external loop, constant temperature heat source to the reaction kettle.
Technical parameters
Model | GYY-5L | GYY-10L | GYY-20L | GYY-30L | GYY-50L | GYY-80L | GYY-100L | |
Function | Liquid storage volume (L) | 5 | 10 | 20 | 30 | 50 | 80 | 100 |
No-load maximum temperature(℃) | 200 | 200 | 200 | 200 | 200 | 200 | 200 | |
Heating power (kW) | 2.8 | 1.5 | 2 | 2.8 | 2.8 | 3 | ||
Cycling performance | Power | 220V/50HZ 380V/50HZ(50L/80L) | ||||||
Pressure | 1.45Mpa | |||||||
Cycle way | Sealed magnetic pump cycles | |||||||
Flow rate (L/min) | 15-20 | 20-25 | ||||||
Tempe control performance | Temp control range (℃) | Water bath: RT~99; Oil bath: RT~250 | ||||||
Temperature error | ≤2.50% | |||||||
Working condition | Power | 380/220V 50Hz | ||||||
Humidity | 60% | |||||||
HTF viscosity | Below 500C℃·S·t | |||||||
Currents(A) | 10 | |||||||
Optional Configuration | Explosion-proof motors and electrical | |||||||
The number of heating tube | 1 | 2 | 3 | |||||
Liner Size (cm) | 25*22 | 25*25 | 30*30 | 35*30 | 45*35 | 50*45 | 55*50 | |
Overall dimensions (cm) | 60*40*68 | 60*45*70 | 63*48*70 | 70*54*85 | 75*58*85 | 86*68*90 | 90*70*95 | |
Weight (kg) | 35 | 45 | 60 | 60 | 75 | 90 | 105 | |
Please take note | In order to improve the quality of your use, please use 320 high temperature heat transfer oil. |
♦ High temperature circulating oil bath is widely used for drying, concentration, distillation, dipping in chemical reagents, dipping medicines and biological products. It can also be used to water bath temperature heating and temperature test, is necessary device for biology, genetics, viruses, aquatic products, environmental protection, medicine, health, biochemical laboratory, analysis room, education scientific research.
Packaging
-Wooden packaging;
-Both neutral and customized packaging can be available.
shipping
-We can ship the goods to you by International Express such as DHL,TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
1. ZZKD Instruments provides one year warranty for the products described here.
2. The warranty covers part and manufacturing defects. In the case of a part or manufacturing defect, the device shall be repaired or replaced free of charge under the terms of the warranty.
3. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
4. ZZKD Instruments shall not assume liability for any damages incurred as a result of improper handling.
5. If you encounter problems when using our products, please contact us by telephone or e-mail, we will be ready to provide consulting, maintenance and other services immediately.
zhengzhou keda Machinery and Instrument Equipment Co., Ltd, established in 1981, is a famous manufacturer of Lab equipment located in the central china. We specialized in rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cool chiller), vacuum drying oven, blast drying oven, high-pressure reaction kettle, freeze dryer(lyophilizer), water/oil bath, microwave chemical reactor, magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift table and so on.
1. Can I use oil bath instead of water bath ?
Yes.
2. Which heat transfer oil you recommend ?
320 high temperature heat transfer oil, or according your requirement .
3. Are you equipped with heat transfer oil free ?
Sorry, we can not provide heat transfer oil, because oil is prohibited to delivery.
