Help CenterAutomatic High Oil Yield Used Tyre Recycling Pyrolysis Machine
Related Products
-
China HUAYIN Distillation Plant to Diesel From Waste Lube Oil/black Engine Oil Recycling Plant/oil FiltrationUS$ 40,000 - 70,000MOQ: 1 Set -
Waste Oil Refinery Machine, Scrap Engine Oil Distillation Plant With 24 Hours All-round ServiceUS$ 40,000 - 70,000MOQ: 1 Set
-
Free Pollution Best Selling Continuous Tire Diesel Making EquipmentUS$ 35,000 - 54,000MOQ: 1 Set
-
CE&ISO14001&ISO9001 Used Oil Recycle MachineUS$ 40,000 - 70,000MOQ: 1 Set
-
5/6/8/10 Tons Continuous Waste Tyre Pyrolysis Machine Making Furnace OilUS$ 43,500 - 55,000MOQ: 1 Set
Specifications
1 Raw materials - scrap tyres, waste plastic, waste rubber2.By products
A- Furnace oil
B- Carbon balck
C- Steel wires
Detailed information of products
A. Raw material: scrap tires, waste plastic, waste rubber
B. The total production consumption:
1. Power 20kw per hour for pyrolysis and distillation machine.
2. Cooling circuit water 20 days, only little evaporation.
3. Space for machine: 10*20m (width*length)
4. Workers per shift: 4 workers which can be divided by two groups.
Information about raw material and final products
1. Average oil output rate:
Truck tires 45%
Car tires 40%
2. Final products:
Crude oil 45%-50%
Carbon black 30%
Steel wires 12%-15%
Pyrolysis gas 5%-10%
Product features:
1. No need to crush tires, we can feed the whole tires into the reactor. Save manpower and improve productivity.
2. The two water sealing devices, safety-valve, auto-alarm, vacuum device, pressure gauge and thermometer guarantee the safety.
3. Specialized catalyst improves oil yield and oil quality.
4. Tail gases recycle to the furnace. Save energy and environmental friendly.
5. All cooling waters are circulatory. Great cooling effect.
6. Flue gases are processes by dust removal device. Reach emission standard. No pollution.
Specification of all equipment in this production line

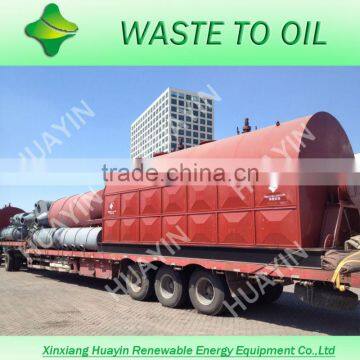

Pyrolysis machine for converting waste tires or plastic into fuel oil and carbon black .
Technical parameter of equipment is as following:
Main Technical Parameter | ||||
No. |
Items |
contents |
||
1 |
Model |
HY-6T |
HY-8T |
HY-10T |
2 |
Complete tyre feeding capacity |
6T |
8T |
10T |
3 |
Cracked tyre feeding capacity |
9-10T |
13-14T |
15-16T |
4 |
Raw Material |
Tire/Plastic/Rubber |
Tire/Plastic/Rubber |
Tire/Plastic/Rubber |
5 |
Reactor Size |
D2200mm*L6000mm |
D2600mm*L6600mm |
D2800mm*L6000mm |
6 |
Diameter Size of Feeding |
720mm/1200mm |
720mm/1200mm |
720mm/1200mm |
7 |
Reactor material |
Q245R /Q345R boiler plate |
Q245R /Q345R boiler plate |
Q245R /Q345R boiler plate |
8 |
Reactor Thickness |
12/14/16/18/20mm (ordered by requirement) |
12/14/16/18/20mm (ordered by requirement) |
12/14/16/18/20mm (ordered by requirement) |
9 |
24-hour Capacity |
6 ton |
8 ton |
10 ton |
10 |
Oil yield |
2.7 ton |
3.6 ton |
4.5 ton |
11 |
Rotate Speed of Reactor |
0.8 turn/minute |
0.8 turn/minute |
0.8 turn/minute |
12 |
Main Motor Power |
3 KW |
3 KW |
3 KW |
13 |
Driving Method |
Gear drive |
Gear drive |
Gear drive |
14 |
Cooling Area of Condenser |
67.231sqm (ordered by requirement) |
67.231sqm (ordered by requirement) |
67.231sqm (ordered by requirement) |
15 |
Cooling mode |
Water Cooling |
Water Cooling |
Water Cooling |
16 |
Operating Pressure |
Normal |
Normal |
Normal |
17 |
Weight |
27 ton |
34 ton |
39 ton |
18 |
Working Form |
continuous feeding, batch producing |
continuous feeding, batch producing |
continuous feeding, batch producing |
19 |
Noise (db) |
≤75 |
≤75 |
≤75 |
20 |
Delivery Time |
7-10 Days |
7-10 Days |
7-10 Days |
