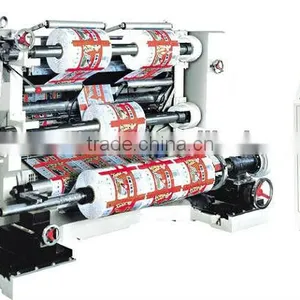

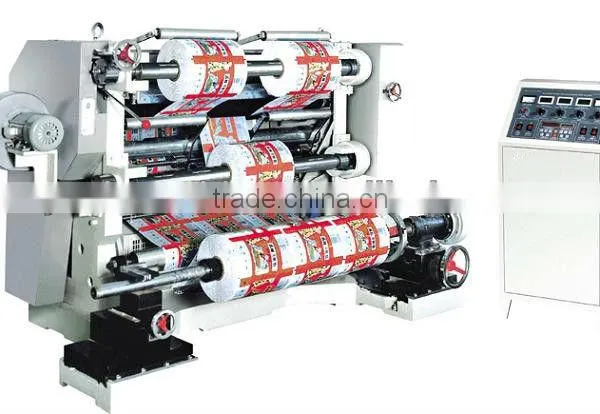

Automatic Aluminum Foil Paper Slitter Rewinder Machine
- 30 Set / Sets per Month
- Ningbo or Shanghai
- T/T
You May Like
-
Fax Paper Thermal Paper Receipt Paper Roll Slitting Machine
-
Computer Controlled Automatic Plastic Roll Separating And Cutting Machine
-
High Speed Micro Computer Jumbo Roll Slitter Rewinder For Paper,Tape,PVC,PET,OPP
-
Semi Automatic Flat Die Creasing Machine
-
One Roll A4 Paper Sheeting Cutter Machine
-
Fully Automatic UV Varnish Laminating Machine/Automatic UV Sheet Varnish Machine
Product Details
| Condition | New | Type | Slitting Rewinder | |
| Computerized | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | Tonghe | Model Number | TVS/700/1100/1300 | |
| Voltage | 380V | Power(W) | 3-4KW | |
| Dimension(L*W*H) | It depends | Weight | See table below | |
| Certification | ISO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Suitable for slitting & rewinding such roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil laminated with film & paper,etcFeatures
1. Vertical striping model;
2. Independent microcomputer control screen making easy operation.
3. Magnetic powder control for tension of reeling and unreeling.
4. Auto metering with material running, auto photoelectric error correction for unreeling.
5. Equipped with side waste scrap air-blowing sending air-blowing sending or reeling devices.
6. Dual-aire swelling shaft reeling, smooth and level end face splitting.
7. Disc knife accessories must be selected for splitting aluminum foil and paper.
Model No. | TVS/700 | TVS/1100 | TVS/1300 |
Max.Width of Unwinding material | 700mm | 1100MM | 1300mm |
Max.diameter of Unwinding Roll | Φ600mm | Φ600mm | Φ600mm |
Width of Rewinding Roll | 30-700mm | 30-1100mm | 30-1300mm |
Speed of Slitting and Rewinding | 5-160m/min. | 5-160m/min. | 5-160m/min. |
Motor Power | 2.7KW | 3KW | 3.5KW |
Weight of Machine | 1200kg | 1500kg | 1800kg |
Machine Dimension | 200*111*140cm | 240*111*140cm | 260*111*140cm |
