Specifications

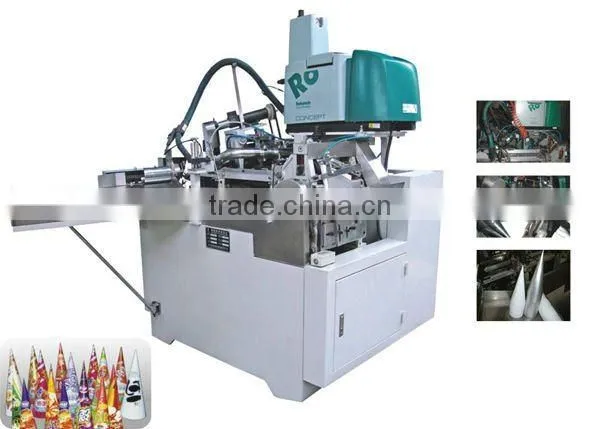

Automatic Ice Cream Cone Sleeve Machine1.Max.speed:190 pcs/min.
2.Can count automatically
3.Convenient maintenance
A sucking nozzle will suck the paper, which has been printed previously, from the paper bracket to the transportation chain, and then transport it to the forming mould. During the transportation, the paper will be spread with thermosol. The position, length and quantity of thermosol can be adjusted during the production process without stopping the machine. After the formation, the paper spread with glue will be automatically blown to be transported to the collection machine. The pile and counting are automatic, and the paper will be carried out according to the pre-arranged pile numbers without stopping the machine.
CHARACTERISTICS
1).High efficiency, the maximum speed is 190 pcs/minute, with automatic counting of the finished product.
2).Small volume, occupying little space, with convenient installation.
3).Small load power of the machine, which is about 5.5 KW; speed regulation by frequency vibration, with high precision.
4).The transmission system adopts box type structure,with good rigidity and stability and high precision;oil circulation lubrication.
5).High automatic degree, simple operation and regulation, with convenient maintenance.
MAIN TECHNICAL PARAMETERS
Production capacity | The maximum speed can reach 190 PCS/minute |
Required paper | The ordinary paper, composite aluminum foil paper, no |
The parts for selection | 1. The control of thermosol spreading process 2. Air compressor |
Total power | 380v 50HZ 5.5KW |
Height & Angle | 70-255mm & 17°~ 28° |
Overall dimensions &Weight | 1980*1710* 1800mm & 1200 kg |
Main Configuration | 1).Glue Box:is adopted “Robatech ” from Switzerland 2).Electromagnetic valve: SMC 3).Transducer: DELTA 4).Counter: OMRON 5).Switch: OMRON 6).Relay: OMRON 7).Photocell eye: SCHNEIDER 8).AC contactor :SCHNEIDER |
