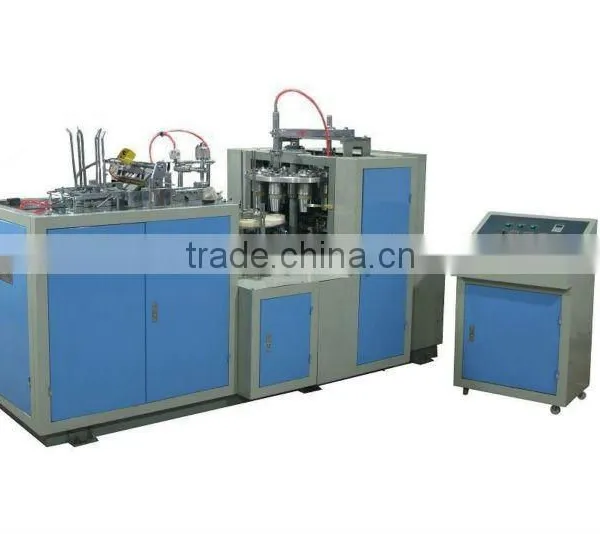

Automatic Single PE Coated Paper Cup Forming Machine
- 30 Set / Sets per Month
- Ningbo or Shanghai
- T/T
- Semi Automatic Packing Line , Toilet Roll Packaging Machine Price
- Semi Automatic Packing Line , Toilet Roll Tissue Packaging Machine
- Semi Automatic Tissue Paper Packing Machine , Tissue Rolls Packing Machine
- Tissue Rolls Packing Machine , Automatic Packing Machine
- Tissue Roll Packing Machine , Semi Automatic Toilet Roll Packing Machine
- Manual Cutter for Cutting Paper , Paper Cutting Machine Small Size
Product Details
Condition: | New | Product Type: | Paper Cup Machine | Processing Type: | Paper Folding Machine |
Place of Origin: | Zhejiang, China | Brand Name: | Tonghe | Model Number: | ZBJ-S12 |
Voltage: | 220/380V | Power(W): | 5KW | Dimension(L*W*H): | 2800*1320*1800mm |
Weight: | 1800KG | Certification: | CE | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
It has the function of photocell detection, failure alarm, counter and the advantages of humanism design, safer operation.ZBJ-S12 Paper Cup Forming Machine is an automatic machine with multi-working station, which has the function of photocell detection, failure alarm, counter and the advantages of humanism design, safer operation and easier maintance.
It produces one-side-PE-film-coated paper cups after running a whole procedure of automatic pre-printed fan-shape-paper feeding, cup-side-body sealing(heater), silicone-oil lubricating(for top curling), bottom punching, bottom pre-heating and pre-folding, main heating, bottom knurling, top curling and cup discharging.
It is an ideal equipment of making hot drinks (tea, coffee, milk) disposable paper cups and ice-cream paper cups etc.
Technical Specification of ZBJ-S12 Paper Cup Machine
1.Paper Cup Size : 2.5--12oz, height cup to 120 mm (mold exchangeable);
2.Raw Material : One-side PE(polyethylene) film coated/laminated paper;
3.Suitable paper weight : 135gsm--320 gsm (Recommend 170--280 gsm);
4.Rated Productivity : 40---50 pcs / minute;
5.Total Power : 5 KW;
6.Power Source : 220V/380V 50Hz or other required;
7.N.W :1600KGS
8.Total Weight : 1800 Kgs;
9.Packaging Size (L*W*H) : 2800*1320*1800 mm;
10.Electric Control Box Size : 730*600*1300 mm
