Product Name: AC-DC power modules AC24V turn DC12V3A DC-DC power converter 24V power switch 12V2A1A
Key words; power converter 24V power switch 12V2A1A
Product Type: KREE-AC24-DC12-36W
Product details:
Power Model: KREE-AC24-DC12-36W
Parameters:
Input voltage: AC: 24V (wide voltage 16V-28V) or DC (wide voltage 16V-40V)
Output Voltage: DC: 12V
Output Current: 3A peak current MAX: 5A
Output Power: 36W
Efficient conversion rate: more than 96% Ripple: 80MV

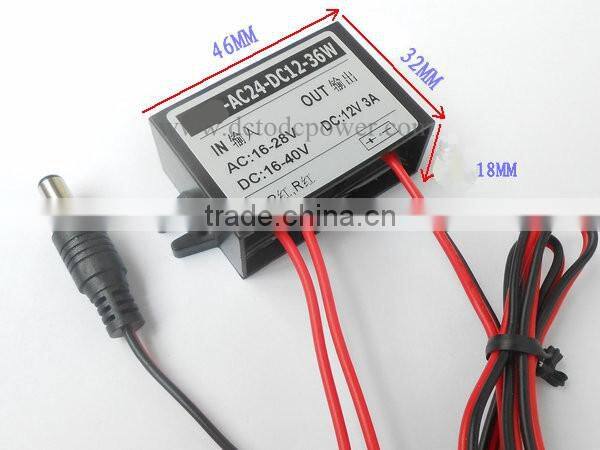

Working temperature: -40 ~ + 85 Volume Specifications: 46 * 32 * 18MM (L * W * H)
Weight: 0.055KG / a
Product Description;
1, first you have to remember, this is a (AC or DC input may be) of the power conversion module (input, regardless of polarity), so the inputs are two red lines.
2, Output: DC head inside positive outside negative. Outer 5.5mm, the inner core 2.1mm, 20 red, black and copper wire, wire length 60CM (include DC head) pro Note contrast.
3, the input AC: between the voltage range AC16V-28V. DC input: between the voltage range DC16V-40V, can be accurately output 12V. Voltage stability.
4, section baby can work long 3A peak 5A, which means you can load device 30W or less long-term stability without adding any heat sink. Performance is very stable, full power enough.
5, all components are imported, synchronous rectification, the plastic casing, waterproof, shock, moisture and dust.
6. Enter the high-voltage transient protection, output overcurrent protection, output short circuit protection, chip overheating protection.
7. Applications (Common Application): Surveillance cameras (CCD Camera); monitoring equipment (CCTV System); router (Gateway); any other applications to 12V electronic equipment, etc. ... ect
