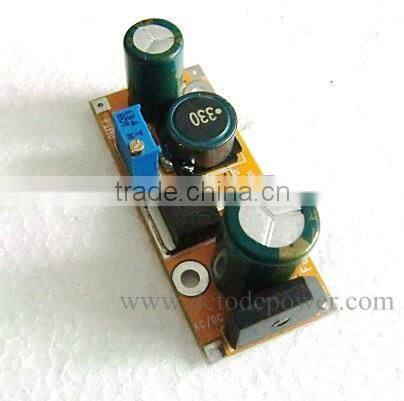

AC24V turn DC12VDC-DC 3A adjustable electric super LM2596DC-DC buck converter power supply module

Product Name: AC24V turn DC12VDC-DC 3A adjustable electric super LM2596DC-DC buck converter power supply module

Keywords: buck converter power supply module

Product details:
Input voltage: 2.5-27V AC or DC 3-40V (input regardless of sign)

Output voltage: DC1.5-27V adjustable

Output Current: 3A MAX

The following output 5V 2A proposed long-term work in the following. 6-9V recommend the following long-term job 9.2-15V 1.5A 1A recommend long-term work (without heat environment, ambient temperature of 30 degrees Celsius, other work Advisory Service)

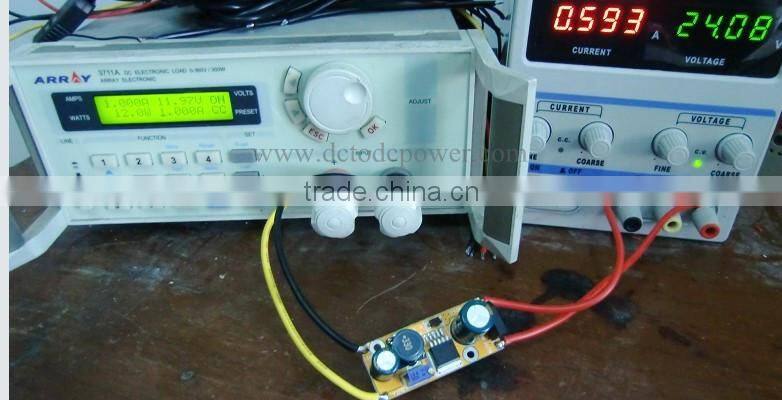

? XL2596 super LM2596 24V rectifier turn after adding 12V 1A, there are about 85% efficiency (Test hundred percent original) 12 / (0.59 * 24) = 84.75%
Switching frequency: 150KHz

Operating temperature: Industrial grade (-40  to + 85 )

Full temperature: 40 ℃

Load regulation: ± 0.5%

Voltage Regulation: ± 0.5%
