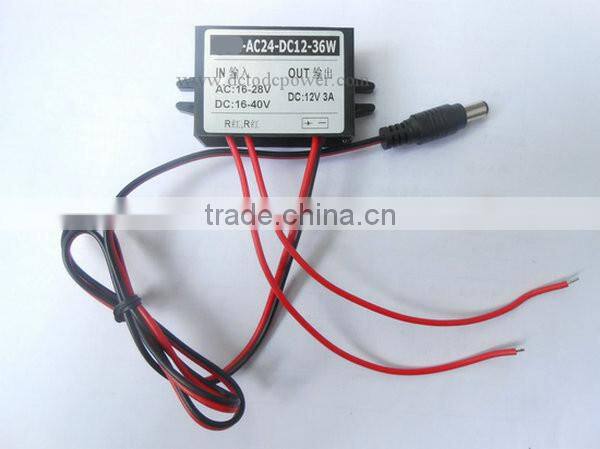

AC24V Turn DC12V3A Power Converter AC-DC, 24V Power Switch 12V2A Security Camera Surveillance

Product Name: AC24V turn DC12V3A power converter AC-DC, 24V power switch 12V2A security camera surveillance

Keywords: security camera monitor power

Product Type: KREE-AC24-DC12-36W

Product Details
Power Model: KREE-AC24-DC12-36W
Parameters Table
Input voltage: AC: 24V (wide voltage 16V-28V) or DC (wide voltage 16V-40V)

Output Voltage: DC: 12V, the output current: 3A 36W

Current peak MAX: 5A moment

Efficient conversion rate: more than 96%

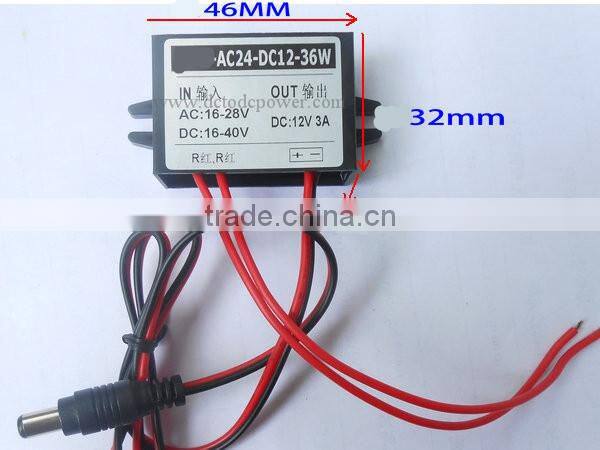

Volume Specifications: 46 * 32 * 18MM (L * W * H)

Weight: 0.055KG / a

Imports of the main components, enough power, stable performance,

Shock, moisture, dust

Product Description
Welding wire mode, the connection as follows:

Input: two red, regardless of the positive and negative

Output: positive, negative internal DC head outside. Outer 5.5mm, 2.1mm inner core

20 red and black and copper wire, wire length 60CM (include DC head)

Protection:

Enter the high-voltage transient protection, output overcurrent protection, output short circuit protection, thermal protection chip.

Ripple: 80MV, working temperature: -40 ℃ ~ + 85 ℃ (Industrial Temperature)

Sale: waterproof power supply, normal use, January replacement.

Penny, for a half, we use imported components, synchronous rectification, we must compare the performance parameters to compare prices at relatively the same time, there are a lot of publicity 3A power only real long-term work 2A below the market, we have this 12V3A power supply is absolutely enough money propaganda output power, which is the long-term output 3A, 2A, or if you use only 1A, but did not question it. Quality after-sale protection!

Fix a little common sense: Many customers are concerned with 3A power supply can not be used in the following devices 3A, will burn it? I'm here to tell you, do not burn, can be used, this power is our constant voltage output, the output current is adaptive, section 3A power supply should not exceed the current long-term work on the line. No-load current is very small, your device needs 3A on the 3A, 2A is a need 2A, 1A on the need 1A, that is, your device is 0.5A, 1A, 1.5A, 2A, 3A can be used. Instead, your device then you need to choose the smaller the current power supply actually a little big more secure. Such power has margin, no heat, more secure, more reliable! I think I have said enough to understand, I hope you buy!
