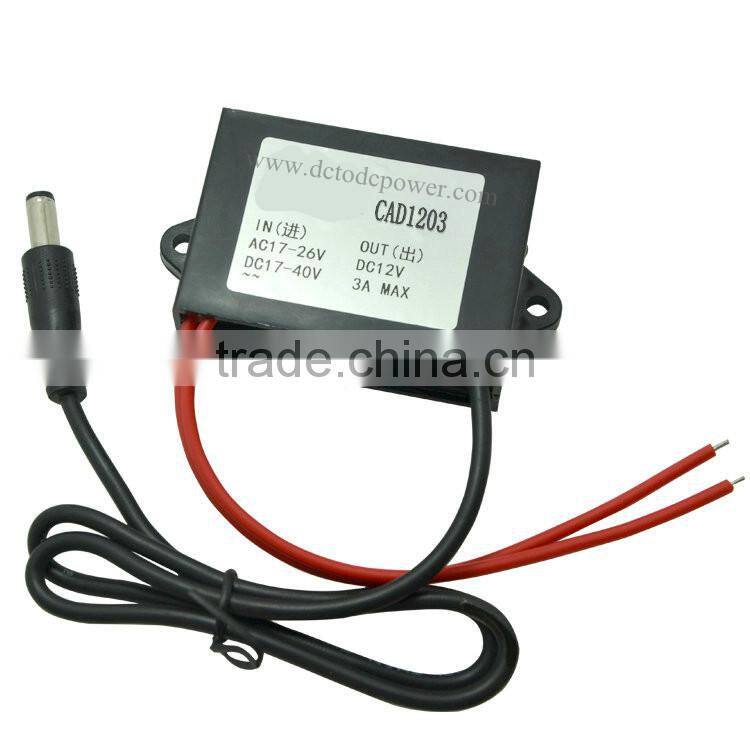

AC24V DC12V3A Turn the Camera Power Adapter AC to DC Transformer Modules Security Monitoring Equipment
Product Name: AC24V DC12V3A turn the camera power adapter AC to DC transformer modules security monitoring equipment
Keywords: AC to DC security monitoring equipment
Product Type: KREE-CAD1203
Whether with USB: No
Product details:
Input Voltage (Input Voltage): 17-26VAC AC input or DC17-40V
Regardless of the positive and negative input
Output voltage (Output Voltage): 12V DC DC
Output Interface: outer 5.5mm, 2.1mm inner core
Output Polarity: positive with
Output current (Output Current): 3A Max
Total Power (Total Power): 36 Watt Watt
The output ripple (Output Noise): <= 100mV
Efficiency (Efficiency Rate):> = 80%
Operating ambient temperature (Environment Operation temperature): -20-60 degrees Celsius (Culsius degree)
The average working life (MTBF):> 20000 (Hour)
Protection (Protection function):
1. Output short circuit protection (Short circuit protect);
2. Output overcurrent protection (Over current protect);
3. Output overload protection (Over load protect)

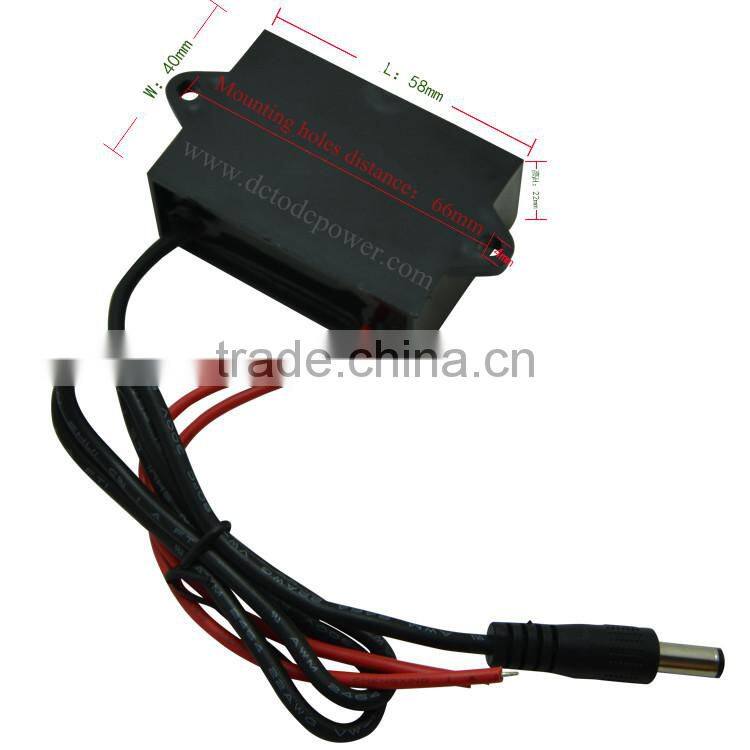

Volume: L58 * W40 * H22MM weighs about: 100G
Applications (Common Application): Surveillance cameras (CCD Camera); monitoring equipment (CCTV System); router (Gateway); any other applications to 12V electronic equipment, etc. ... ect
