AC-DC 24V turn 12V5A monitor power AC24V turn DC12V3A 4A 5A buck power converter

Product Name: AC-DC 24V turn 12V5A monitor power AC24V turn DC12V3A 4A 5A buck power converter

Keywords: buck power converter

Product Type: KREE-AC24-DC12-60W
Product details:
Power Model: KREE-AC24-DC12-60W
1, foot power, high conversion rate: more than 96%
2, small size: 58 * 40.5 * 22MM (L * W * H) Weight Approximately 88 g / month
3, the main components of imports, stable performance, shock, dust
4, welding wire mode, the connection as follows:
5. Input: two red, regardless of the positive and negative
6, there are two packages, to buy based on package selection

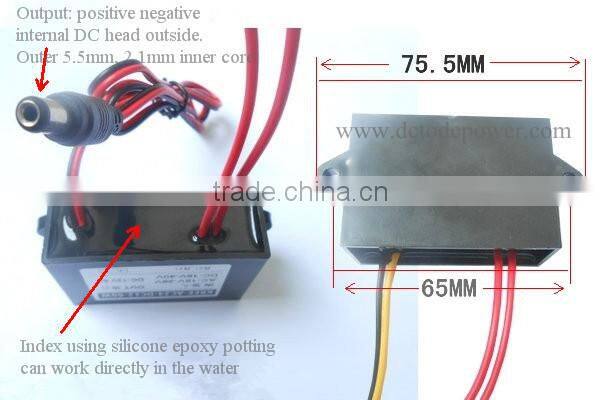

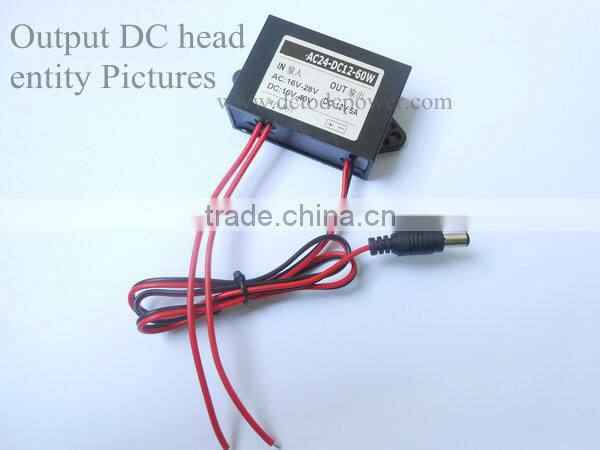

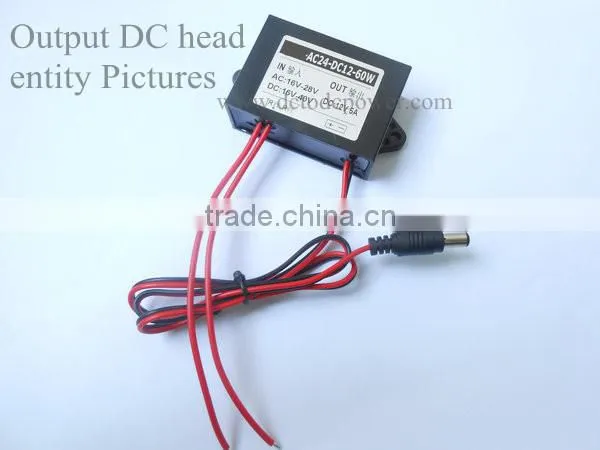

7, Package 1: Output: DC within the first positive and negative outside. Outer 5.5mm, 2.1mm inner core
No. 8,20 red and black and copper wire, wire length 60CM (include DC head)

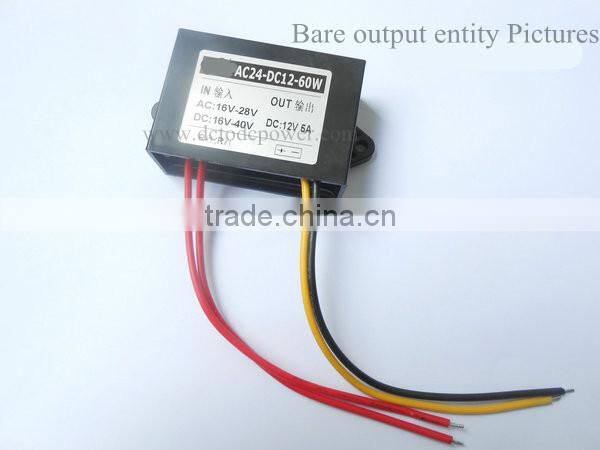

9, Package 2: Output: 12V yellow line is positive, black line is negative
10, reverse polarity protection, overvoltage overcurrent protection, short circuit protection, thermal protection
11, power consumption: 2MV, Ripple: about 40MV, operating temperature: -40 ℃ ~ + 85 ℃ (industrial grade)
12, Sale: waterproof power supply, normal use, shelf for six months.
13. Power Supply Model: KREE-AC24-DC12-60W
14. Input voltage: AC: 24V (wide voltage 16V-28V) or DC (wide voltage 16V-40V)
15, the output voltage: DC: 12V, output current: 5A, 60W power
16, long-term work load in less than 4A please
17, which is the load 12V 1A 2A 3A 4A no long-term problems
18, AC24V turn DC12V5A, is the best choice for the power head or power monitoring device can also be used on other devices use conform 24V 12V switch parameters.
