AC-DC Power Converter 24V Switch 12V AC Power Supply Module Buck AC to 12V DC 24V 3A

Product Name: AC-DC power converter 24V switch 12V AC power supply module buck AC to 12V DC 24V 3A

Keywords: buck power module 24V AC to DC 12V 3A

Product Type: KREE-AC24-DC12-36W

Product details:
Power Model: KREE-AC24-DC12-36W
Parameters Table
 Input voltage: AC: 24V (wide voltage 16V-28V) or DC (wide voltage 16V-40V)
 Output Voltage: DC: 12V
 Output Current: 3A peak current MAX: 5A
 Output Power: 36W
 Efficient conversion rate: more than 96% Ripple: 80MV
 Working temperature: -40 ℃ ~ + 85 ℃

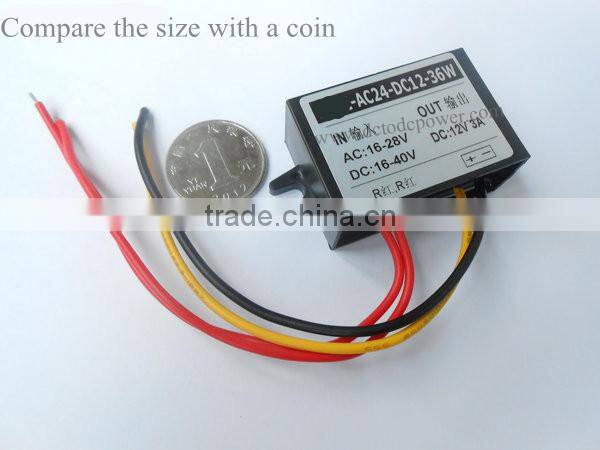

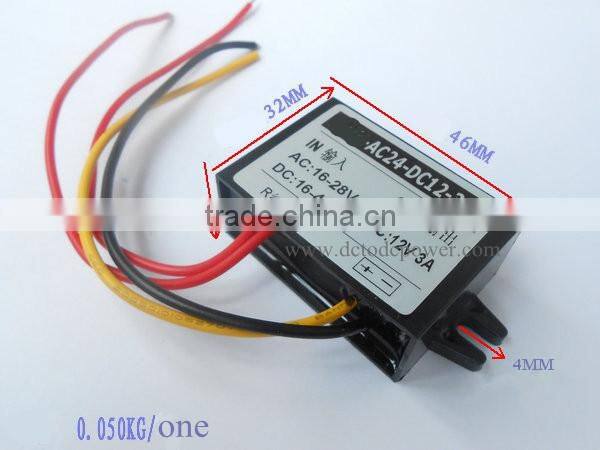

 Volume Specifications: 46 * 32 * 18MM (L * W * H)
 Weight: 0.055KG / a

Product Description:

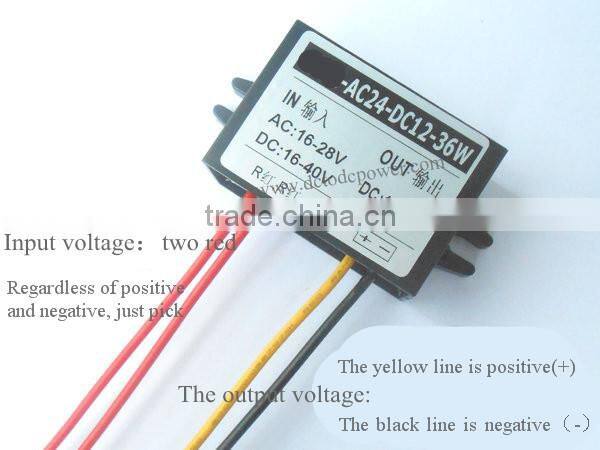

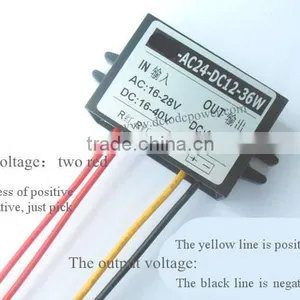

1, first you have to remember, this is a (AC or DC input may be) of the power conversion module (input, regardless of polarity), so the inputs are two red lines

2, the input AC: between the voltage range AC16V-28V, input DC: voltage range between DC16V-40V, the voltage stability.

3, section baby can work long 3A peak 5A, which means you can load the device within the long-term stability without adding any 30W heatsink. Performance is very stable, full power enough.

4, all the components are imported, synchronous rectification, the plastic casing, waterproof, shock, moisture and dust.

5. Enter the high-voltage transient protection, output overcurrent protection, output short circuit protection, chip overheating protection.

6. Applications (Common Application): Surveillance cameras (CCD Camera); monitoring equipment (CCTV System); router (Gateway); any other applications to 12V electronic equipment, etc. ... ect
