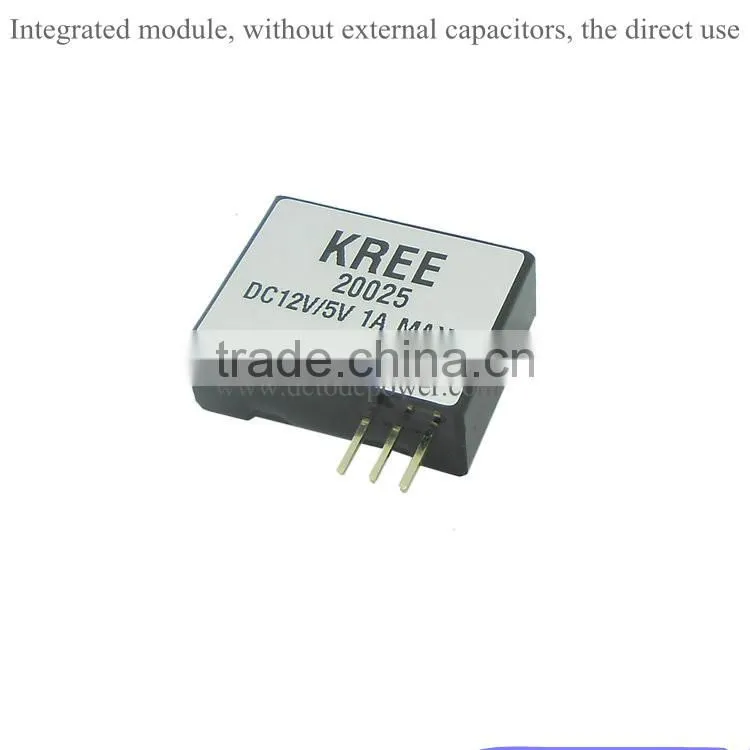

Product Name: Ultra-thin DC-DC step-down power module IC integrated 12V power supply module 5V1A turn over 2596 power converter
Keywords: ultra-thin DC-DC step-down power IC integration module
Product Type:
Color classification:
Product details: The following description is 12V turn 5V1A parameters; the output voltage can be customized 3.3V 3.7V 4.2V 6V 7.5V 9V, if you need other voltage output, please contact customer service to order.

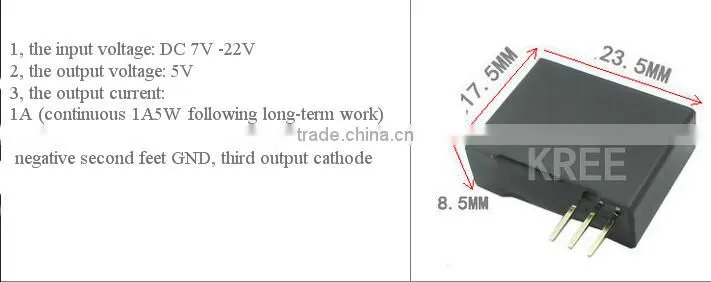

1. Input voltage: DC7V-22V
2. Output voltage: 5V
3. Output Current: 1A (available 1D5W following continuous long-term work)
The pins on the definition: first pin input positive and negative second leg GMD, the third leg positive output

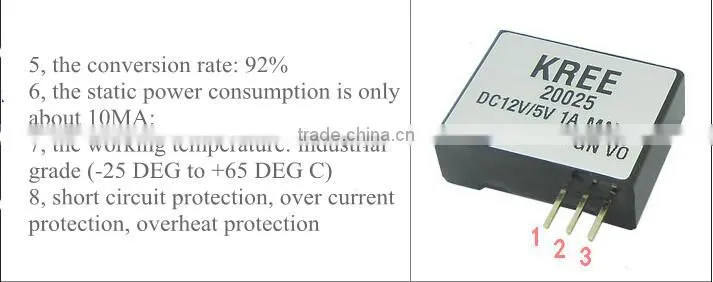

5. The conversion rate of 92%
6. Static power consumption: only about 10MA
7. Working temperature: industrial grade (-25 ℃ to + 65 ℃)
8. Short circuit protection, over-stay protection, thermal protection

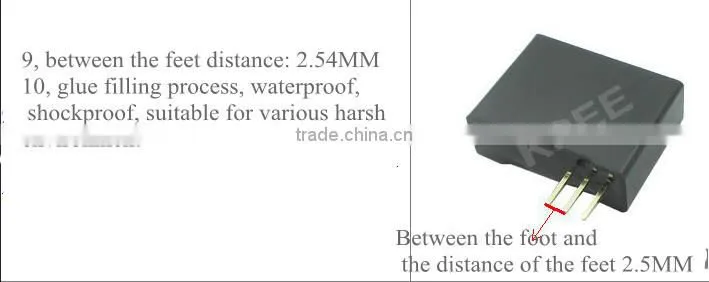

9. The distance between the feet and legs: 2.54MM
10. Glue craft, waterproof, shockproof, suitable for harsh environments
11. Pin leakage feet long: 4MM (can be welded to 1.6 thick PCB)
12. Pin material used: copper 1.0MM Pin
