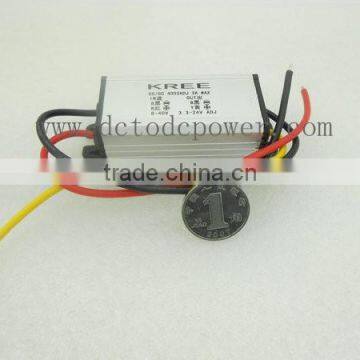

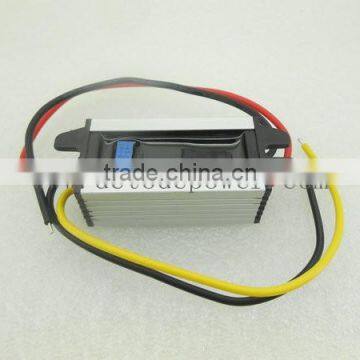

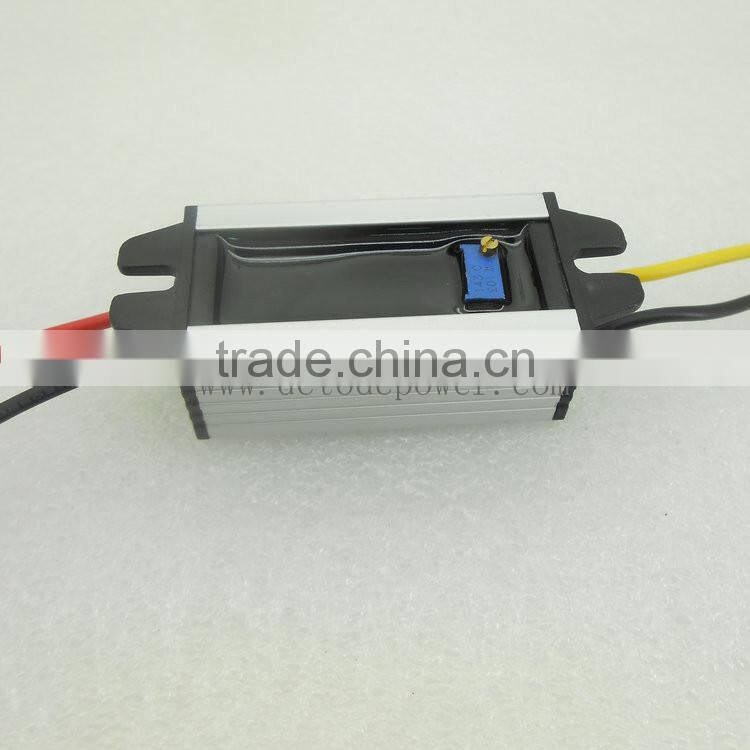

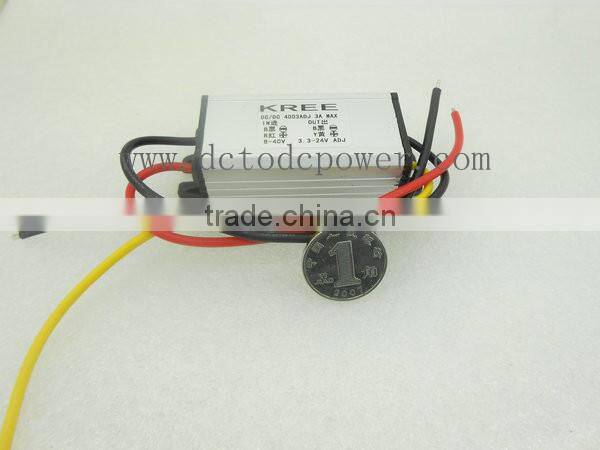

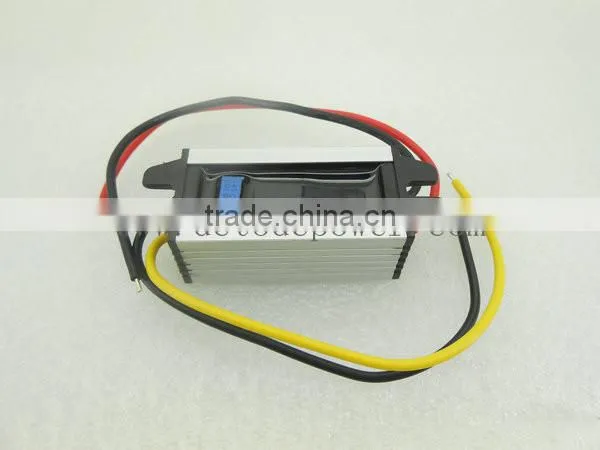

Product Name: 12v turn 5V24V turn 5V8 to 40VDC-DC buck regulator adjustable power car power converter module
Product Type:
Color classification:
Product Details: Adjustable step-down power module
1. Nature: DC / DC buck non-isolated power supply
2. Input voltage: 8-40V. Minimum pressure 3V, is the input voltage
Must be greater than the output voltage of 3V or more, to work
3. Output voltage: 3.3V-24V adjustable
4. Output current: 3A, the greater the voltage, the current proposal is smaller work,
To ensure that the power supply at a suitable temperature, to ensure stable power supply, reliability and longevity
The following suggestions 5V, less long-term 2.5A, 10V 1.5A or less following, 12V 1A above the long-term
After the output short circuit protection, output short circuit, there will be no energy input into the
The power will not heat itself, can be a long short circuit are not afraid
Output over-current protection: according to demand, in the 0-3A make precise current limiting protection,
When electric current is provided to limit, no output will
5. Conversion rate: more than 58%
6. wiring, wiring as follows:
Input: red (+) black line (-)
Output: the yellow line (+) black line (-)
7. Volume Specifications: 49.5 * 25.5 * 20.5MM (L * W * H)
8. Weight Approx: 50G / a
9. Protection: input reverse polarity protection, output short circuit, over-current, over-temperature protection
10. Working temperature: -25-65, limit -40-80
11. Main features: imported components, stable and reliable
Glue craft, earthquake, moisture, dust, adapt to harsh environments
