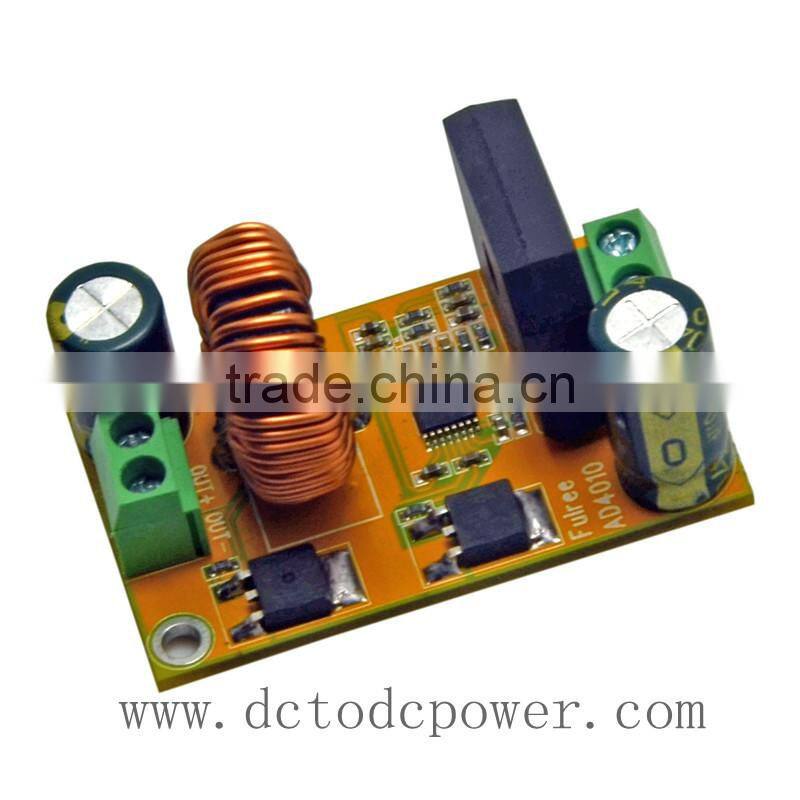

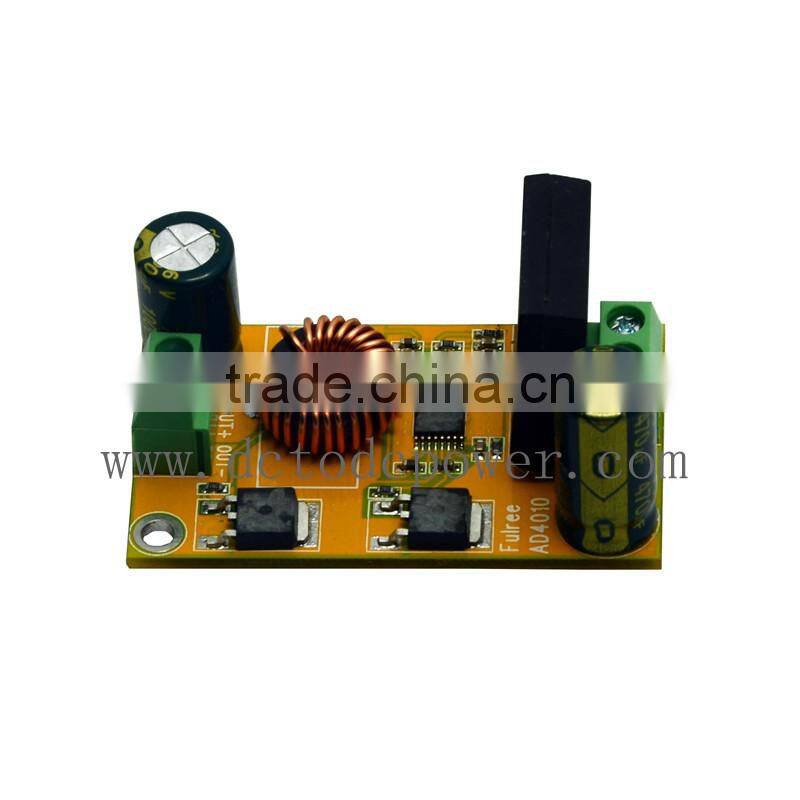

AC24V Turn DC12V AC24V Turn DC5V DC-DC AC to DC Power Supply 12V3A 5A 8A Surveillance

Product Name: AC24V turn DC12V AC24V turn DC5V DC-DC AC to DC power supply 12V3A 5A 8A surveillance
Product Type:
Color Classification: 5V5A
5V8A
12V5A
12V8A
Product Details: Input / output voltage:

1.1: 12V output for 17-40VD or 15-26VAC

1.2: 5V output for 9-40VDC or 8-26VAC

Other output voltages required, please contact customer service to order and confirm the delivery time

2. Output Current:

2.1: 5A and 8A options, select the appropriate voltage and current can be photographed

3. Working temperature:

Limit: -40-80 ° C is recommended for use in -20-60 ° C, in order to extend the life of power and stability, the temperature is below 75 ° C -25 higher voltage will drop 0.2-0.3V conversion efficiency will drop about 5 %, the peak current will be reduced 1-2A

4. size specifications:

Volume size only: 53 * 32 * 19MM (5A when L * W * H) 53 * 32 * 21 (8A when L * W * H)

5. Protection:

5.1, output short circuit protection,

5.2, overcurrent

5.3, over temperature protection

5.4 input reverse polarity protection, do the DC-to-DC power supply

6, note:

6.1, please follow the instructions Wiring: as shown below:

AC / DC there is an input, OUT + output positive, OUT- output negative

6.2, using the power supply must allow work at a suitable temperature to a long-term stable and reliable, not directly through the current parameter to judge, as to how much current can be long-term work, you can feel the power meter to determine the temperature, if you do not use much heat , different places, different circumstances, we can not directly come to an exact current parameters to you

6.3, rectifier bridge heat is normal, not higher than 75 ° will work properly.
