Car LCD TV TV Power Supply Board Buck Module 12V24V5V Quad Output Driver Power Module

Product Name: Car LCD TV TV power supply board buck module 12V24V5V Quad Output Driver Power Module
Product Type:
Color classification:
Product details: parameters are as follows:

Input voltage: DC 24V (20V wide voltage to 28V)

There are four sets of output

The first set of outputs 24V 6A, a second set of output 12V 4A

The third set of outputs 5V 4A, the fourth set of output 5V 1A

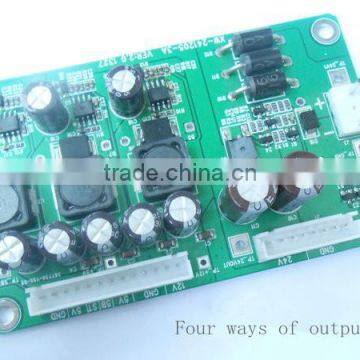

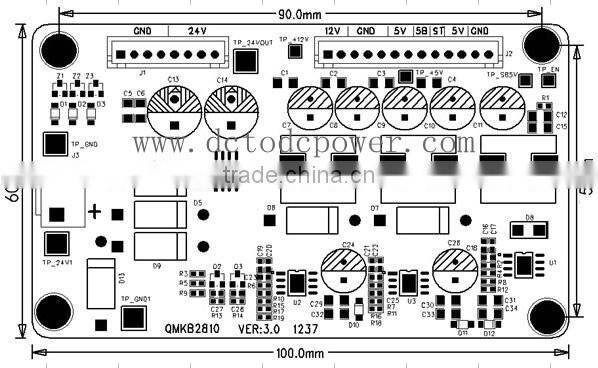

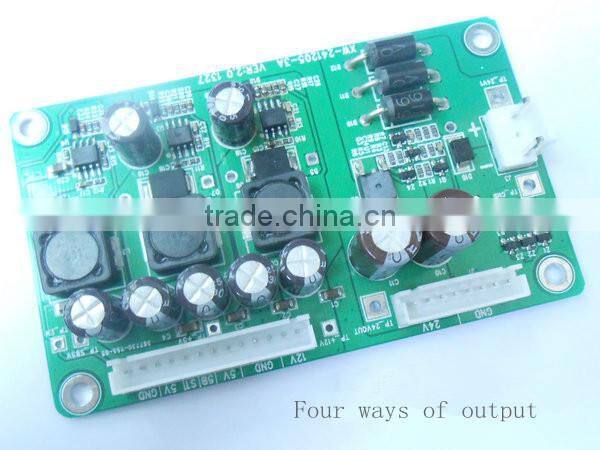

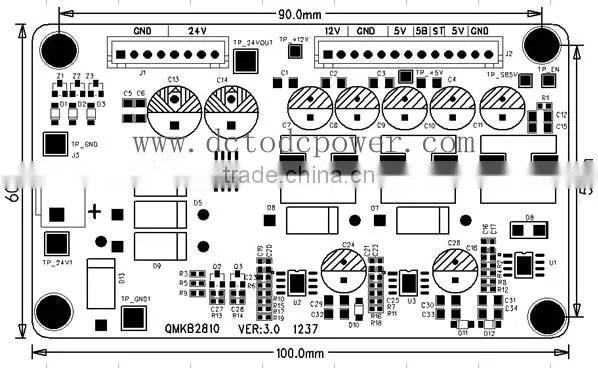

Volume Specifications: Length 100 * W 60 * H 19MM

Weight: 0.48KG / a

Operating frequency: 260KHz; efficiency: up to 99%;

Protection features: Soft start protection, overvoltage protection, overcurrent protection, thermal protection, short circuit protection

Output ripple: less than 160mV

Operating temperature: Industrial Temperature -45 ~ + 85 ;

Terminal plug wire, as follows:

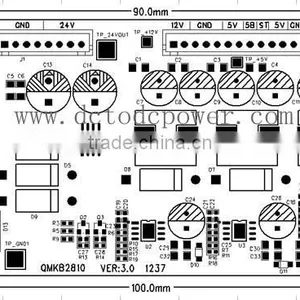

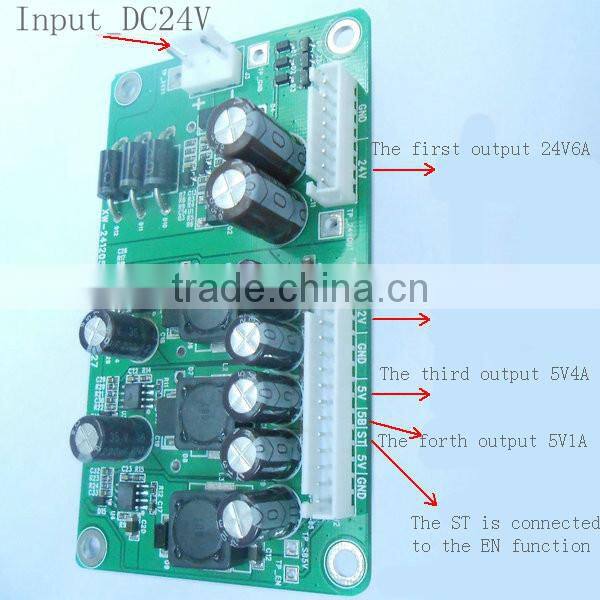

On the board next to the terminal block printed J1,1J2, J3

Input terminals of J3 --- 2PIN

"+" Then enter the positive, "-" then enter negative;
24V output terminal J1 --- 8PIN of

"24V" Pin 4 connected to the output of the positive
