Pollution Free Used Engine Oil Recycling Distillation Machine

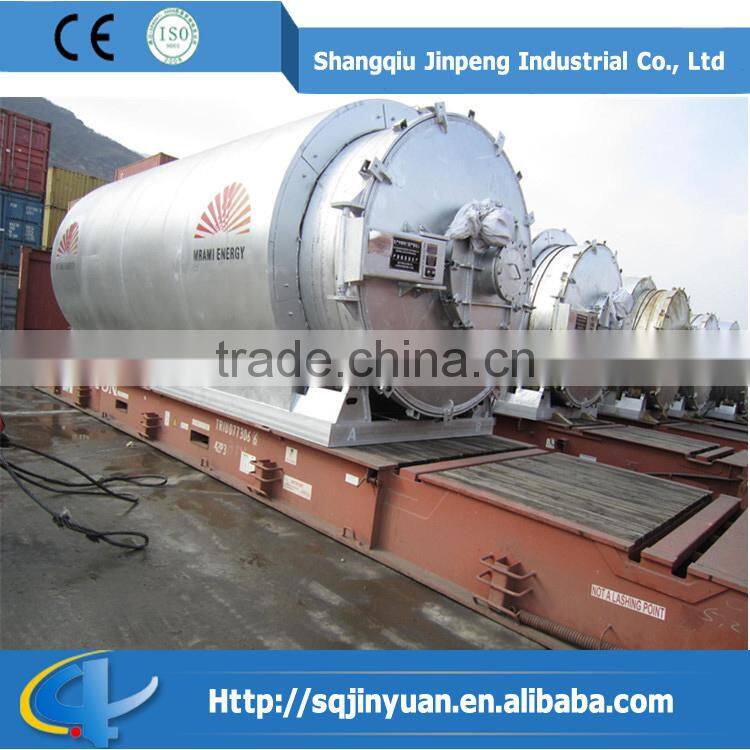

Pollution Free Used Engine Oil Recycling Distillation Machine photo-1
Pollution Free Used Engine Oil Recycling Distillation Machine photo-2

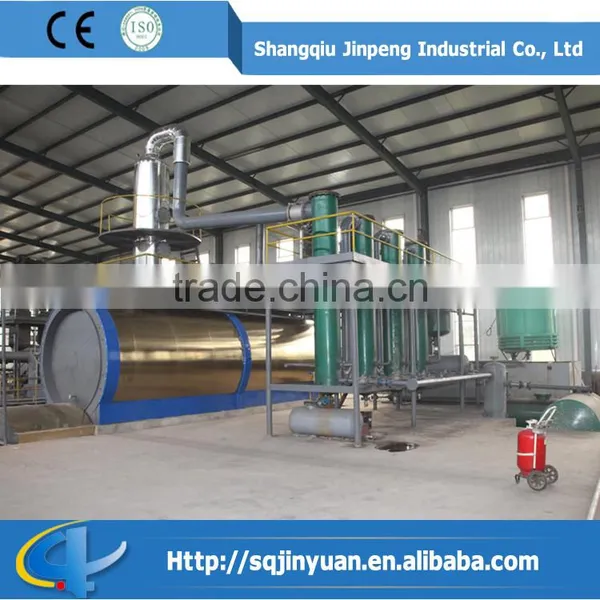

Pollution Free Used Engine Oil Recycling Distillation Machine photo-3

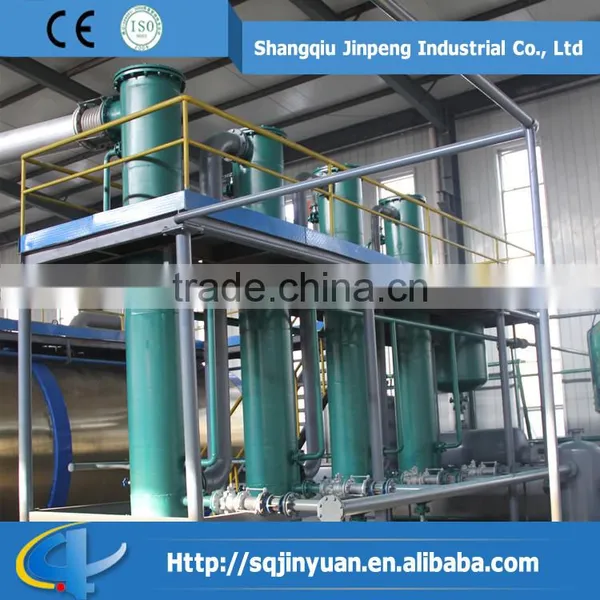

Pollution Free Used Engine Oil Recycling Distillation Machine photo-4

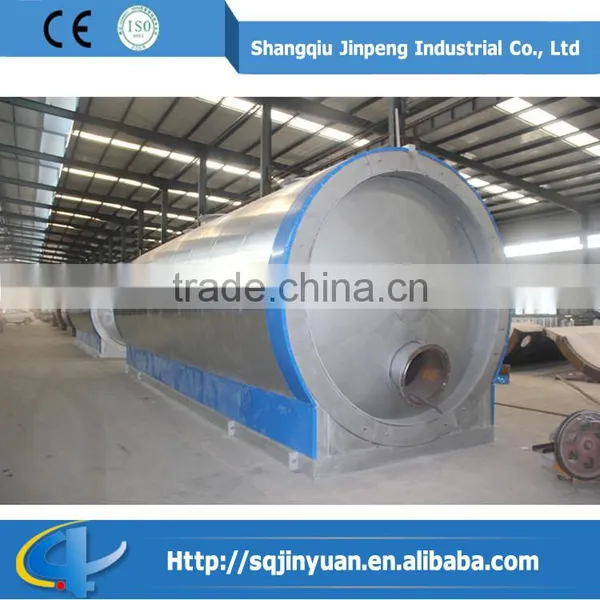

Pollution Free Used Engine Oil Recycling Distillation Machine photo-5

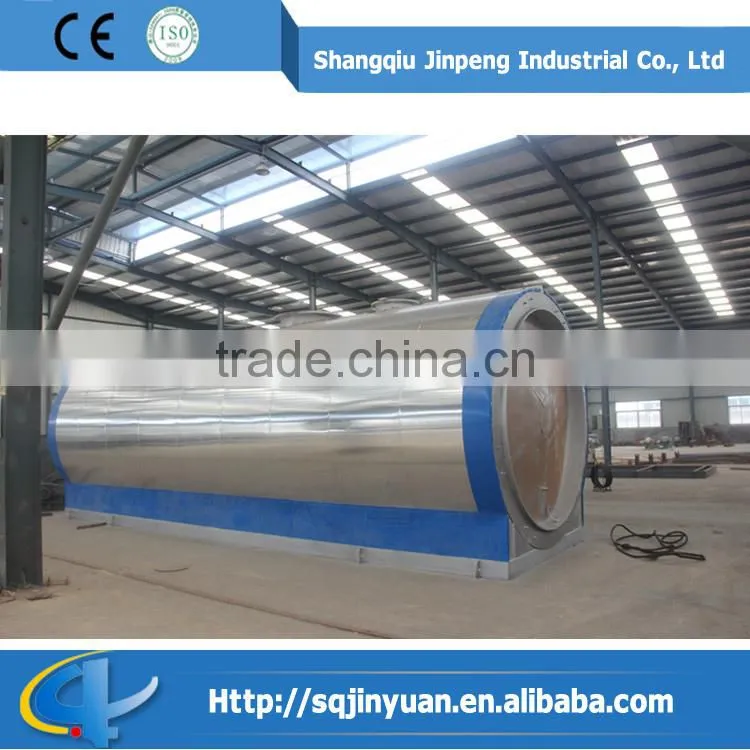

Pollution Free Used Engine Oil Recycling Distillation Machine photo-6
US$ 20,000 - 800,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
JINPENG
Model Number:
XY-8-D
Payment & Shipping
Payment Methods:
Port of Shipment:
Lianyungang
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name JINPENG
Model Number XY-8-D
Type Oil Purifier

Pollution Free Used Engine Oil Recycling Distillation Machine

Product Description

1. Advantages of Pollution Free Used Engine Oil Recycling Machine with Good Quality



1> Security

a: Adopting automatic submerged-welding technology.

b: all of the weldings will be detected by the ultrasonic nondestructive testing method to ensure the welding

quality and the welding shape.

c:adopting  manufacture process controlling system on the quality, every manufacture process, manufacture

date, etc.

d:equipped with antiexplosion device, safety valves, emergency valves, pressure and temperature meters, as well as the alarming system.

Pollution Free Used Engine Oil Recycling Distillation Machine





2>Environmental-friendly



a: Emission Standard: Adopting special gas scrubbers to remove acid gas and dust from smoke.

b: Smell during operation: Fully enclosed during the operation

c: Water pollution: No pollution at all.



Pollution Free Used Engine Oil Recycling Distillation Machine

 3> Energy conservation and low cost on operation:

special covers of the reactors and chambers can keep hot during the heating in good efficiency as well as the direct heating system to save energy and cost.

 Pollution Free Used Engine Oil Recycling Distillation Machine



2.The technical parameter:

NO

ITEM

PROJECT

1

Suitable raw materials

Waste engine oil, pyrolysis fuel oil, crude oil

2

Structure

Horizontal type

3

Capacity(24 hours)

3.5~6.5 tons

4

Work pressure

Normal pressure

5

Oil yield

85%-95%

6

Power

18-25KWH

7

Cooling method

Cycle water

8

Condensers

High efficiency condensers

9

Emission treatment

New de-sulfurization smoke scrubbers

10

Heating method

Hot air

11

Type of installation

With foundation

12

Noise dB (A)

Less than 85

13

Dimension of reactor

2500*8800mm

14

Operating mode

Semi-continuous operation

15

Main chamber weight

10-13 tons

16

Total weight

25-35 tons

17

Installation space required

35m*15m

18

End product

Non-standard diesel oil

19

Manpower

2~3/shift

20

Shipment requirement

1*40HC+1*40FR



3.The Flow Chart of Pollution Free Used Engine Oil Recycling Machine with Good Quality

Pollution Free Used Engine Oil Recycling Distillation Machine

Our Services



AFTER SALES SERVICE:



1. Quality warranty period: One year warranty for the main reactor of used engine oil purification machines and lifetime maintenance for complete set of machines.

2. Our company sends engineers for installation and commissioning in buyer's site including the training of

skills of the buyer's workers on operation, maintenance, etc.

3. Supply layout according to buyer's workshop and land, civil works information, operation manuals, etc.

to the buyer.

4. For the damage caused by the users, our company provides the parts and accessories with cost price.

5. Our factory supplies the wearing parts with the cost price to clients

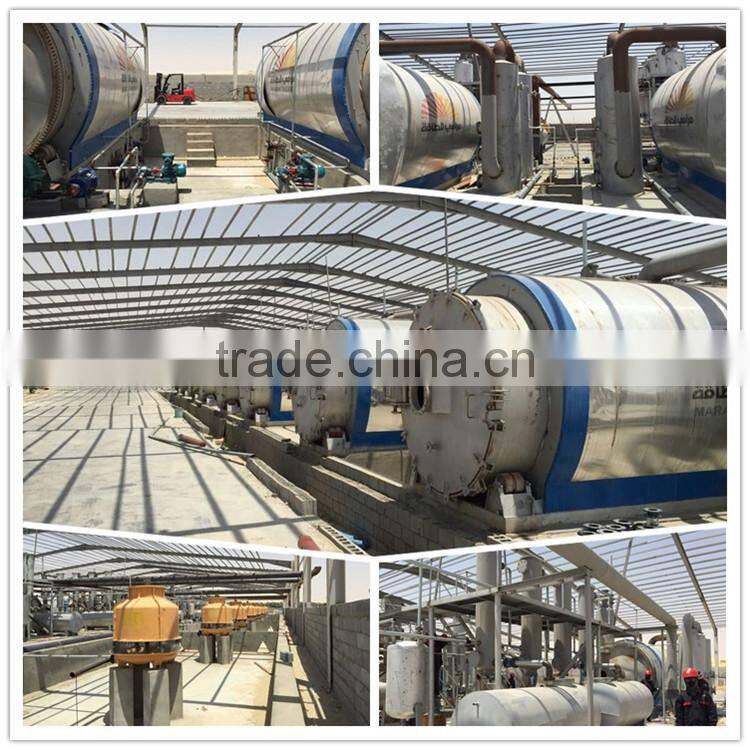

Installation Cases

Packaging & Shipping

1. Packaging Detail:

Pollution Free Used Engine Oil Recycling Machine with Good Quality needs 1*40HQ+1*40FR for delivery.

All goods are packed with exported standards package to make sure no damage during transportation.

2. Shipment: 45 days after the first deposit.



Delivery Pictures

Pollution Free Used Engine Oil Recycling Distillation MachinePollution Free Used Engine Oil Recycling Distillation MachinePollution Free Used Engine Oil Recycling Distillation MachinePollution Free Used Engine Oil Recycling Distillation Machine



Company Information

Shangqiu Jinpeng Industrial Co., Ltd, as the first domestic professional institute in the recycling of solid wastes( waste plastics, waste rubber, tyres), is a technology innovate demonstration enterprise involving scientific

research, development, manufacture and sales together.



Founded in 1985, our company has achieved great progress in waste recycling area. Nowadays, our company has owned 14 national patents and a provincial engineering research center. And our products has

achieved CE, SGS, ISO, BV, TUV certifications. The emission can meet GB13271-2001 related standards.

Our company has developed XY-series environmental protection equipments with the outstanding

advantages of less investment, high efficiency, simple operation, environmental friendly and so on. Up to now, our products include Pyrolysis Plants for waste rubber, plastic and tyres, normal pressure Distillation Plants

for waste engine oil, crude oil and the Carbon Black Deep-process Machines.



Due to the unique advantages, our machines are widely used in China and overseas, such as Poland, Austria, Albania, Turkey, Republic of Korea, Thailand, India, Africa countries, etc.



Pollution Free Used Engine Oil Recycling Distillation MachinePollution Free Used Engine Oil Recycling Distillation MachinePollution Free Used Engine Oil Recycling Distillation Machine
