Lead zinc ore production equipment of flotation cell
Lead PH:13-15, zinc PH:8-9, according to the different PH value, we can separate lead and zinc concentrate.

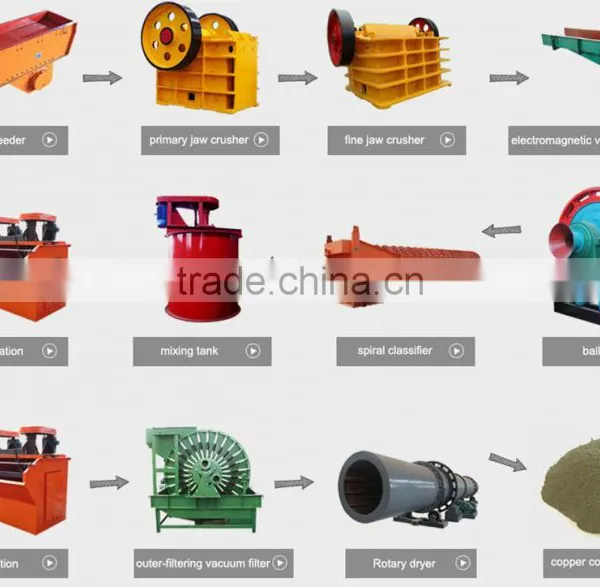

lead zinc ore production line:
crushing------grinding------flotation cell------lead and zinc separation
Flotation machine is also known as flotation cell and flotation tank, which is one kind of ore processing equipment mainly used to separate copper, zinc, lead, nickel, gold, silver, lead and other non-ferrous metals. So, it is also called gold flotation machine and copper ore flotation machine.

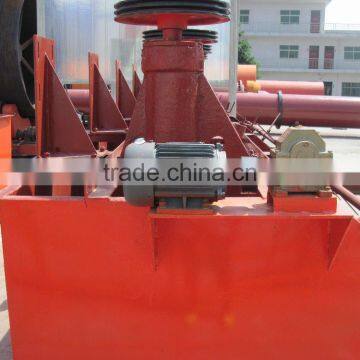

Working Principle of SF flotation cell:
When it works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.
Technical parameter of SF flotation cell:
Model | SF0.37 | SF0.7 | SF1.2 | SF2.8 | SF4 |
Trough volume(m3) | 0.37 | 0.7 | 1.2 | 2.8 | 4 |
Impeller diameter(mm) | 300 | 350 | 450 | 550 | 650 |
capacity(m2/min) | 0.2-0.4 | 0.3-0.9 | 0.6-1.2 | 1.5-3.5 | 0.5-4 |
Impeller speed(r/min) | 352 | 400 | 312 | 268 | 238 |
Model of motor Power of motor(kw) dimensions(mm) single trough weight(kg) | Y90L-4 | Y100L2-4 | Y132M2-6 | Y160L-6 | Y180L-6 |
Y90S-4 | Y90S-4 | Y90S-4 | Y90S-4 | Y90L-4 | |
1.5 | 3 | 5.5 | 11 | 15 | |
1.1 | 1.1 | 1.1 | 1.1 | 1.5 | |
700X700X750 | 900X820X950 | 1100X1100X1100 | 1700X1600X1150 | 1850X2050X1200 | |
468 | 600 | 1373 | 2338 | 2660 |
XJF flotation cell:
| Model | Volume | Impeller dia(mm) | Capacity(m3/min) | Impeller speed(r/min) | Scraper speed(r/min) | Dimensions | Weight(t) |
| L*W*H(mm) | |||||||
| XJK-0.13(1A) | 0.13 | 200 | 0.05-0.16 | 600 | 17.5 | 2110*865*990 | 0.35 |
| XJK-0.23(2A) | 0.23 | 250 | 0.12-0.28 | 500 | 17.5 | 2625*1130*1290 | 0.42 |
| XJK-0.35(3A ) | 0.35 | 300 | 0.18-0.4 | 470 | 17.5 | 3012*1350*1327 | 0.45 |
| XJK-0.62(4A) | 0.62 | 350 | 0.3-0.9 | 400 | 26 | 3798*1464*1530 | 0.85 |
| XJK-1.1(5A) | 1.1 | 500 | 0.6-1.6 | 330 | 26 | 4679*1820*1942 | 1.24 |
| XJK-2.8(6A) | 2.8 | 600 | 1.5-3.5 | 280 | 26 | 7750*1600*1100 | 2.43 |

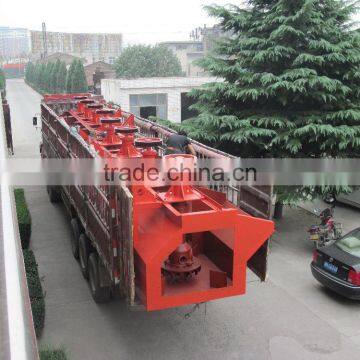

Flotation cell shipping:
Flotation cell working site:
How to visit us ?
If you want to visit our factory, please note our city name, Zhengzhou City, Henan Province, China(mainland)
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
