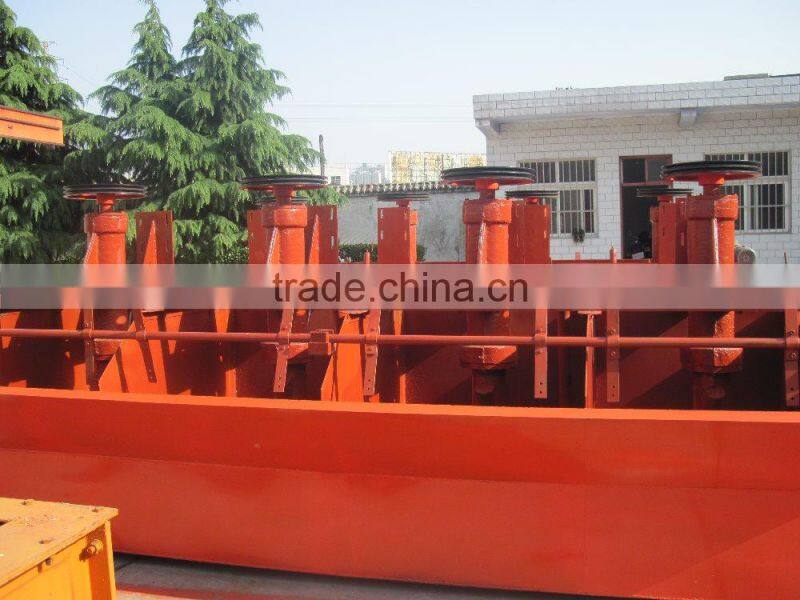

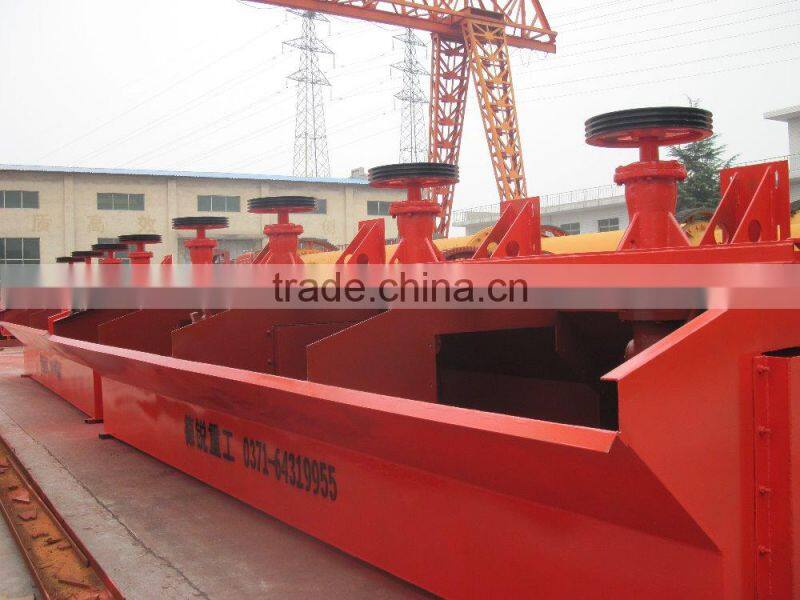

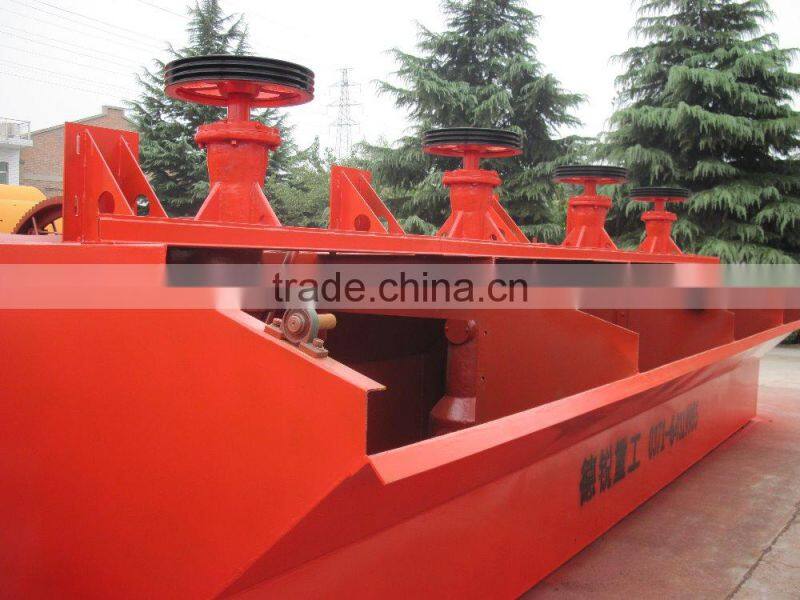

Lead zinc ore flotation machine for lead zinc concentrate
Flotation machine is also known as flotation cell and flotation tank, which is one kind of ore processing equipment mainly used to separate copper, zinc, lead, nickel, gold, silver, lead and other non-ferrous metals. So, it is also called gold flotation machine and copper ore flotation machine.
Flotation machine or flotation separator is a machine that is used for completing the flotation separation process. Inside the flotation cells, the ore pulp processed with reagent is mixed and inflated with air to make some ore particles selectively adhere to the bubbles. Then the bubbles will float to the surface of the ore pulp and be scraped out to become froth pulp and the rest will remain in the ore pulp, thus reaching the aim of separating the minerals.
Flotation machine Working Principle:
Mix the mashed rocks with water and necessary reagent in the mixing chute, and inject them to the pulp chute. Lead air to the pulp to make it form large quantities of bubbles, and some mineral particles that are difficult to get moist in water and that are generally called hydrophobic mineral particles will stick on the bubbles and float with the bubbles to the surface of the pulp to form mineralized bubble layer, and some other mineral particles that are easy to get moist in water and that are called hydrophilic mineral particles do not stick on the bubbles but stay in the pulp to discharge the mineralized bubbles containing specific minerals, thus completing the separation process.
Flotation machine working process:

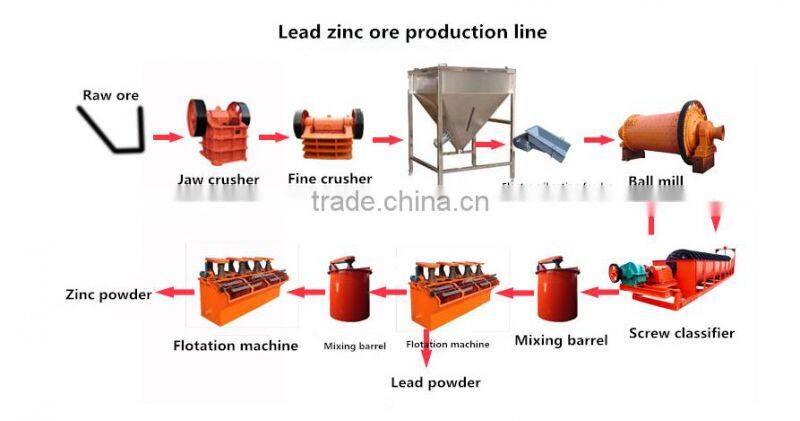

Raw ore------Jaw crusher------Fine crusher------Stock bin------Electro-vibrating feeder------Ball mill------screw classifier------Mixing barrel------flotation machine------lead powder------mixing barrel------flotation machine------zinc powder
Technical parameter of SF flotation machine:
Model | SF0.37 | SF0.7 | SF1.2 | SF2.8 | SF4 |
Trough volume(m3) | 0.37 | 0.7 | 1.2 | 2.8 | 4 |
Impeller diameter(mm) | 300 | 350 | 450 | 550 | 650 |
capacity(m2/min) | 0.2-0.4 | 0.3-0.9 | 0.6-1.2 | 1.5-3.5 | 0.5-4 |
Impeller speed(r/min) | 352 | 400 | 312 | 268 | 238 |
Model of motor Power of motor(kw) dimensions(mm) single trough weight(kg) | Y90L-4 | Y100L2-4 | Y132M2-6 | Y160L-6 | Y180L-6 |
Y90S-4 | Y90S-4 | Y90S-4 | Y90S-4 | Y90L-4 | |
1.5 | 3 | 5.5 | 11 | 15 | |
1.1 | 1.1 | 1.1 | 1.1 | 1.5 | |
700X700X750 | 900X820X950 | 1100X1100X1100 | 1700X1600X1150 | 1850X2050X1200 | |
468 | 600 | 1373 | 2338 | 2660 |
XJF flotation machine:
| Model | Volume | Impeller dia(mm) | Capacity(m3/min) | Impeller speed(r/min) | Scraper speed(r/min) | Dimensions | Weight(t) |
| L*W*H(mm) | |||||||
| XJK-0.13(1A) | 0.13 | 200 | 0.05-0.16 | 600 | 17.5 | 2110*865*990 | 0.35 |
| XJK-0.23(2A) | 0.23 | 250 | 0.12-0.28 | 500 | 17.5 | 2625*1130*1290 | 0.42 |
| XJK-0.35(3A ) | 0.35 | 300 | 0.18-0.4 | 470 | 17.5 | 3012*1350*1327 | 0.45 |
| XJK-0.62(4A) | 0.62 | 350 | 0.3-0.9 | 400 | 26 | 3798*1464*1530 | 0.85 |
| XJK-1.1(5A) | 1.1 | 500 | 0.6-1.6 | 330 | 26 | 4679*1820*1942 | 1.24 |
| XJK-2.8(6A) | 2.8 | 600 | 1.5-3.5 | 280 | 26 | 7750*1600*1100 | 2.43 |
Flotation machine production line:
Feeder------Jaw crusher------Cone crusher------Elevator------Ball mill------Jigger machine------Concentrator------Ball mill------Flotation machine------Magnetic machine------Tailing recycling machine

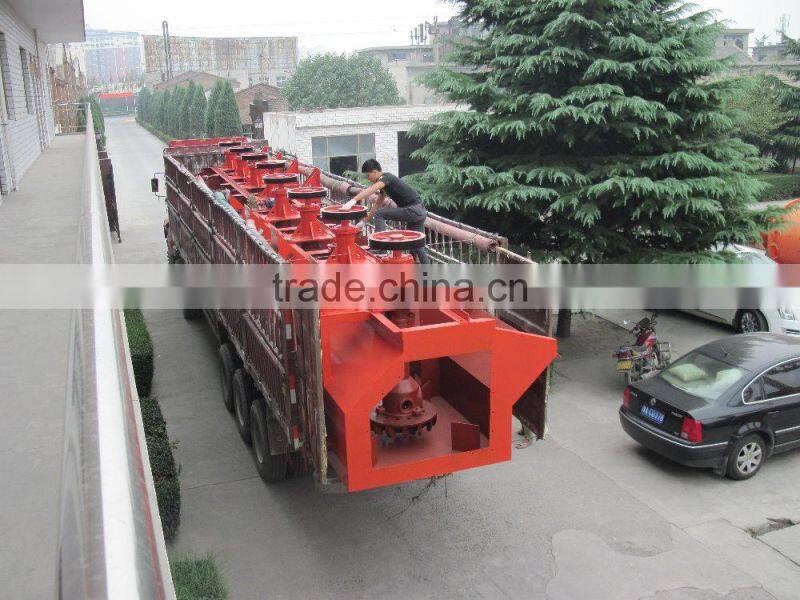

Flotation machine shipping:

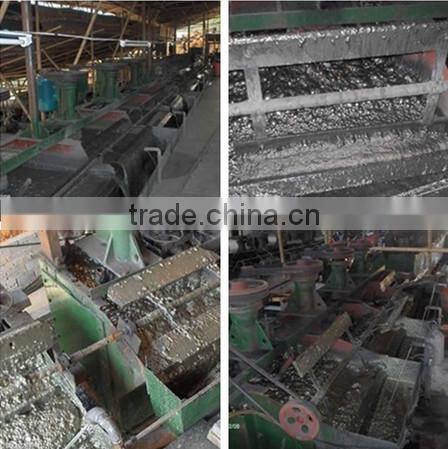

Flotation machine working site:
How to visit us ?
If you want to visit our factory, please note our city name, Zhengzhou City, Henan Province, China(mainland)
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
