Gold flotation machine for gold ore and gold placer

Gold flotation machine for gold ore and gold placer

Gold has three categories, gold ore (Mountain gold mine, endogenous gold) and gold placer (alluvial, alluvial, beach type, slope deposits type and exogenous gold) and Associated gold (recovery from the non-ferrous minerals )

Gold flotation machine is also known as gold flotation cell and gold flotation tank, which is one kind of ore processing equipment mainly used to separate copper, zinc, lead, nickel, gold, silver, lead and other non-ferrous metals. So, it is also called gold flotation machine and copper ore flotation machine.

 Gold Flotation machine in factory:

Gold Flotation machine is widely used in gold processing. In China, 80% rock gold is processed by flotation. Flotation process maximizes the enrichment of gold into sulfide minerals. The tailings can be directly discharged.  Flotation machine in gold mine has low beneficiation cost.

Gold Flotation machine is use to process fine gold, sulfide gold-containing quartz ore, multi metal gold-containing sulfide ore and carbon-containing ore.

 Gold Flotation machine working principle:

Mix the mashed rocks with water and necessary reagent in the mixing chute, and inject them to the pulp chute. Lead air to the pulp to make it form large quantities of bubbles, and some mineral particles that are difficult to get moist in water and that are generally called hydrophobic mineral particles will stick on the bubbles and float with the bubbles to the surface of the pulp to form mineralized bubble layer, and some other mineral particles that are easy to get moist in water and that are called hydrophilic mineral particles do not stick on the bubbles but stay in the pulp to discharge the mineralized bubbles containing specific minerals, thus completing the separation process.

Gold Flotation machine Process:

Gold mineral flotation normally adopts one stage grinding-flotation process, but stages grinding and flotation for ore with uneven distribution.

Grinding fineness of gold:

For the gold wrapped in sulfide minerals, sulfide ore reaches monomer dissociation; but for the gold with gangue, grinding fineness should reach gold monomer dissociation. Grinding fineness of minerals is determined by test.

Concentration of gold flotation machine process:

Flotation for large density and coarse particle needs thick pulp, whereas for small density and fine particle, need dilute pulp

Other process conditions

In addition to the grinding fineness, process conditions of gold flotation also includes slurry concentration, reagent dosage, aeration quantity, flotation time

Gold Flotation machine for gold extracting:

Gold Flotation machine technical parameter:

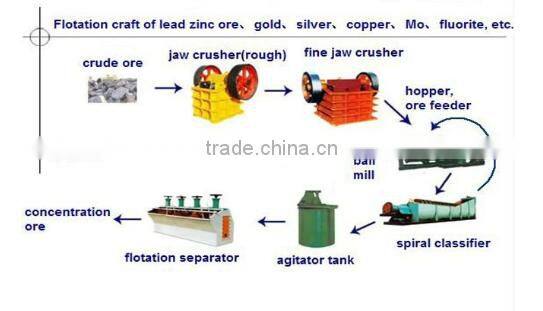

Gold production line:

Dust sand and granule------belt conveyor------silo------Electromagetic vibration feeder------ball mill------medicament mixer------flotation cell------fine powder pool

Hard ore------jaw crusher------fine crusher------ball mill------spiral classifier------Mixing tank------flotation cell

other ways for gold extracting:

gold extracting production line:

Jaw crusher------fine crusher------ball mill------spriral classifier------mercury board------mercury mixing barrel------sticky gold carpet

Jaw crusher------fine crusher------mercury rolling grinding------mercury board------mercury mixing barrel------sticky gold carpet

Gold Flotation machine shipping:
