Silica sand flotation machine for casting sand and quartz ore
- 20 Set / Sets per Month
- Qingdao Shanghai Lianyungang Tianjin
- T/T Credit Card
You May Like
-
Gold processing plant of flotation machine for rock gold and gold placer
-
Quartz ore flotation separator/quartz ore flotation machine/quartz ore flotation equipment
-
Iron ore mining equipment, iron ore processing equipment, iron ore processing plant
-
Lead zinc ore flotation separator production line
-
Lead zinc ore flotation separator production line
-
Flotation machine for rock gold and gold placers
Product Details
Condition | New | Type | Flotation Separator | |
Production Capacity | 0.2-0.4m³/min | Place of Origin | Henan, China | |
Brand Name | Derui | Model Number | SF0.37 | |
Voltage | 220v/380v | Power(W) | 1.5kw | |
Dimension(L*W*H) | 700*700*750mm | Weight | 468kg | |
Certification | ISO | Warranty | one year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Silica sand flotation machine for casting sand and quartz ore
For casting steel industry, siO2 content should more than 97%, for casting iron sand, SiO2 should more than 85%, nonferrous alloy sand should more than 75%.

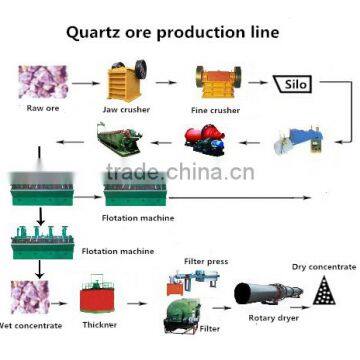

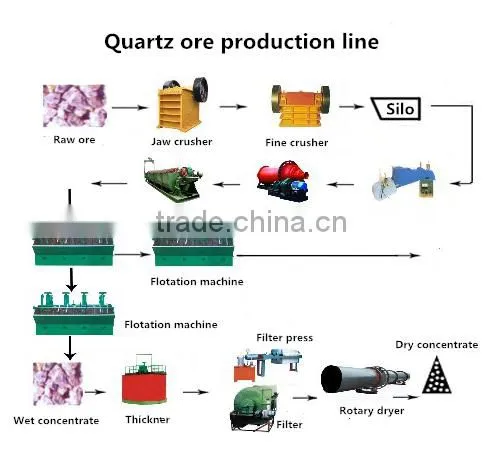

Sand flotation machine production line:
Quartz sand------Jaw crusher------Fine crusher------Silo------Electro-vibrating feeder------Ball mill------Screw classifier------sand flotation machine------wet concentrate------thicker------filter------rotary dryer------dry concentrate
Flotation machine is also known as flotation cell and flotation tank, which is one kind of ore processing equipment mainly used to separate copper, zinc, lead, nickel, gold, silver, lead and other non-ferrous metals. So, it is also called gold flotation machine and copper ore flotation machine.
Working Principle of SF sand flotation machine:
When it works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.
Technical parameter of SF flotation machine:
Model | SF0.37 | SF0.7 | SF1.2 | SF2.8 | SF4 |
Trough volume(m3) | 0.37 | 0.7 | 1.2 | 2.8 | 4 |
Impeller diameter(mm) | 300 | 350 | 450 | 550 | 650 |
capacity(m2/min) | 0.2-0.4 | 0.3-0.9 | 0.6-1.2 | 1.5-3.5 | 0.5-4 |
Impeller speed(r/min) | 352 | 400 | 312 | 268 | 238 |
Model of motor Power of motor(kw) dimensions(mm) single trough weight(kg) | Y90L-4 | Y100L2-4 | Y132M2-6 | Y160L-6 | Y180L-6 |
Y90S-4 | Y90S-4 | Y90S-4 | Y90S-4 | Y90L-4 | |
1.5 | 3 | 5.5 | 11 | 15 | |
1.1 | 1.1 | 1.1 | 1.1 | 1.5 | |
700X700X750 | 900X820X950 | 1100X1100X1100 | 1700X1600X1150 | 1850X2050X1200 | |
468 | 600 | 1373 | 2338 | 2660 |
XJF flotation machine:
Model | Volume | Impeller dia(mm) | Capacity(m3/min) | Impeller speed(r/min) | Scraper speed(r/min) | Dimensions | Weight(t) |
L*W*H(mm) | |||||||
XJK-0.13(1A) | 0.13 | 200 | 0.05-0.16 | 600 | 17.5 | 2110*865*990 | 0.35 |
XJK-0.23(2A) | 0.23 | 250 | 0.12-0.28 | 500 | 17.5 | 2625*1130*1290 | 0.42 |
XJK-0.35(3A ) | 0.35 | 300 | 0.18-0.4 | 470 | 17.5 | 3012*1350*1327 | 0.45 |
XJK-0.62(4A) | 0.62 | 350 | 0.3-0.9 | 400 | 26 | 3798*1464*1530 | 0.85 |
XJK-1.1(5A) | 1.1 | 500 | 0.6-1.6 | 330 | 26 | 4679*1820*1942 | 1.24 |
XJK-2.8(6A) | 2.8 | 600 | 1.5-3.5 | 280 | 26 | 7750*1600*1100 | 2.43 |
Flotation machine production line:
Feeder------Jaw crusher------Cone crusher------Elevator------Ball mill------Jigger machine------Concentrator------Ball mill------Flotation machine------Magnetic machine------Tailing recycling machine

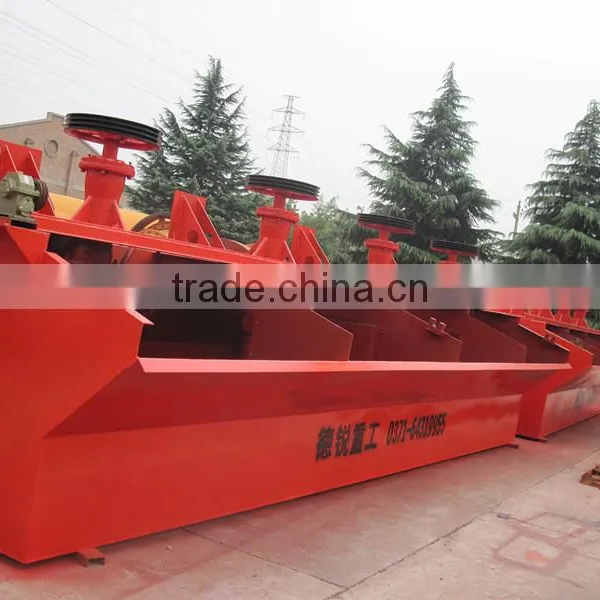

Flotation machine shipping:
Flotation machine working site:
How to visit us ?
If you want to visit our factory, please note our city name, Zhengzhou City, Henan Province, China(mainland)
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
