Plastic Recycling to Oil Pyrolysis and Distillation Combined Machine Cost Saving

NO.

Name

Parameter

1

The raw materials:

plastic waste

2

Daily capacity:

12 ton/day

3

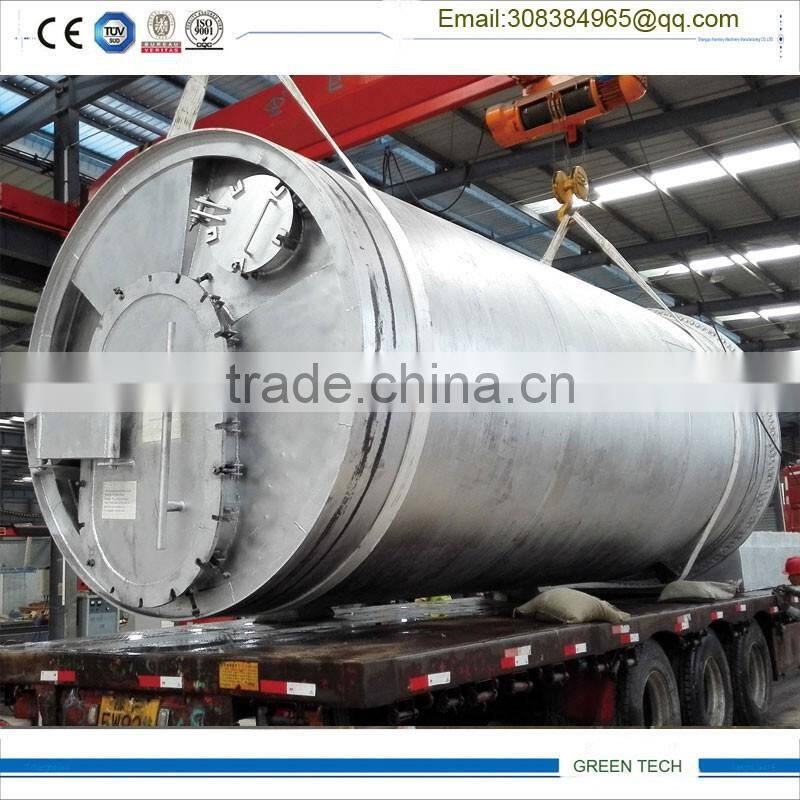

The size of reactor

2800*6600mm 16mm thickness

4

Reactor material

Q345R

5

Average oil productivity:

30%-80%,

6

pyrolysis time

6-8 hours

7

Discharge time

1.5 hour

8

Feeding time

3 hourS

9

Cooling time

3 hours

10

Working pressure

Normal /slightly negative

11

Power

18 kw

12

Fuel

Coal. Wood, gas etc

13

Working area

1000 square meters

14

Total weight

35 000kgs

15

Reactor rotate speed

0.25-0.4/min

16

Noise

No less than 85DB

17.

Plant working area

700-1000 square meters

 Item

Raw material

Oil Output

Tires

Steel Wire Tire

40%-55%

Nylon Tire

≈40%

Bicycle tire

≈35%

Paper Pulp

Coarse Material

≈20%

Water Washing Material

23% -30%

PE Material

≈70%

Cable Skin

PE Cable Skin

≈85%

PVC Cable Skin

≈25%

Pure Rubber Cable Skin

≈35%

Telephone Wire

≈50%

Life Garbage

Pure Plastic Bags

≈50%

Coarse Material With Water

≈15%

Weaves & Handbags

≈60%

Shoes

Black Rubber

≈35%

Sports Shoe's Sole

27%-33%

Gum Outsole

≈35%

Plastic`

Pure PP

≥65%

Pure PE

≥70%

PO,PS

≈30%

ABS

≈40%

Others

Common Rubber Pipe

≈30%

Carpets

≈35%

Aluminum Foil

≈35%

Car Glass Bead

≈50%

PP Beverage Bottle

≈50%

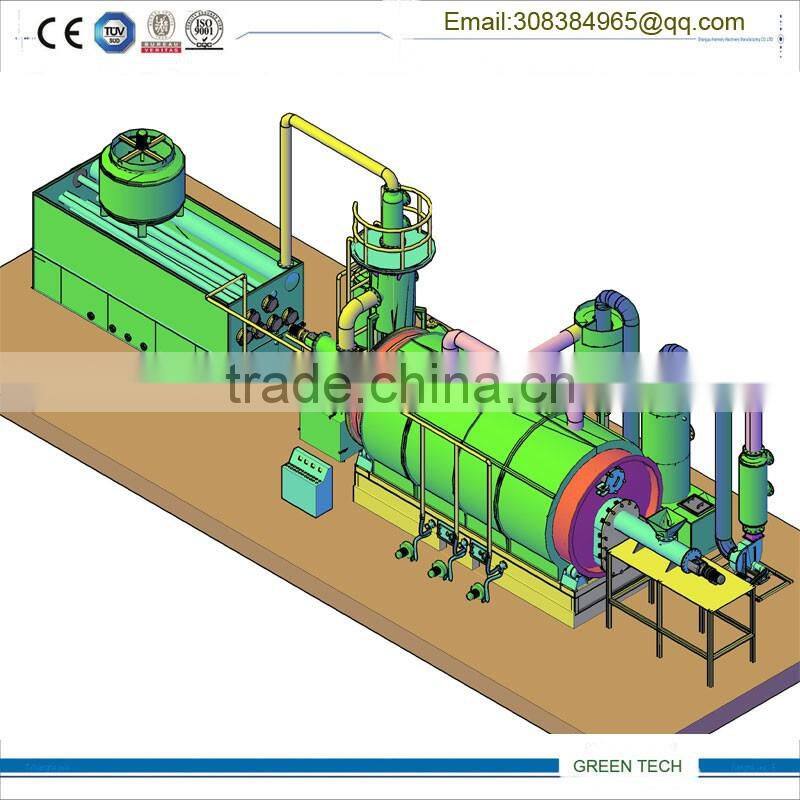

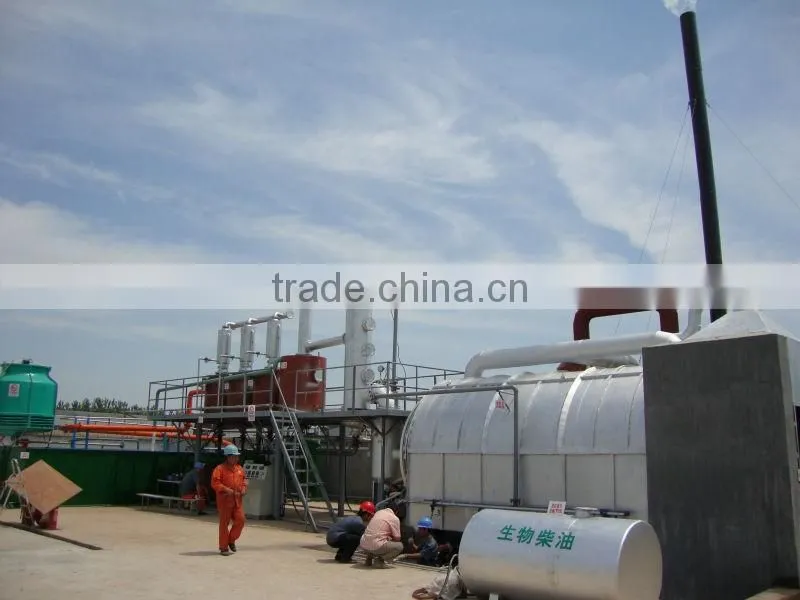

Pyrolysis plant

Type

Daily capacity

Used for

Final Product and usage

Batch type

3ton

5Ton

10ton

12ton

15ton

20ton

Waste tyre

Plastic

Rubber

Oil sludge

Oily waste

Others

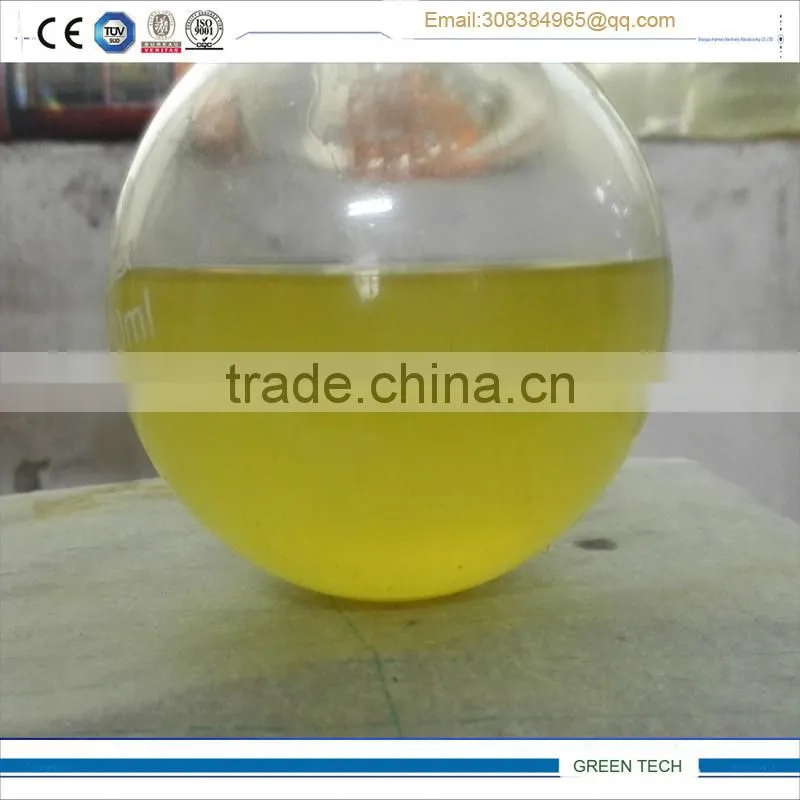

 Fuel oil

Used for heating boiler as furnace oil

Or refined for distillation oil

Semi-continuous type

15Ton,

20Ton

Fully continuous type

20ton

30ton

60ton

Special type

20Ton

15ton

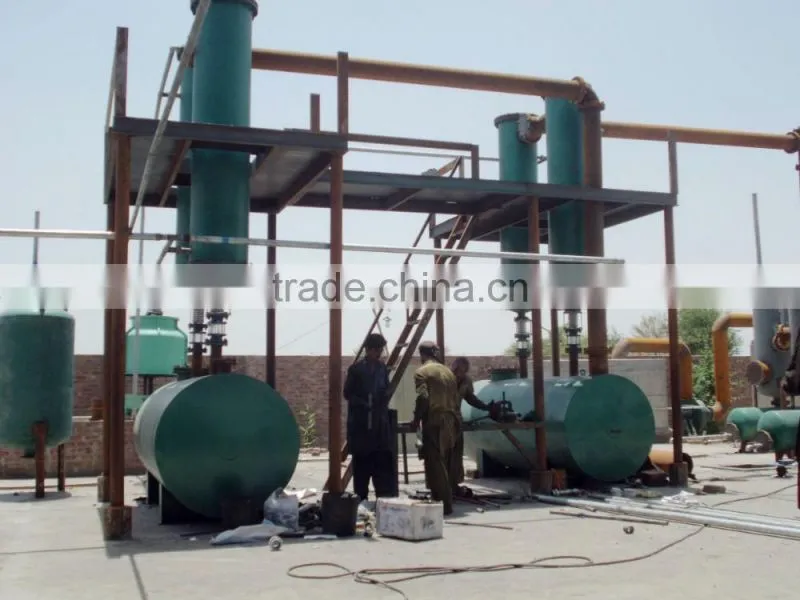

Distillation plant

Fully continuous type

3ton

5ton

10ton

15ton

20ton

30ton

40ton

Used motor oil

Used lube

Washing parts oil

Pyrolysis oil

Crude oil

Others

A..

base oil

for heavy vehicles

B. diesel for car and other
