Medical waste recycling machine getting pyrolysis oil 10 tpd
1.Plant parameter:
NO. |
Name |
Parameter |
1 |
The raw materials: |
waste tyres,/plastic, oil sludge/other waste |
2 |
Daily capacity: |
10 ton/day |
3 |
The size of reactor |
2800*6000mm 16mm thickness |
4 |
Reactor material |
Q345R |
5 |
Average oil productivity: |
30%-80%, |
6 |
Average carbon productivity: |
20%-35% |
7 |
Plastic oil rate |
30%-80% |
8 |
pyrolysis time |
6-8 hours |
9 |
Discharge time |
1.5 hour |
10 |

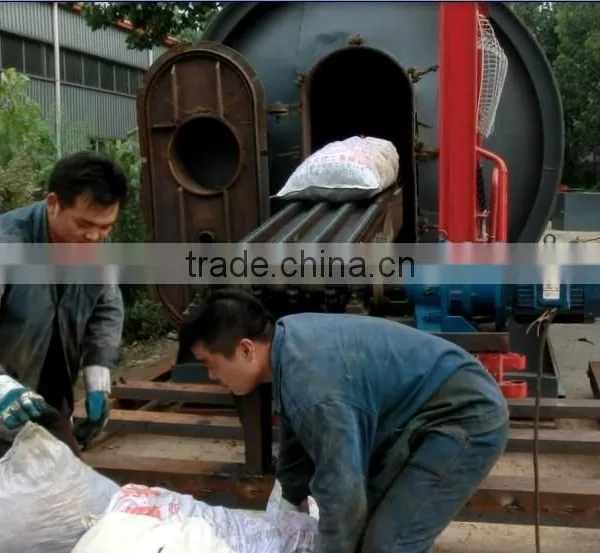

Feeding time |
3 hourS |
11 |
Cooling time |
3 hours |
12. |
Working pressure |
Normal /slightly negative |
13 |
Power |
18 kw |
14 |
Fuel |
Coal. Wood, gas etc |
15 |
Working area |
1000 square meters |
16 |
Total weight |
35 000kgs |
17 |
Reactor rotate speed |
0.25-0.4/min |
18 |
Noise |
No less than 85DB |
19. |
Certificate |
Ce,.iso, |
20. |
Carbon slag out |
Automatic |
2.Oil rate for different plastic
PE |
50%-75% |
PP |
50%-75% |
PS |
50%-75% |
ABS |
40% |
Leftovers of paper |
Wet 15-20%, dry 60% |
House garbage |
35-50% |
Plastic cable |
80% |
Plastic bag |
50% |
Submarine cable |
75% |
Rubber cable |
35% |
Sole |
30% |
Big tires |
45-50% |
Small tires |
35-40% |
PVC |
Not suitable |
PET |
Not suitable |
Big tyre |
40-45% |
Small tyre |
30-35% |

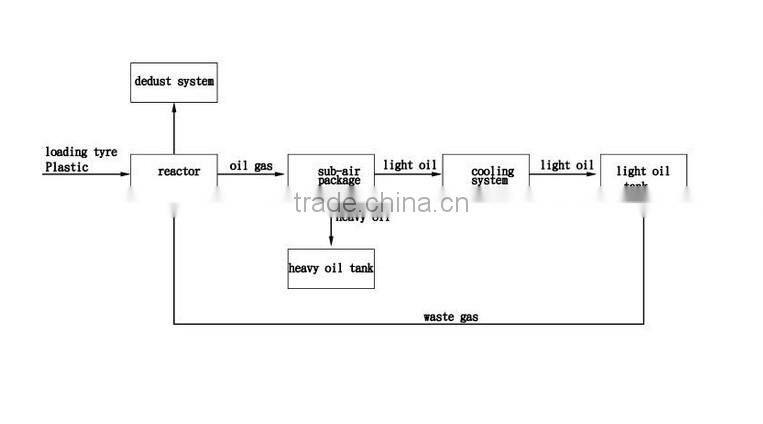

3. work-flow
4.Plastic oil paramter
Plastic oil parameter | ||
Density |
g/cm3 |
0.83-0.87 |
Freezing Point |
oC |
10 |
flash point |
oC |
40 |
Kinematic viscosity |
mPa.s |
8 |
Combustion value |
kJ/kg |
9500 |
5.How can we make pollution free?
a> waste-gas : during the process of pyrolysis , there will cause 5% waste-gas, but the waste-gas can be burnt again in the reactor as fuel materials to keep the temperature in the reactor, have you noticed the green hole in the reactor, the waste-gas enter into the hole and is burnt again. So there is no waste-gas at all.
b> Waste-water: there is a water-recycling system in the set of plant, all the process, the water can be used circulatory. So there is no waste-water in the process of pyrolysis
c> Bad smell: there will be some chemical substances feed into the catalysis tower and burnt together with the tires. It can get rid of bad smell and improve the quality of oil.
d> Emission controller: there is emission controller in the set of plant, it won’t cause dirty dust in the process of pyrolysis
