1.Plant parameters:
NO. |
Name |
Parameter |
1 |
The raw materials: |
waste tyres,/plastic, oil sludge |
2 |
Daily capacity: |
10 ton/day |
3 |
The size of reactor |
2800*6000mm 16mm thickness |
4 |
Reactor material |
Q345R |
5 |
Average oil productivity: |
30%-80%, |
6 |
Average carbon productivity: |
20%-35% |
7 |
Plastic oil rate |
30%-80% |
8 |
pyrolysis time |
6-8 hours |
9 |
Discharge time |
1.5 hour |
10 |
Feeding time |
3 hourS |
11 |
Cooling time |
3 hours |
12. |
Working pressure |
Normal /slightly negative |
13 |
Power |
18 kw |
14 |
Fuel |
Coal. Wood, gas etc |
15 |
Working area |
1000 square meters |
16 |
Total weight |
35 000kgs |
17 |
Reactor rotate speed |
0.25-0.4/min |
18 |
Noise |
No less than 85DB |
19. |
Certificate |
Ce,.iso, |
20. |
Carbon slag out |
Automatic |

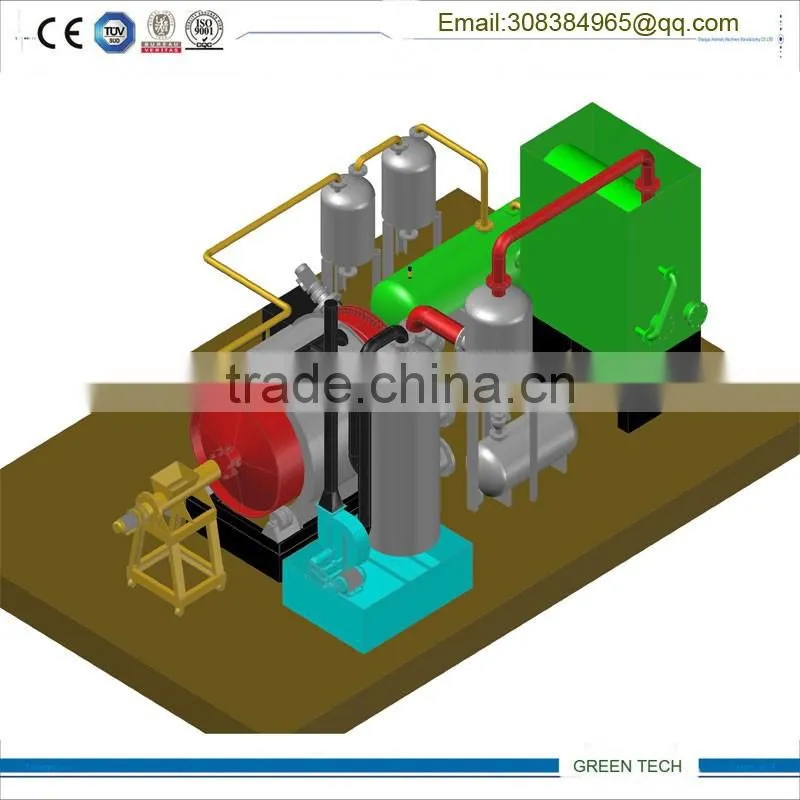

2.Pyrolysis work-flow:
|
1.Feed raw materials: The raw material can be waste tire/waste plastic/waste rubber. Always feed by the auto feeder.
|
|
2.Pyrolysis: Include a reactor and catalyst room. Heat the reactor by coal/wood/oil/natural gas. This part will produce high temperature oil gas, the oil gas then flow into the next system. |
|
3. Condensing: Oil gas come out from the reactor and catalyst chamber then cooling down in this part. Condensing system include condenser pipe, oil water separator, horizontal condenser and waste gas condenser. This will make the oil yield to the maximum. |
|
4.Waste gas recovery: This part mainly deal with the gas that cannot be condensed. The whole process is very steady and high efficiency. |
|
5. Discharge: After finished oil produce, the temperature of reactor can be cooled down, When the temperature falls down to 40 degree then carbon black can be discharged automatically by the way of anticlockwise rotate the reactor. The carbon black will drop into slag pool and then use screw conveyor to clean the slag pool. After discharging the carbon black, we can discharge the steel wire. There is steel wire hook in the auto-feeder, we only need put the steel wire hook into the reactor, and start the motor, the steel wire can be pulled out easily, there is no need for workers to contact the reactor, it is very convenient. |
3.Plant features:
1. ) Carbon slag using new tech, slag in sealing way, keep sure no carbon powder flay in air, completely pollution free. Carbon slag automatic and slag more fast than normal design
2 . ) Improved an simplified design of plant, more easy to use, and cut down plant cost
3. ) All parts including small parts we use high standard material to keep our quality for long term usage.
4.) Dedust system use latest design, no black smoke emit to air by chimney

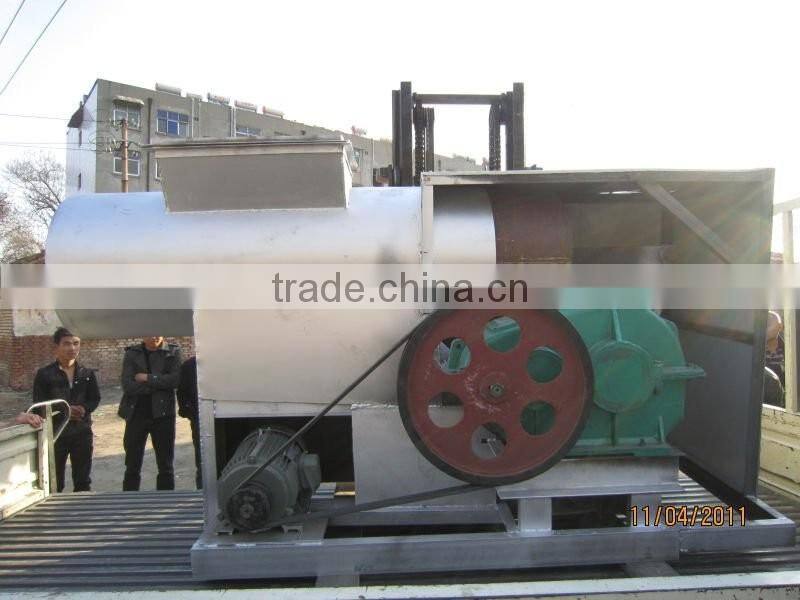

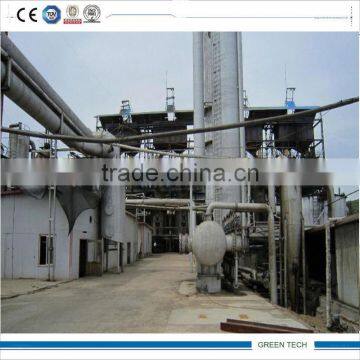

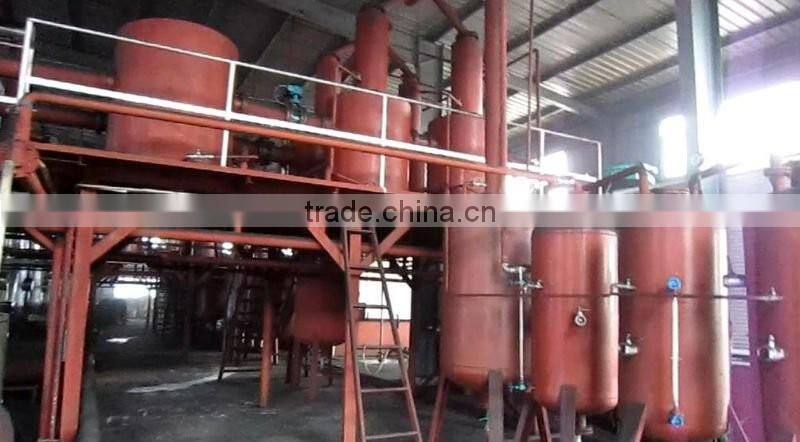

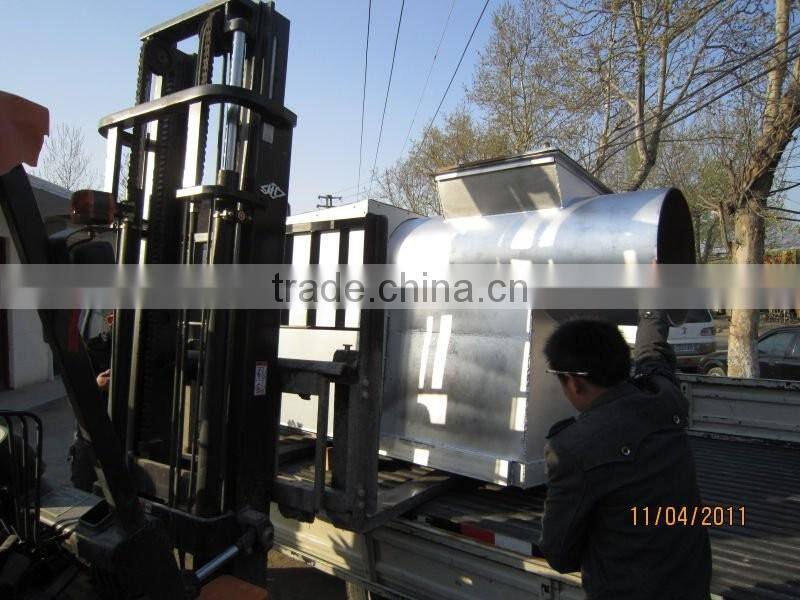

4.Instllation pictures:
5.Raw material can be recycled:

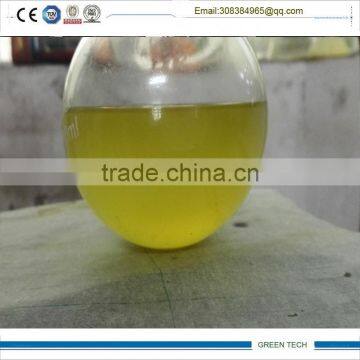

6.output oil
7.Plant specification:
Specification |
Capacity |
Raw material |
Heating material |
Working time (hrs) |
Shipped by |
XHZT-2200-6000 |
5Ton |
Waste tyres Cables Plastics Rubber Oil sludge |
Wood,coal ,oil,gas |
12 |
2*40HQ |
XHZT -2600-6000 |
8Ton |
15 |
1*40HQ+1*40FR |
||
XHZT -2600-6600 |
10Ton |
18 |
1*40HQ+1*40FR |
||
XHZT -2800-6000 |
10Ton |
18 |
1*40HQ+1*40FR |
||
XHZT -2800-6600 |
12Ton |
20 |
1*40HQ+1*40FR |
||
XHZT -2800-6600 |
15ton |
Medical waste |
|
22 |
1*40HQ+1*40FR |
Contiuous plant |
20Ton |
Other waste |
|
24 |
3*40HQ |
Contiuous plant |
60Ton |
|
|
24 |
5*40HQ |
