100% Continuous Pyrolisis Plant For City Waste Treatment Making Oil Engergy
- 20 Set / Sets per Month
- lianyungang qingdao shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Tire Machine | Tire Machine Type: | Tire Recycling Machine |
Place of Origin: | Henan, China | Brand Name: | XHZT | Model Number: | XHLX-40-60 |
Voltage: | 220/380V | Power(W): | 230kw | Dimension(L*W*H): | 12000*2500*2000MM |
Weight: | 45000KGS | Certification: | ISO,CO | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
100% Continuous Pyrolisis Plant For City Waste Treatment Making Oil Engergy
1. Plant Features:
1) widely usage
Can be used for tyre 5-10cm,plastic,rubber ,oil sludge, cooking waste ,live waste, oil sand ,oily soild
2) static pyrolysis ,getting higher quality oil, less dust in oil
3) large capacity
24hours produce 20-30 Ton material
4) continuous pyrolysis, no need cooling reactor, saving fuel, saving working time
5) The plant can working 25dyas*24hours without stop, fully continuous
6) Continuous feeding without stop
7) Continuous slag out without stop
8) Non-liquid gas can be reused to support heating for heating reactor , saving fuel energy
9) good pressure tightness, safe
2. Technical parameter
Reactor size | (L*W*H)12*2*2.5m |
volumn | 60M3 |
material | Q345R/Stainless steel |
Work pressure | Normal pressure/slightly negative pressure |
Process capacity /24hours | 60 Ton tyre |
40 Ton plastic | |
Oil sludge 40-60Ton | |
Oil sand 40-60TON | |
output | Base oil |
Working principle | Oxygen free pyrolysis |
workers | 1 |
power | 20/40kw |
voltage | 220v/380v |
Power consumption/24hours | 230 kw |
Water consumption | 4-6Ton |
Feeding time | Continuous feeding |
Carbon discharge time | Continuous slage out |
working life time | 4-5yeat |
Slag temperature | 150℃ |
Fuel | Gas, oil |
Pyrolysis way | Static pyrolysis, non-rotate |
Slag way | Continuous slag out |
Dust smoke temperature | 350℃ |
Pyrolysis temperature | 280-350℃ |
Max-temperature | 600℃ |
oil come temperature | 350℃ |
Raw material delivery speed | 0.4-2m/min |
3.Work-flow:
4.In-put raw material
City waste, life waste ,medical waste,oily waste, waste oil, sludge oil etc
tyre waste, rubber waste, plastic waste ,calbe skin,PE,PP,PS ABS,

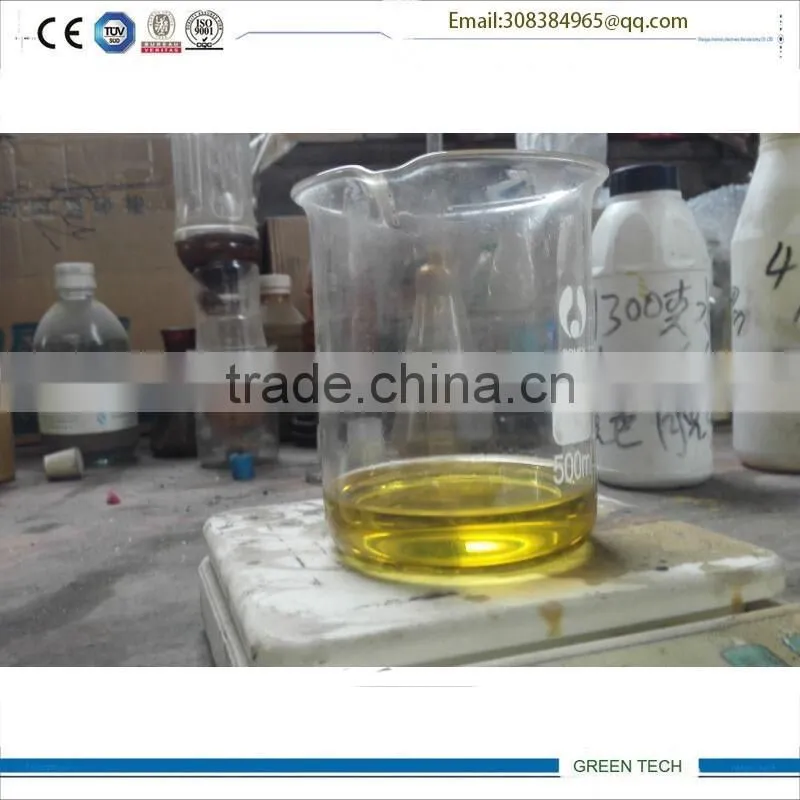

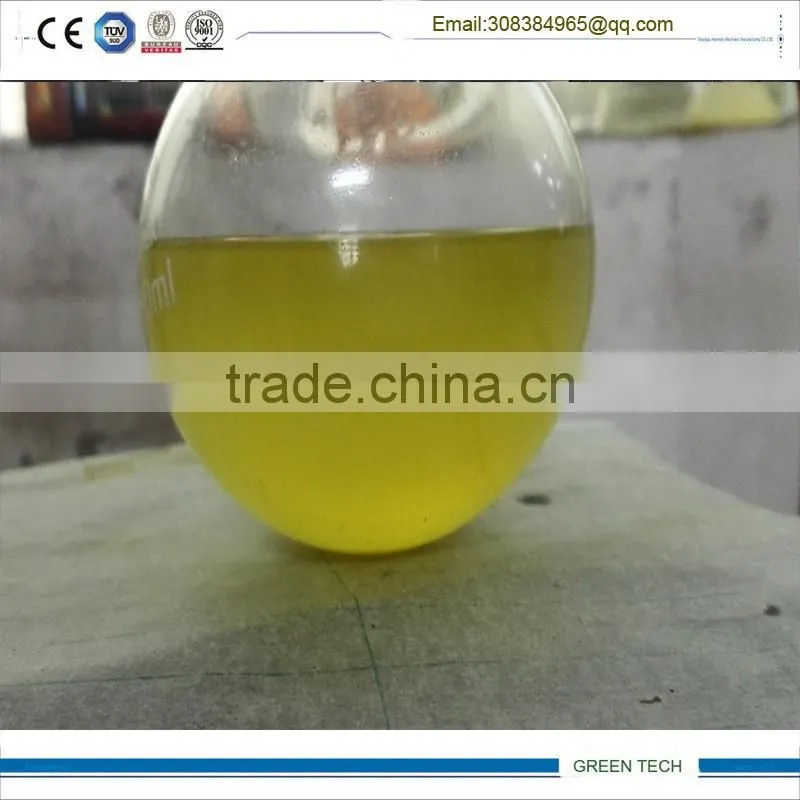

5.Out-put oil

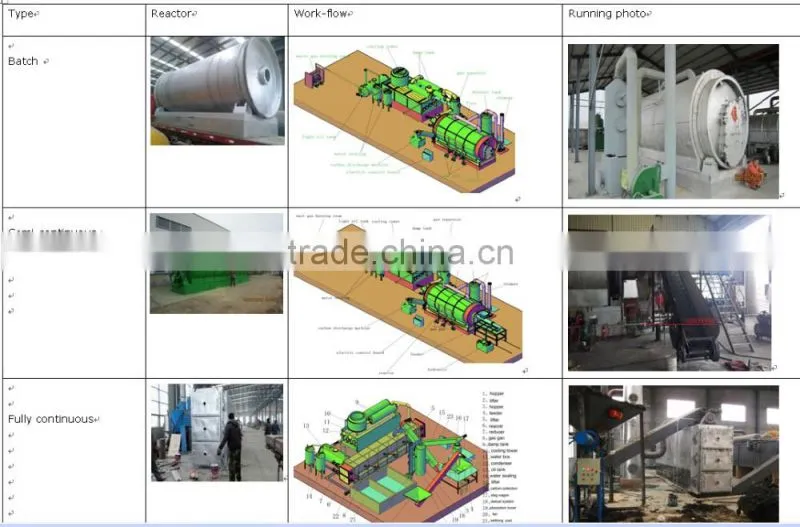

6.Working details:
batch type:
one day one batch, day time heating pyrolysis, night time cooling .
semi-continuous type:
First time feeding 10Ton and heating, after 8 or 6 hours feeding second time 6 Ton and heating and pyrolsyis for another 6 hours
then feeding third time 4 Ton . And continue heating, after 5hours, this 5 Ton raw material complete pyrolsyised ,then cooling down reactor , and slag out. Semi-continuous pyrolysis means feeding 3 times (intermittent) and slag one time.
Compare to batch type, this semi-continuous plant just add auto feeder. this is not real meaning continuous.
fully continuous pyrolsysis,
continuous feeding without stop and the plant running 24hours*26dayst untill plant overhual.
continuous feeding , and continuous slag out.
7.Avout us
Shangqiu Harmony Machinery Manufacturting Co.,LTd. is a professional manufacturer engaged in the research, development, production, sale and service of Environmental machines, waste tire/rubber/plastic pyrolysis equipment, waste oil distillation machines, etc.
We have rich experience(8 years experience) in making and installation shangqiu harmony is the top 10 enterprise in disposing waste rubber and plastic and has been cooperated with one South Korea company to dispose waste plastic . The company has gained rich experience and achievement in processing waste solid. This project in dealing with city living waste has been approved by South Korea government and the continuous equipment has been under testing in Korea. The production line of processing level 2 waste tyre with automatic control has been under testing in Hong Kong.
our products are:
Pyrolysis plant | Type | Daily capacity | Used for | Final Product and usage |
Batch type | 3ton 5Ton 10ton 12ton 15ton 20ton | Waste tyre Plastic Rubber Oil sludge Oily waste Others |
Fuel oil
Used for heating boiler as furnace oil Or refined for distillation oil | |
Semi-continuous type | 15Ton, 20Ton | |||
Fully continuous type | 20ton 30ton 60ton | |||
Special type | 20Ton 15ton | |||
Distillation plant |
Fully continuous type | 3ton 5ton 10ton 15ton 20ton 30ton 40ton
| Used motor oil Used lube Washing parts oil Pyrolysis oil Crude oil Others
| A.. base oil for heavy vehicles
B. diesel for car and other |
CUSTOMERIZE PLATN ARE WELCOME
