.OUR ADVANTAGE:
a. we use the underground dedusting system , the main part of the dedusting system is called strong spray tower . it took us 4 years to get the national patent of the strong spray tower
b. we use 2 condensers and one set of calandria cooling system to make the cooling line longer and cooling surface wider to get more oil. the calandria is made from galvanized tube

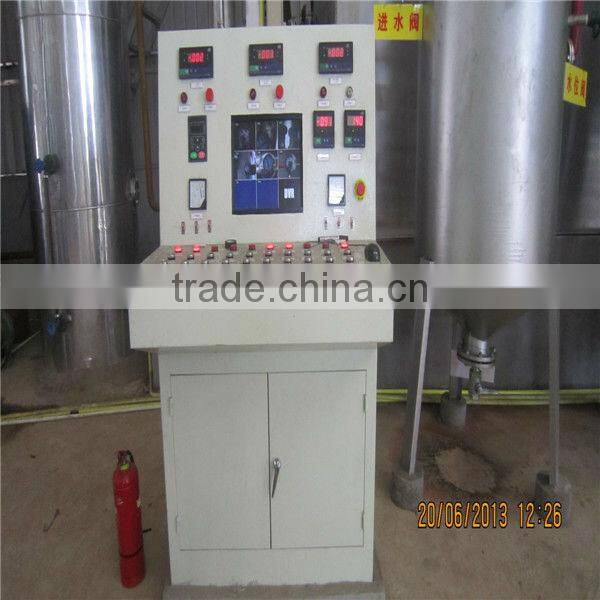

d.there is frequency device in the control pannel which can adjust the speed of the reactor
e. the security system is composed of two water seals, pressure sensors, temperature sensors and safety valves
f.Integration case to keep the reactor warm
g.we adopt outer gearinggearwheel for the reactor drive
h.we adop supporting wheelwhich can bear heavy load!
I:It works in nagative pressure system ,low down pyrolysis temperature,short pyrolysis time,ensure the saftey of process
j:slaging and steel removal at same time! save time
k:continous feeding ,save labour
L:10-15tons capacity
BRIEF DESCRIPTION:
5.1 .Model and detail
NO | Name | Parameter |
1 | The raw materials: | waste tires, plastics and oil sludge,city solid waste |
2 | Total Capacity: | 15 tons/day.,20 tons/day |
3 | the size of reactor: | 2.2*6.0m, 2.2*8m |
4 | Average oil productivity | diesel oil: 40%-45% |
5 | Heating material | Wood,coal ,oil,gas |
6 | Feeding | Continuous feeding |
7 | Working pressure | Slightly nagative pressure |
8 | Cover land | 200 square meters |
5.2.High configuration

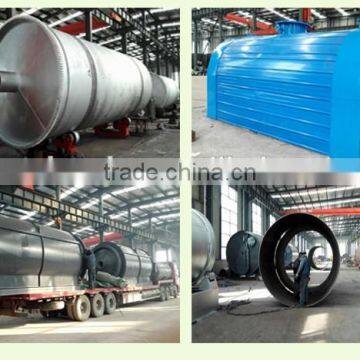

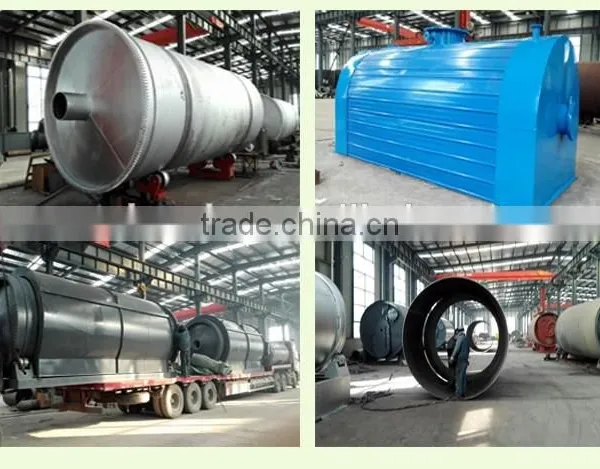

The reactor is made of Q345R alloy steel with 16mm thickness
Strong spray tower stainless steel
Activated carbon adsorption tower stainless steel
Draft fan stainless steel

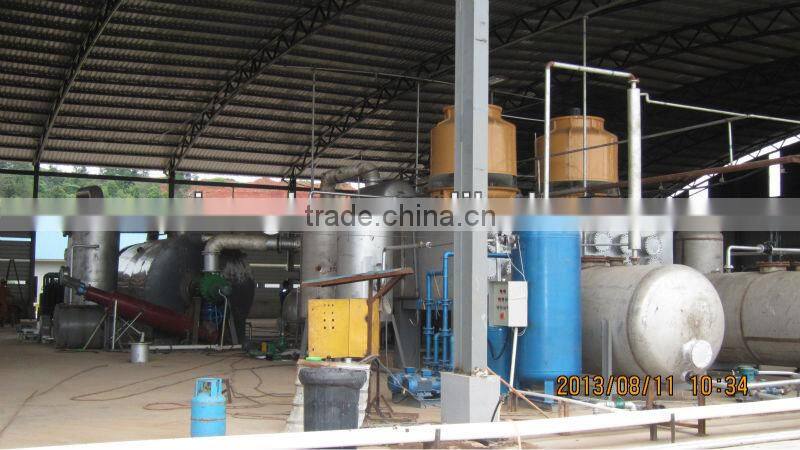

Cooling system made of 2condensor ,cooling tower &1set of calandria system
5.3. The shipment and the containers
Model | Reactor material | Size | Container |
XHZT-CP15 | Q345R alloy steel | 2200*6000*16 | 3*40HQ |
XHZT-CP20 | Q345R alloy steel | 2200*8000*16 | 4*40HQ |
5.4. Delivery time:20-25days after we receive deposit.
5.5. FOB Port (China)
FOB lianyungang port, Jiangsu Province,China!
We can also arrange port according to customer
5.6 after-sales service
(1)We will provide the foundation drawings and catalyst formular once we receive deposit
(2)installation
we wil send 1-2engineer to your local for guide installation and debugging
3)In normal use condition ,reactor warranty:3years,lifelong time5-6years!
Oil after- treatment
