New Tech Fully continuous Pyrolysis Oil To Diesel Oil Refinery Plant Convert Black Oil To Yellow
- 30 Set / Sets per Month
- lianyungang&qingdao port
- T/T L/C D/P D/A Credit Card PayPal
- Waste Oil Regenerating Equipment for Various Dielectric Oils
- BZ Transformer oil regeneration Equipment
- Transformer OLTC On-load Tap Changer Oil Purifier//separator/Regeneration/Dehydration Machine
- Insulation Oil Regeneration Machine
- On-load Tap Changer Oil Filter Oil Filtration Machine Oil Decanter
- Specilize Model BZ Transformer Oil Regeneration Unit
Product Details
Condition: | New | Flow: | 50L/H | Working Pressure: | slightly negative |
Place of Origin: | Henan, China | Brand Name: | xhzt | Model Number: | xhzl-10 |
Usage: | Other, waste engine oil refinery | Voltage: | 380/220V, 380/220v | Power(W): | 18KW |
Dimension(L*W*H): | 4000*2200*2750mm | Weight: | 30000KGS | Certification: | CE,ISO |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

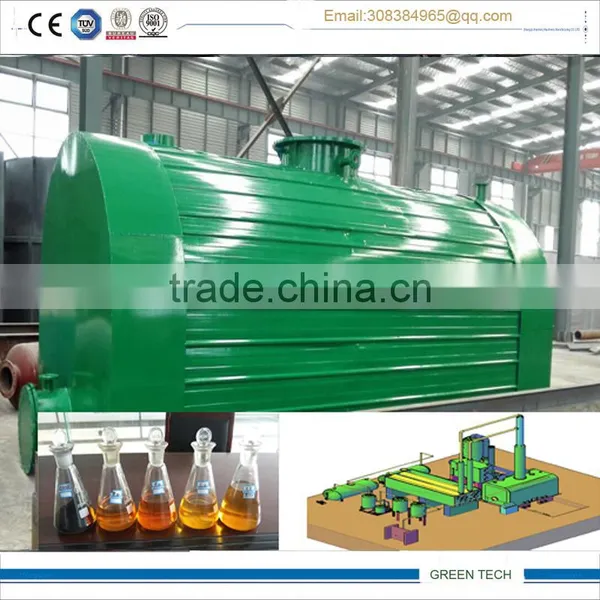

Fully continuous Pyrolysis Oil To Diesel Oil Refinery Plant Convert Black Oil To Yellow
1.Technical parameter of the plant
NO. | Name | Parameter |
1 | The raw materials: | Fuel oil /waste machine oil / transformer oil/waste lube |
2 | Out put | Base oil |
3 | Daily capacity: | 10ton /day |
4 | The size of reactor(D*L) | 2200*4000mm |
6. | Reactor material | Q345R |
7. | Final oil out rate | 75-85 % |
8. | Feeding way | continuous |
9 | Slag out | Auto continuous |
10 | Working area | 500-600 square meters |
11 | Cooling way | By water |
12. | Heating way | Direct/indirect |
13 | Working presure | Normal/slightly negative |
14 | Effective working temperature | 280-400℃ |
15 | Power | 15kw |
16 | voltage | 220v/380v |
17 | Fuel to heating | Coal wood, gas oil, etc |
18 | type | Pollution free |
19. | certificate | CE.ISO |
2.Plant work flow
3.Plant technical features:
1.By this technology we can remove sulfer in oil, by disitllaiton way and catalyst way to remove sulfur in oil.
2.remove bad smell in oil, this is very important for oil producer.
3.make oil good light color,imporve oil quality and make iul more clear and pure.
4. negative pressure disitllaiton , saving fuel.and make sure non-explosion.
5.New technology , 24hours non-stop distillation, this also saving fuel and saving heating time .
6.Good after serverivce, over-sea after sevice is avaliable .
7.New tech of dedust system, make sure pollution free .
4.Running plants
5.Other specicifaciton for your references:
NO. | Model | Raw material | capacity |
1 | DYZL-05 | Used engine oil ,tyre oil ,plastic oil,crude oil
| 5 MT |
2 | DYZL-10 | 10 MT | |
3 | DYZL-15 | 15MT | |
4 | DYZL-20 | 20 MT | |
5 | DYZL-25 | 25 MT | |
6 | DYZL-30 | 30 MT |
6.Oil Parameter
Project | diesel | standard |
Oxidation stability | 2.2 | ≤2.5 mg/100ml |
Sulfur content | 0.3 | M/m≤0.2 |
10% steamed residual carbon residue | 0.33 | M/m≤0.3 |
Ash content (10%) | 0.16 | %m/m≤0.01 |
Waste content (10%) | traces | / |
Mechanical impurities | / | / |
Density (g/ml) | 0.85 | 0.83-0.87 |
Solidifying point ( ℃) | -10 | 0 |
Flash point (closed ) ( ℃) | 45 | 55 |
Movement viscosity | 3.5 | (20 ℃) mm2/s 3.0-8.0 |
Combustion value(Kcal) | 9500 | 8500 |
colority | 1.2 | ≤3.5 |
cetane number | 40 | 45 |
Acidity | / | MGkoh/100ml≤7 |
7.Certificates
8.Our factory
8.Plant features
1.24hours-non stop, can continuous work for many days, saving fuel
2.Negative presusre , saving fuel and make sure safety
3.New style of dedust system , keep pollution free, 3-leve dedust system, strong spray tower,cylone dedust system and active carbon dedust system.to make sure polltion free.
4.No bad sell inside oil , we take new tech to remove bad order inside oil .
5.One machine can be used for several material:
such as pyrolysis oil. used engine oil, balck oil ,crude oil, oil sludge etc
6. High oil rate out put .
