2016 New Style Distillation Type (Vehicle ) Oil Refining Machinery For Waste Oil, Crude Oil ,Pyrolysis Oil To Diesel

2016 New Style Distillation Type (Vehicle ) Oil Refining Machinery For Waste Oil, Crude Oil ,Pyrolysis Oil To Diesel thumbnail-1
2016 New Style Distillation Type (Vehicle ) Oil Refining Machinery For Waste Oil, Crude Oil ,Pyrolysis Oil To Diesel thumbnail-2
2016 New Style Distillation Type (Vehicle ) Oil Refining Machinery For Waste Oil, Crude Oil ,Pyrolysis Oil To Diesel thumbnail-3
2016 New Style Distillation Type (Vehicle ) Oil Refining Machinery For Waste Oil, Crude Oil ,Pyrolysis Oil To Diesel thumbnail-4
2016 New Style Distillation Type (Vehicle ) Oil Refining Machinery For Waste Oil, Crude Oil ,Pyrolysis Oil To Diesel thumbnail-5
2016 New Style Distillation Type (Vehicle ) Oil Refining Machinery For Waste Oil, Crude Oil ,Pyrolysis Oil To Diesel thumbnail-6
2016 New Style Distillation Type (Vehicle ) Oil Refining Machinery For Waste Oil, Crude Oil ,Pyrolysis Oil To Diesel photo-1
2016 New Style Distillation Type (Vehicle ) Oil Refining Machinery For Waste Oil, Crude Oil ,Pyrolysis Oil To Diesel photo-2
2016 New Style Distillation Type (Vehicle ) Oil Refining Machinery For Waste Oil, Crude Oil ,Pyrolysis Oil To Diesel photo-3
2016 New Style Distillation Type (Vehicle ) Oil Refining Machinery For Waste Oil, Crude Oil ,Pyrolysis Oil To Diesel photo-4
2016 New Style Distillation Type (Vehicle ) Oil Refining Machinery For Waste Oil, Crude Oil ,Pyrolysis Oil To Diesel photo-5
2016 New Style Distillation Type (Vehicle ) Oil Refining Machinery For Waste Oil, Crude Oil ,Pyrolysis Oil To Diesel photo-6
US$ 50,000 - 85,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Flow:
50L/H
Working Pressure:
slightly negative
Contact Supplier Request Quote Chat Now
Shangqiu Harmony Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
lianyungang&qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Flow 50L/H
Working Pressure slightly negative
Place of Origin Henan, China
Brand Name xhzt
Model Number xhzl-10
Usage Other, waste engine oil refinery
Voltage 380/220V, 380/220v
Power(W) 18KW
Dimension(L*W*H) 4000*2200*2750mm
Weight 30000KGS
Certification CE,ISO
After-sales Service Provided Engineers available to service machinery overseas

Distillation Type  Oil Refining Machinery For Waste oil, Crude Oil ,Pyrolysis oil To Diesel

1.Technical parameter of the plant

NO.

Name

Parameter

1

The raw materials:

Fuel oil /waste machine oil / transformer oil/waste lube

2

Out put

Base oil

3

Daily capacity:

10ton /day

4

The size of reactor(D*L)

2200*4000mm

6.

Reactor material

Q345R

7.

Final oil out rate

75-85 %

8.

Feeding way

continuous

9

Slag out

Auto continuous

10

Working area

500-600 square meters

11

Cooling way

By water

12.

Heating way

Direct/indirect

13

Working presure

Normal/slightly negative

14

Effective working temperature

280-400℃

15

Power

15kw

16

voltage

220v/380v

17

Fuel to heating

Coal wood, gas oil, etc

18

type

Pollution free

19.

certificate

CE.ISO

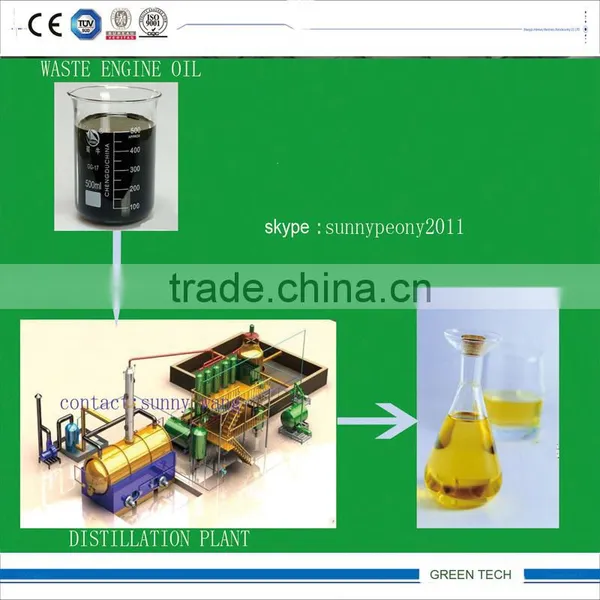

2.Plant work flow

2016 New Style Distillation Type (Vehicle ) Oil Refining Machinery For Waste oil, Crude Oil ,Pyrolysis oil To Diesel

2016 New Style Distillation Type (Vehicle ) Oil Refining Machinery For Waste oil, Crude Oil ,Pyrolysis oil To Diesel

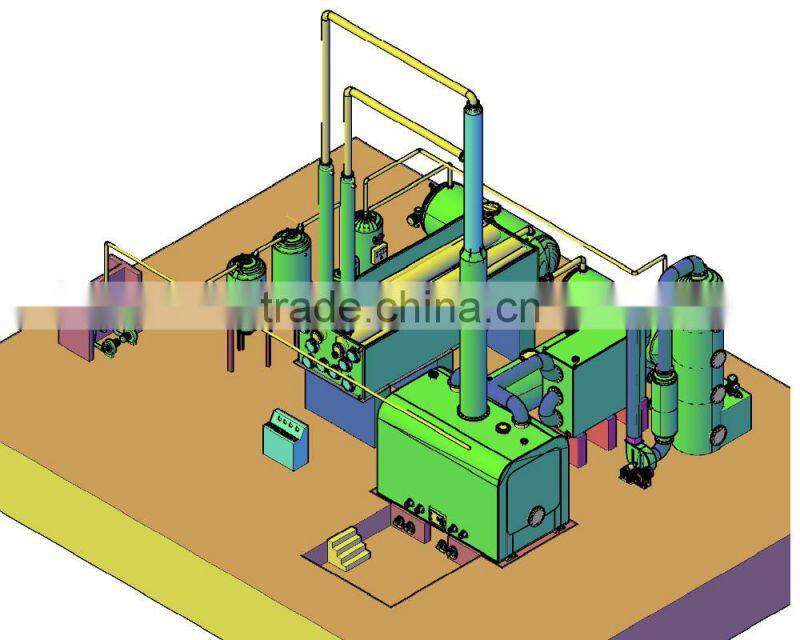

3.Plant  technical features:

1.By this technology we can remove sulfer in oil, by disitllaiton way and catalyst way to remove sulfur in oil.

2.remove bad smell in oil, this is very important for oil producer.

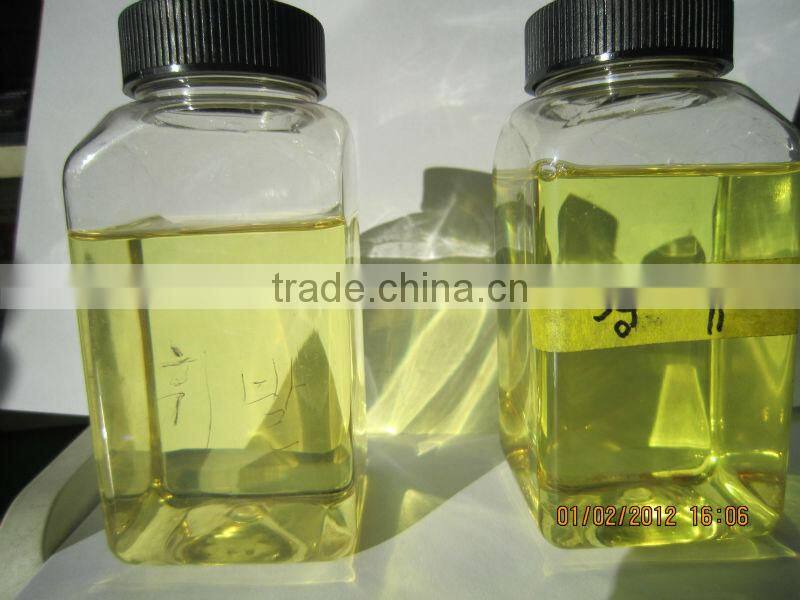

3.make oil good light color,imporve oil quality and make iul more clear and pure.

2016 New Style Distillation Type (Vehicle ) Oil Refining Machinery For Waste oil, Crude Oil ,Pyrolysis oil To Diesel

4. negative pressure disitllaiton , saving fuel.and make sure non-explosion.

5.New technology , 24hours non-stop distillation, this also saving fuel and saving heating time .

6.Good after serverivce, over-sea after sevice is avaliable .

7.New tech of dedust system, make sure pollution free .

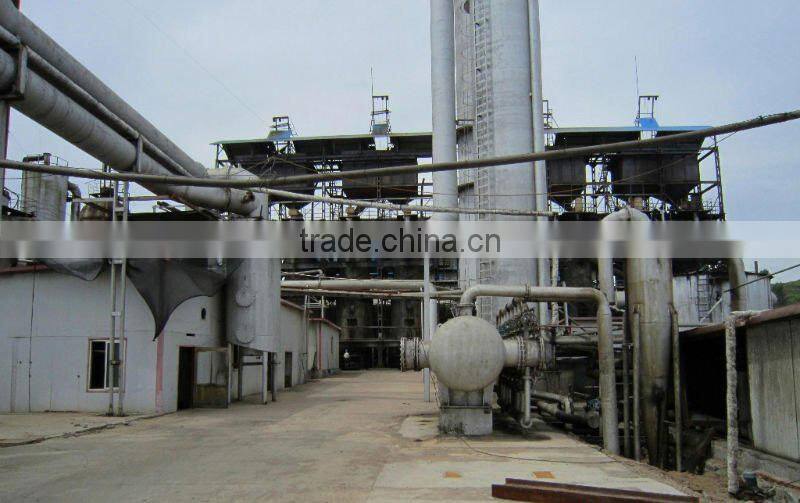

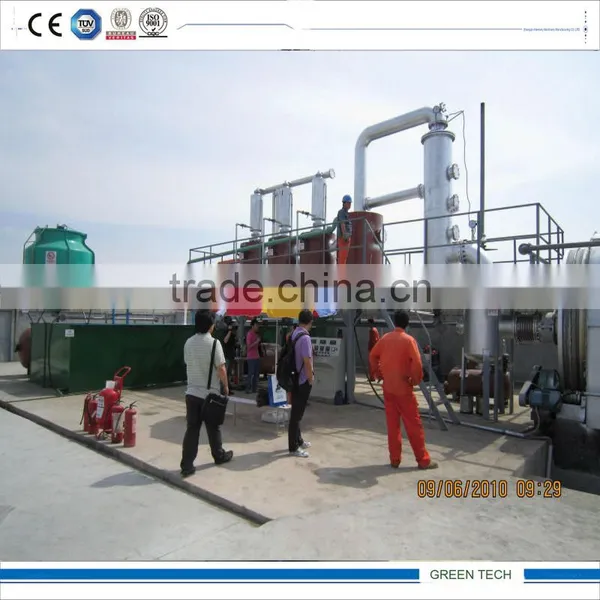

4.Running plants

2016 New Style Distillation Type (Vehicle ) Oil Refining Machinery For Waste oil, Crude Oil ,Pyrolysis oil To Diesel

5.Other specicifaciton for your references:

NO.

Model

Raw material

capacity

1

DYZL-05

Used engine oil ,tyre oil ,plastic oil,crude oil



5 MT

2

DYZL-10

10 MT

3

DYZL-15

15MT

4

DYZL-20

20 MT

5

DYZL-25

25 MT

6

DYZL-30

30 MT

6.Oil Parameter



Project

diesel

standard

Oxidation stability

2.2

≤2.5 mg/100ml

Sulfur content

0.3

M/m≤0.2

10% steamed residual carbon residue

0.33

M/m≤0.3

Ash content (10%)

0.16

%m/m≤0.01

Waste content (10%)

traces

/

Mechanical impurities

/

/

Density (g/ml)

0.85

0.83-0.87

Solidifying point ( ℃)

-10

0

Flash point (closed ) ( ℃)

45

55

Movement viscosity

3.5

(20 ℃) mm2/s

3.0-8.0

Combustion value(Kcal)

9500

8500

colority

1.2

≤3.5

cetane number

40

45

Acidity

/

MGkoh/100ml≤7

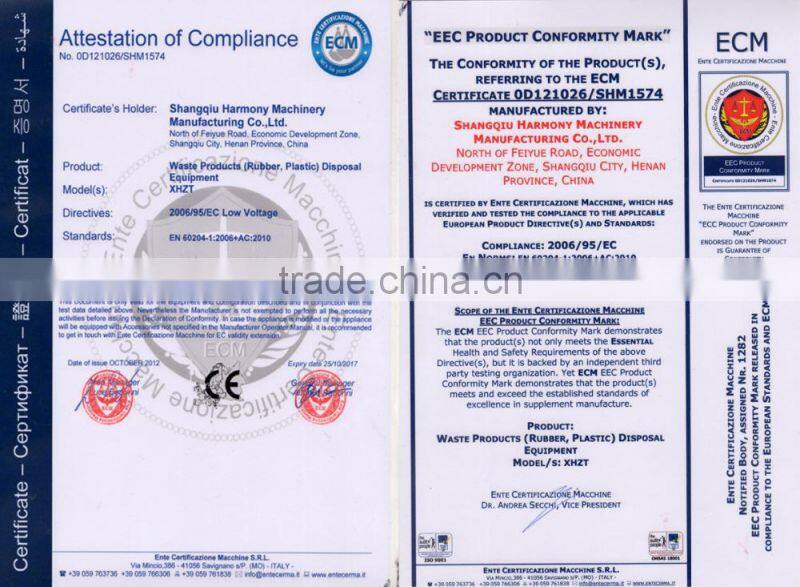

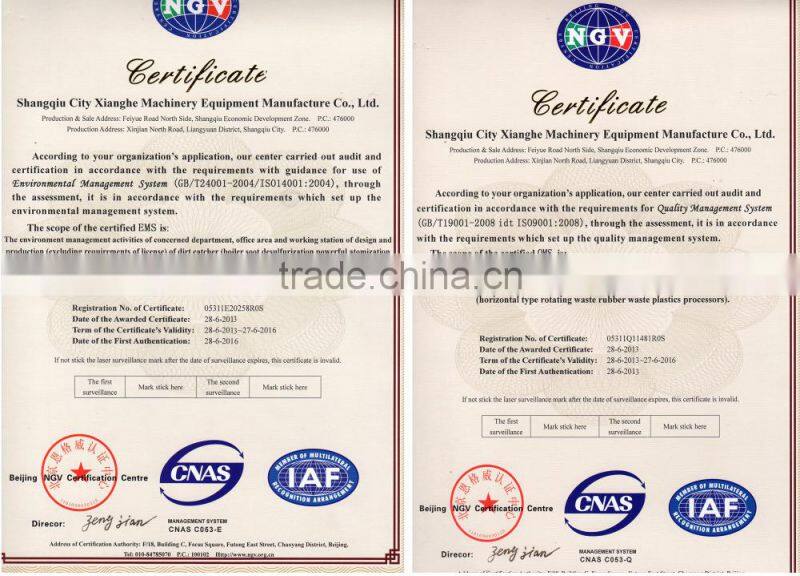

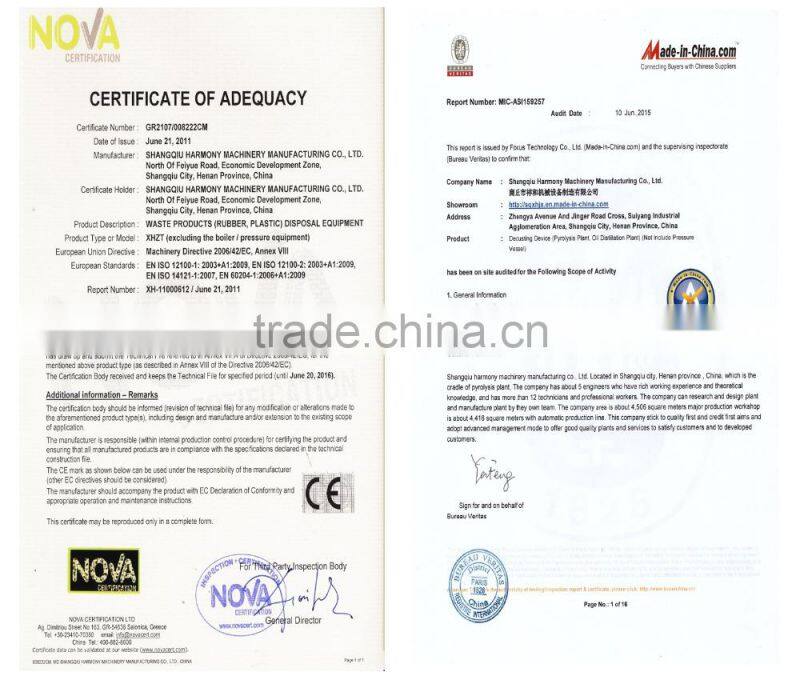

 7.Certificates

 2016 New Style Distillation Type (Vehicle ) Oil Refining Machinery For Waste oil, Crude Oil ,Pyrolysis oil To Diesel2016 New Style Distillation Type (Vehicle ) Oil Refining Machinery For Waste oil, Crude Oil ,Pyrolysis oil To Diesel2016 New Style Distillation Type (Vehicle ) Oil Refining Machinery For Waste oil, Crude Oil ,Pyrolysis oil To Diesel

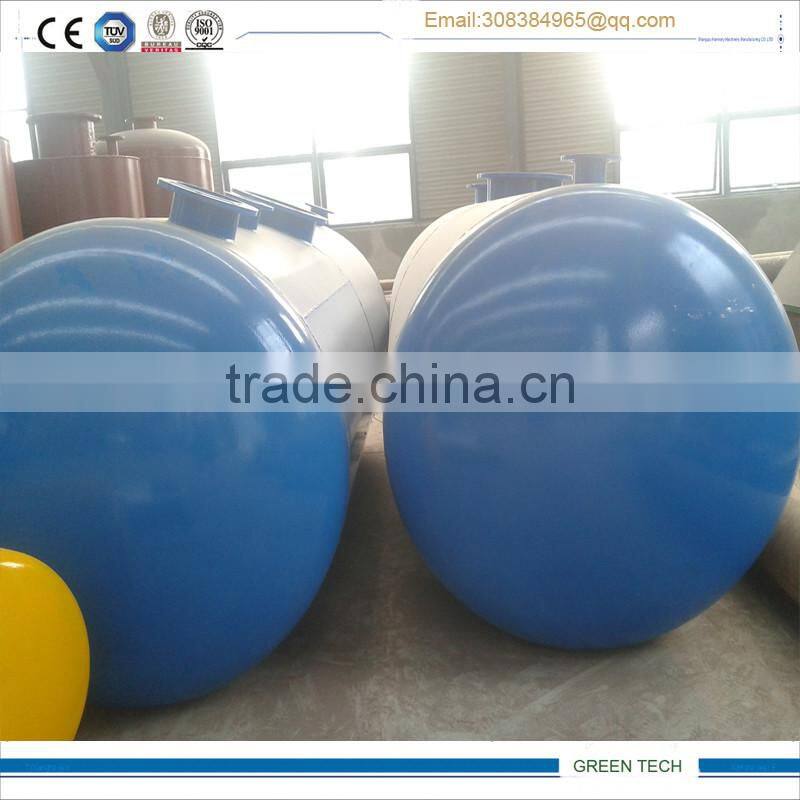

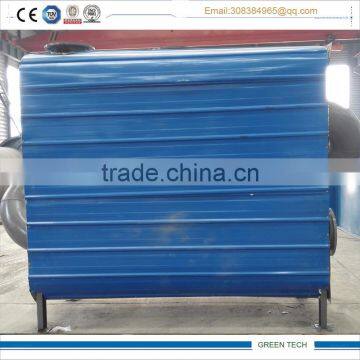

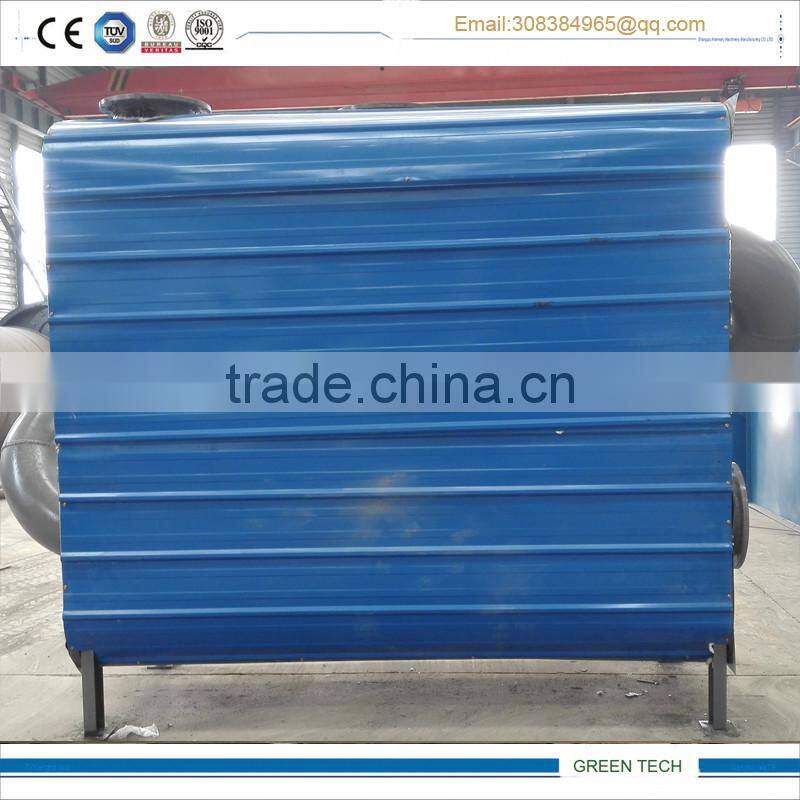

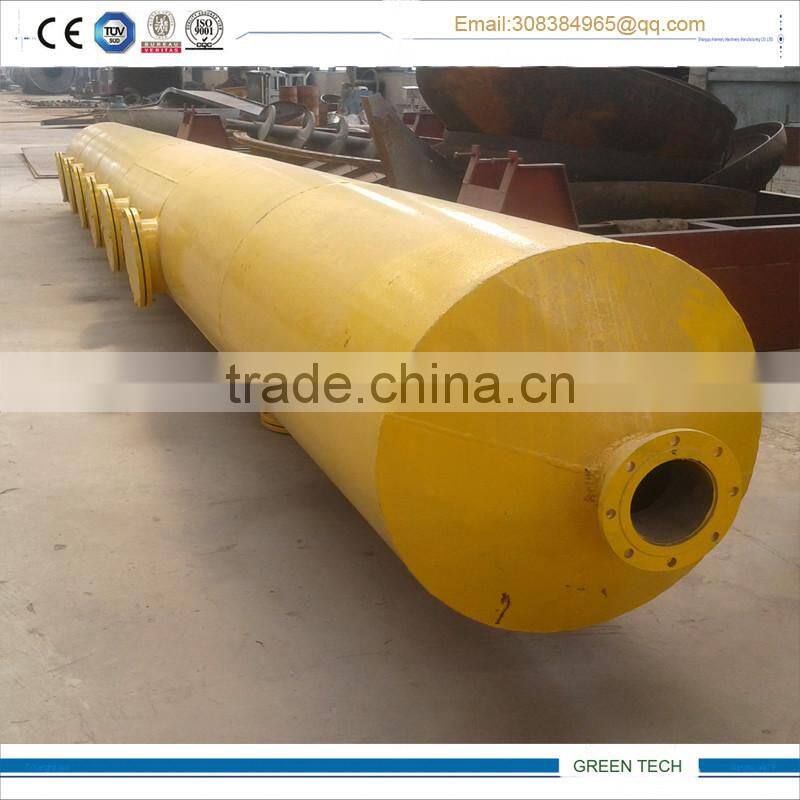

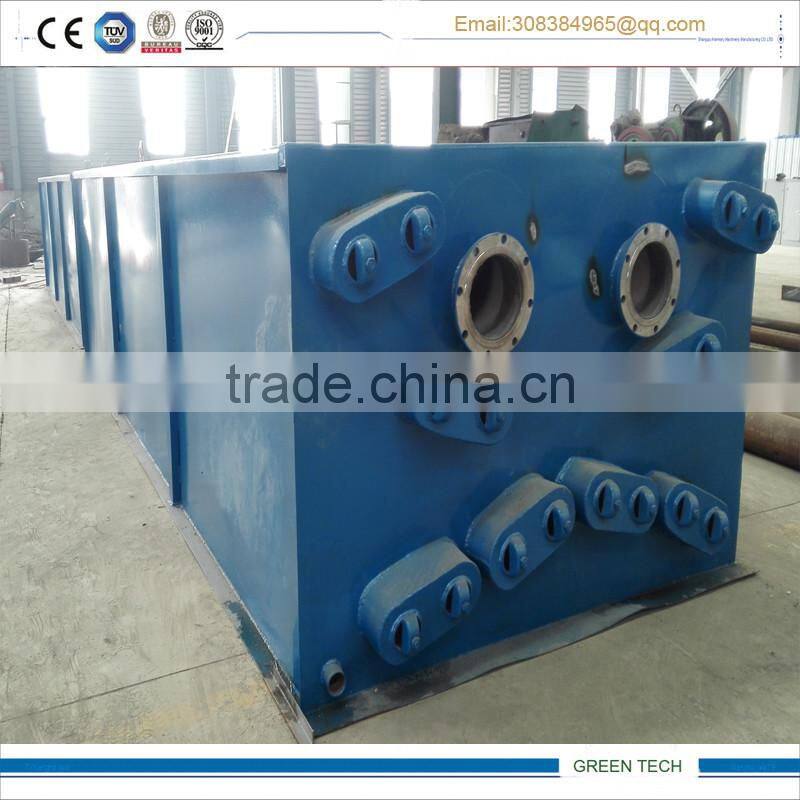

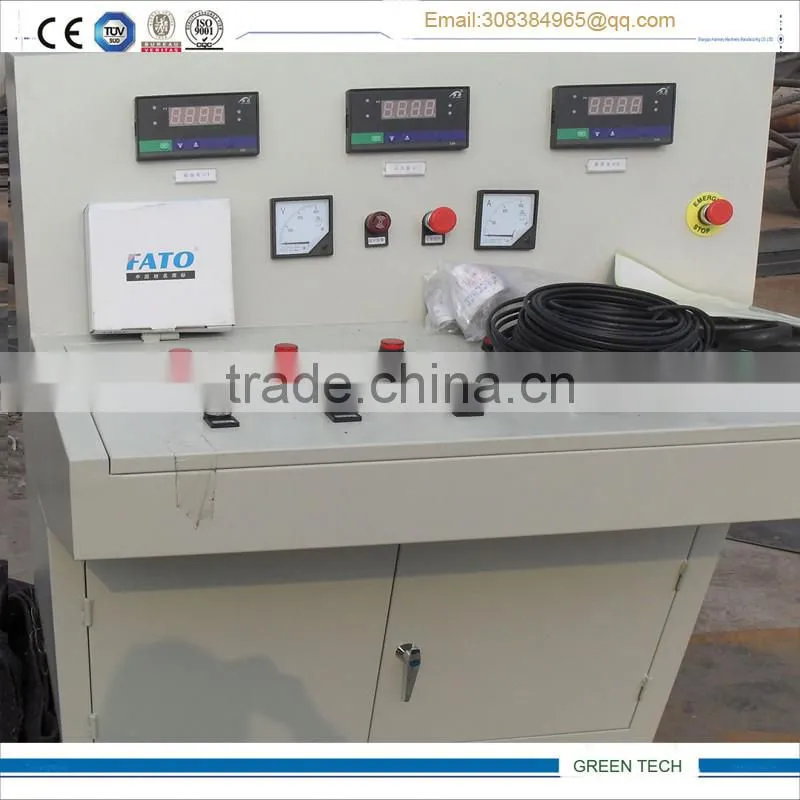

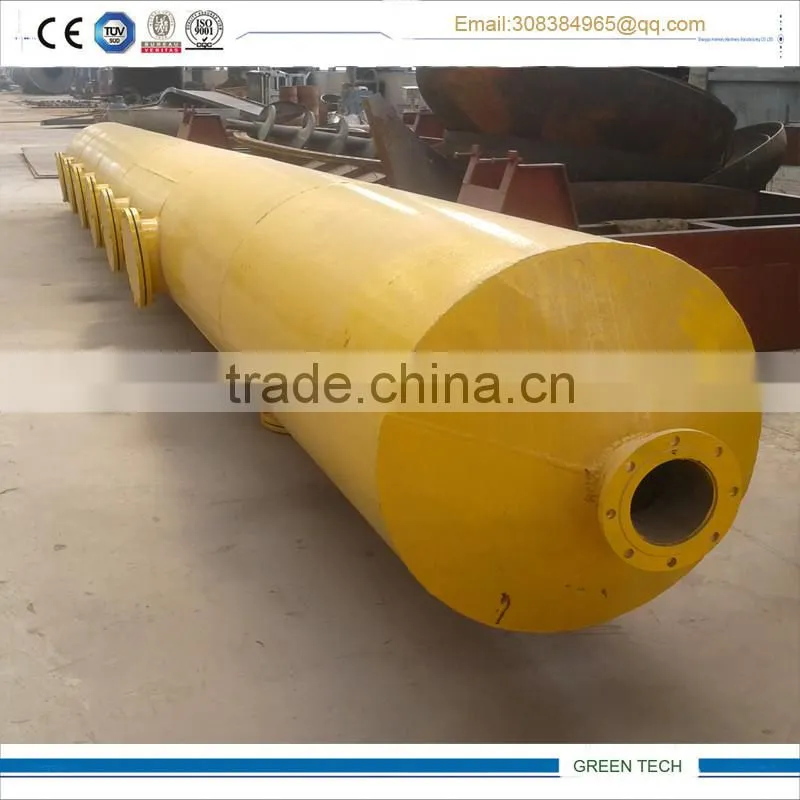

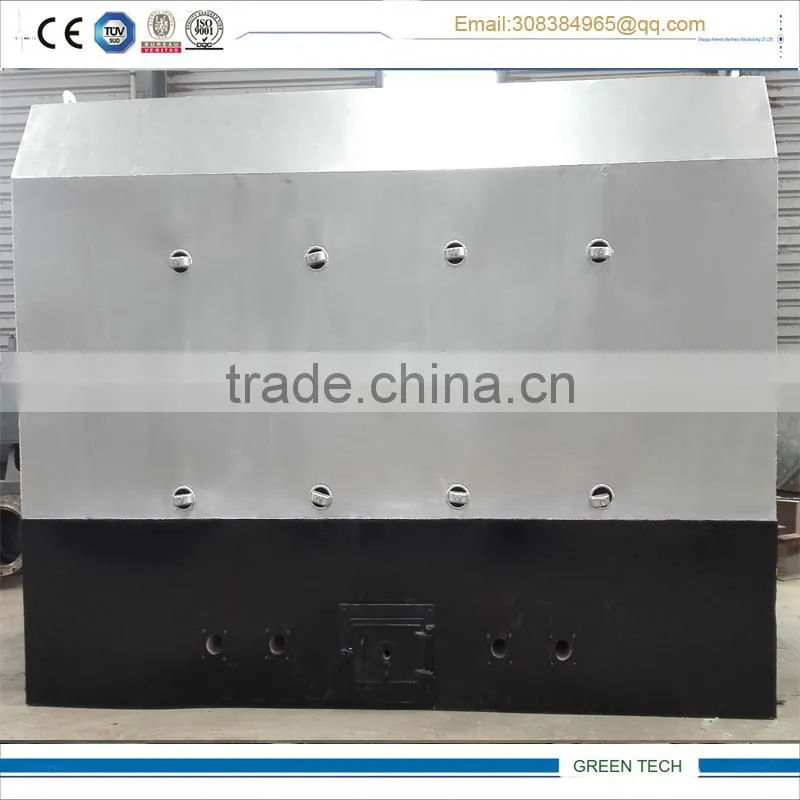

 8.Major parts

2016 New Style Distillation Type (Vehicle ) Oil Refining Machinery For Waste oil, Crude Oil ,Pyrolysis oil To Diesel

 2016 New Style Distillation Type (Vehicle ) Oil Refining Machinery For Waste oil, Crude Oil ,Pyrolysis oil To Diesel2016 New Style Distillation Type (Vehicle ) Oil Refining Machinery For Waste oil, Crude Oil ,Pyrolysis oil To Diesel2016 New Style Distillation Type (Vehicle ) Oil Refining Machinery For Waste oil, Crude Oil ,Pyrolysis oil To Diesel2016 New Style Distillation Type (Vehicle ) Oil Refining Machinery For Waste oil, Crude Oil ,Pyrolysis oil To Diesel2016 New Style Distillation Type (Vehicle ) Oil Refining Machinery For Waste oil, Crude Oil ,Pyrolysis oil To Diesel



9.Plant features

1.24hours-non stop, can continuous work for many days, saving fuel

2.Negative presusre , saving fuel and make sure safety

3.New style of dedust system , keep pollution free, 3-leve dedust system, strong spray tower,cylone dedust system and active carbon dedust system.to make sure polltion free.

4.No bad sell inside oil , we take new tech to remove bad order inside oil .

5.One machine can be used for several material:

such as pyrolysis oil. used engine oil, balck oil ,crude oil, oil sludge etc

6. High oil rate out put .
