Help CenterNew Condition Black Oil and Waste Oil Refinery Distillation Equipment 10TPD
Related Products
-
Continuous Pyrolysis Oil Refinery Fuel Oil Distillation Plant 10-15tpdUS$ 38,000 - 48,000MOQ: 1 Set -
Environmental Distillation Equipment for Pyrolysis Oil Refining From Waste TyresUS$ 38,000 - 48,000MOQ: 1 Set
-
Furnace Oil Refinery Equipment Recycling Oil From Scrap Tire/plastic/rubberUS$ 58,000 - 98,000MOQ: 1 Set
-
Good Performance Oil Purifier Type Refinery Used Oil Distillation Plant 15TPDUS$ 60,000 - 95,000MOQ: 1 Set
-
Energy Saving Green Tech Continuously 10TPD Engine Oil Distillation PlantUS$ 55,000 - 85,000MOQ: 1 Set

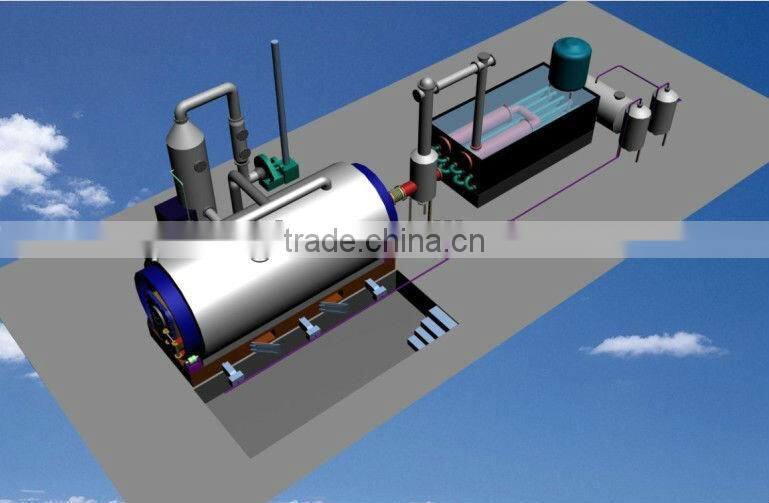

Main equipment list
1.Raw oil tank
This device is to store raw oil ,such as pyrolysis oil, waste engine oil,
black oil, waste lubrication oil, oil sludge etc.
2.Preheating system
This system will heat the raw oil and after heating this oil coming into disitllation reactor .this device use the hot smoke produced by dedust system ,this device can saving 1/3 fuel and saving disitllation time
3.Distillation reactor
This is the most important device , here the raw oil after preheating and go inside this reactor without stop. the reactor is horizontal ,and non-rotate when distillate oil .
this horizontal shape can giving bigger heating area then that of vertical reactor .so it can accelerate the disitllation .
tion final oil
4.Catalyst tower
This system we put catalyst chemical inside it and when distillate oil these chemical will make oil changed.
5.Distillaton tower
During distillation ,the oil will go up to certain altitude and in certain heating temperature, the altitude and temperature same important for oil change
6.Cooling device for oil
Cool oil by cool water .
The cooling system include water pool, condenser and cooling pipes and cooling tower, cooling tower is used for cooling the water inside water pool.
This cooling system’s water is recycling ,so water is recycled .
7.Final oil collection tank
These tanks used for collec
8.Safety device
This device is very important , it can keep anti-fire , it sure no backfire.
And the whole system is anti-explosion.
9. Electric Control system
This system can control the whole working system, it is easy to use. And very convenient
10.Heavy oil collection tank
Used for collection heavy oil after distillation.
oil index
Project | diesel | standard |
Oxidation stability | 2.2 | ≤2.5 mg/100ml |
Sulfur content | 0.3 | M/m≤0.2 |
10% steamed residual carbon residue | 0.33 | M/m≤0.3 |
Ash content (10%) | 0.16 | %m/m≤0.01 |
Waste content (10%) | traces | / |
Mechanical impurities | / | / |
Density (g/ml) | 0.85 | 0.83-0.87 |
Solidifying point ( ℃) | -10 | 0 |
Flash point (closed ) ( ℃) | 45 | 55 |
Movement viscosity | 3.5 | (20 ℃) mm2/s 3.0-8.0 |
Combustion value(Kcal) | 9500 | 8500 |
colority | 1.2 | ≤3.5 |
cetane number | 40 | 45 |
Acidity | / | MGkoh/100ml≤7 |
The shipment and the containers
2200*6000 | two 40HQ containers |
2200*6600 | |
2600*6000 | one 40FR open container and one 40HQ container |
2600*6600 | |
2800*6000 | |
2800*6600 |
FOB Port (China)
FOB lianyungang port, Jiangsu Province,China!
We can also arrange port according to customer
after-sales service
(1)We will provide the foundation drawings and catalyst formular once we receive deposit
(2)installation
we wil send 1-2engineer to your local for guide installation and debugging
3)In normal use condition ,reactor warranty:3years,lifelong time5-6years!

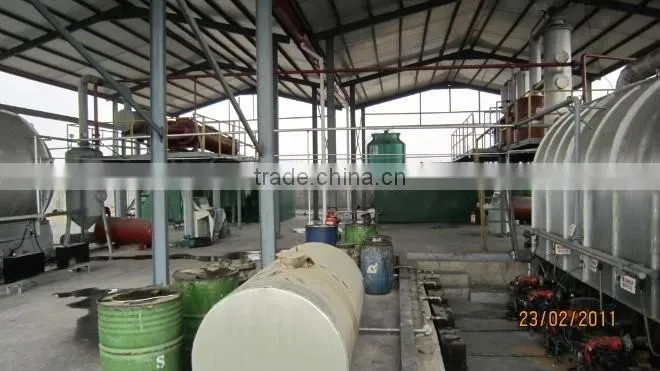

Installlation picture
Oil before and after distillation
plant advantages
1).This achievement essential equipment adopts the decompression; catalyzed split craft and the product chemistry extract technology.
2).Provides the environmental protection equipment is perfect. For instance waste gas burner and smoke dust removal room.
3).Adopts the simple chemistry method, has solved the product color and the unusual smell.
4).The oil extraction rate of the pure crude oil is not lower than 80%
5).This equipment design is reasonable, manufacture craft is advanced, high automatically, and the complete safety equipment .
Payment term and delivery:
30% TT deposit, balance paid by Sight LC/ 100% Sight L/C
Delivery with 15-20 days after getting advance payment or Sight L/C
