Help Center2016 Crude Oil Refinery Distillation Plant 10ton per 24hours
Related Products
-
Tire Oil Distillation Plant With 3-level Dedust System Pollution Free 10TPDUS$ 35,800 - 58,000MOQ: 1 Set -
Negatiave Presure Waste Engine Oil Refinery Distillation Equipment 15TPDUS$ 55,800 - 75,000MOQ: 1 Set
-
5tons Continous Pyrolysis Oil /tyre Oil/plastic Oil/used Engine Oil/waste Oil Refining EquipmentUS$ 35,800 - 58,000MOQ: 1 Set
-
Fuel Saving Style Oil Distillation Plant Used Motor Oil Recycling to Diesel Fraction 5tonUS$ 35,800 - 58,000MOQ: 1 Set
-
10ton per Day Non-stop The Oil Distillated Equipment Recycling Black Oil to Yellow OilUS$ 35,800 - 58,000MOQ: 1 Set
Main equipment list
1.Raw oil tank
This device is to store raw oil ,such as pyrolysis oil, waste engine oil,
black oil, waste lubrication oil, oil sludge etc.
2.Preheating system
This system will heat the raw oil and after heating this oil coming into disitllation reactor .this device use the hot smoke produced by dedust system ,this device can saving 1/3 fuel and saving disitllation time
3.Distillation reactor
This is the most important device , here the raw oil after preheating and go inside this reactor without stop. the reactor is horizontal ,and non-rotate when distillate oil .
this horizontal shape can giving bigger heating area then that of vertical reactor .so it can accelerate the disitllation .
tion final oil
4.Catalyst tower
This system we put catalyst chemical inside it and when distillate oil these chemical will make oil changed.
5.Distillaton tower
During distillation ,the oil will go up to certain altitude and in certain heating temperature, the altitude and temperature same important for oil change
6.Cooling device for oil
Cool oil by cool water .
The cooling system include water pool, condenser and cooling pipes and cooling tower, cooling tower is used for cooling the water inside water pool.
This cooling system’s water is recycling ,so water is recycled .
7.Final oil collection tank
These tanks used for collec
8.Safety device
This device is very important , it can keep anti-fire , it sure no backfire.
And the whole system is anti-explosion.
9. Electric Control system
This system can control the whole working system, it is easy to use. And very convenient
10.Heavy oil collection tank
Used for collection heavy oil after distillation.
Technical parameter:
1 | The raw materials: | Fuel oil /waste machine oil / transformer oil/waste lube |
2 | Out put | Base oil |
3 | Daily capacity: | 10ton /day |
4 | The size of reactor(L*W*H) | 4000*2200*2500m |
6. | Reactor material | Q345R |
7. | Final oil out rate | 75-85 % |
8. | Feeding way | continuous |
9 | Slag out | Auto continuous |
10 | Working area | 500-600 square meters |
11 | Cooling way | By water |
12. | Heating way | Direct/indirect |
13 | Working presure | Normal/slightly negative |
14 | Effective working temperature | 200-400℃ |
15 | Power | 15kw |
16 | voltage | 220v/380v |
17 | Fuel to heating | Coal wood, gas oil, etc |
18 | type | Pollution free |
19. | certificate | CE.ISO |
Work-flow:

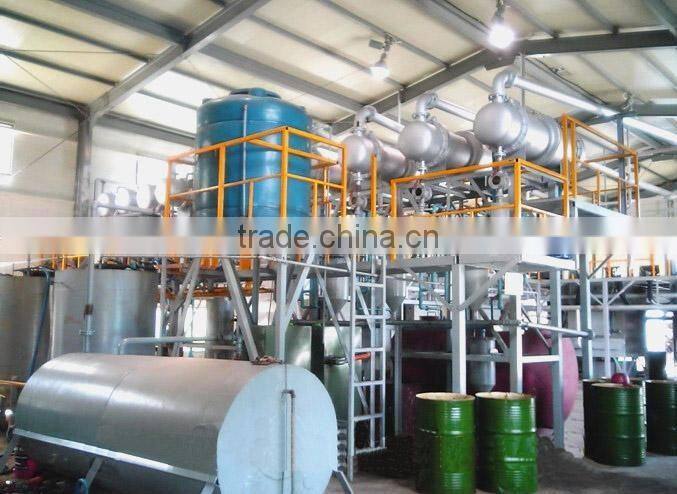

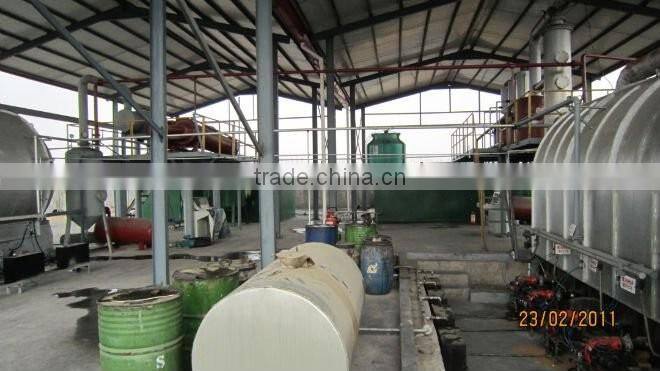

Installlation picture
Oil before and after distillation
Project | diesel | standard |
Oxidation stability | 2.2 | ≤2.5 mg/100ml |
Sulfur content | 0.3 | M/m≤0.2 |
10% steamed residual carbon residue | 0.33 | M/m≤0.3 |
Ash content (10%) | 0.16 | %m/m≤0.01 |
Waste content (10%) | traces | / |
Mechanical impurities | / | / |
Density (g/ml) | 0.85 | 0.83-0.87 |
Solidifying point ( ℃) | -10 | 0 |
Flash point (closed ) ( ℃) | 45 | 55 |
Movement viscosity | 3.5 | (20 ℃) mm2/s 3.0-8.0 |
Combustion value(Kcal) | 9500 | 8500 |
colority | 1.2 | ≤3.5 |
cetane number | 40 | 45 |
Acidity | / | MGkoh/100ml≤7 |
Plant Advantages
1).This achievement essential equipment adopts the decompression; catalyzed split craft and the product chemistry extract technology.
2).Provides the environmental protection equipment is perfect. For instance waste gas burner and smoke dust removal room.
3).Adopts the simple chemistry method, has solved the product color and the unusual smell.
4).The oil extraction rate of the pure crude oil is not lower than 80%
5).This equipment design is reasonable, manufacture craft is advanced, high automatically, and the complete safety equipment .

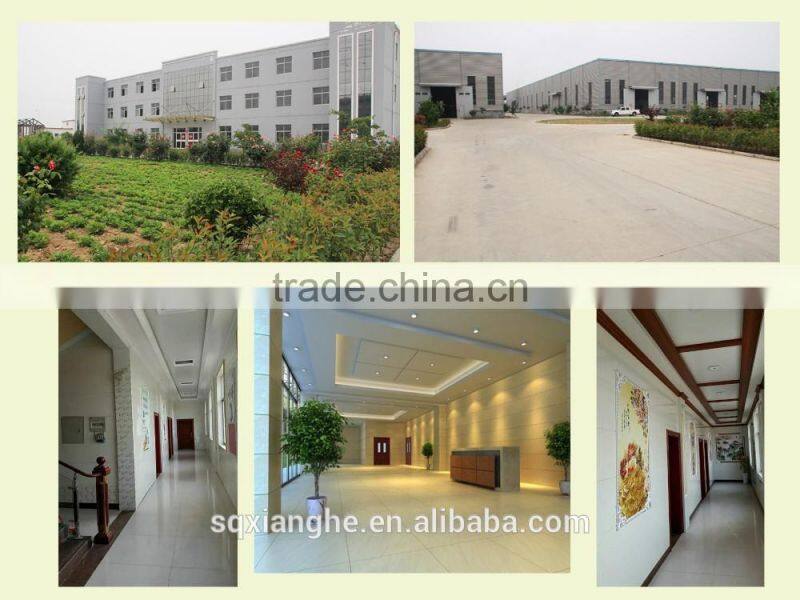

Our company
Shangqiu Harmony Machinery Manufacturting Co.,LTd. is a professional manufacturer engaged in the research, development, production, sale and service of Environmental machines, waste tire/rubber/plastic pyrolysis equipment, waste oil distillation machines, etc.
We have rich experience(8 years experience) in making and installation shangqiu harmony is the top 10 enterprise in disposing waste rubber and plastic.
Now our new tech is crude oil refining and city life trash recycling.
Which convert waste to energy without pollution .
