15TPD Waste diesel oil refinery oil distillation plant Saving fuel

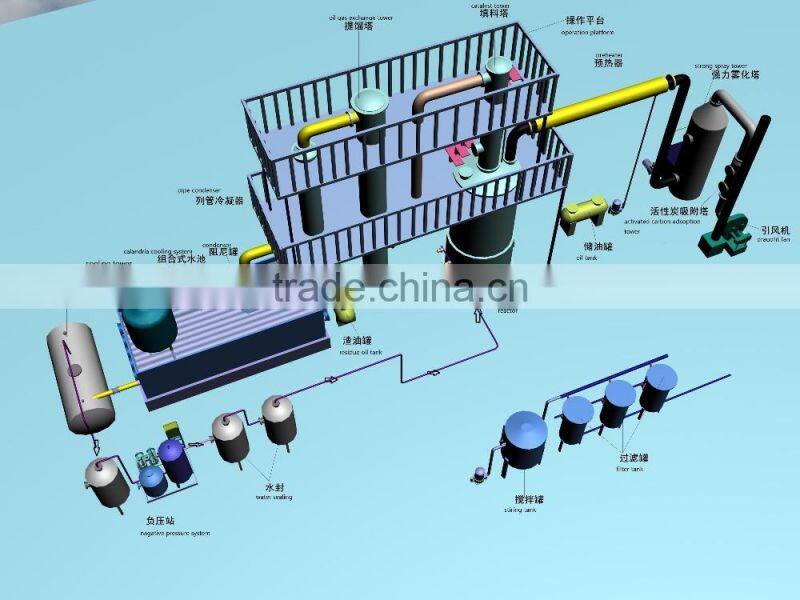

Main equipment list

1.Raw oil tank

This device is to store raw oil ,such as pyrolysis oil, waste engine oil,

black oil, waste lubrication oil, oil sludge etc.

2.Preheating system

This system will heat the raw oil and after heating this oil coming into disitllation reactor .this device use the hot smoke produced by dedust system ,this device can saving 1/3 fuel and saving disitllation time

3.Distillation reactor

This is the most important device , here the raw oil after preheating and go inside this reactor without stop. the reactor is horizontal ,and non-rotate when distillate oil .

this horizontal shape can giving bigger heating area then that of vertical reactor .so it can accelerate the disitllation .

tion final oil

4.Catalyst tower

This system we put catalyst chemical inside it and when distillate oil these chemical will make oil changed.

5.Distillaton tower

During distillation ,the oil will go up to certain altitude and in certain heating temperature, the altitude and temperature same important for oil change

6.Cooling device for oil

Cool oil by cool water .

The cooling system include water pool, condenser and cooling pipes and cooling tower, cooling tower is used for cooling the water inside water pool.

This cooling system’s water is recycling ,so water is recycled .

7.Final oil collection tank

These tanks used for collec

8.Safety device

This device is very important , it can keep anti-fire , it sure no backfire.

And the whole system is anti-explosion.

9. Electric Control system

This system can control the whole working system, it is easy to use. And very convenient

10.Heavy oil collection tank

Used for collection heavy oil after distillation.
