Main equipment list
1. Each set of unit is comprised of the following eight parts:
a. Reboiler
b. Fractionating tower
c. Pressure release device
d. Central electric control system
e. Condensation system
f. Fuel gas heating system (exhaust treatment system)
g. Air heater
h. Flue dust collecting system
2. Domestic origination:
a. The whole set installment's production entire process is moves in the smokeless tasteless environment, the environmental protection effect is good.
b. The pressure release device operates through water circulation, which greatly improves the security of the system.
c. The release of pressure during the production dramatically increases the output within certain time and meanwhile improves the quality of oil.
d. The heating system adopts hot air heating technology, which improves the safety performance of production and heating efficiency.
e. Highly effective fuel gas heating system. In refinery process, when is heated up after the gas amounts to 150 degrees Celsius, will produce the gas which the massive normal temperature able to meet the demands of domestic market except the domestically produced crude oil in accordance with the news publicized by China Petroleum & Chemical Corporation. Since 2008, the international price of crude oil increases time and again, and the price of each bucket of crude oil has exceeded 100 dollars (quotation from OPEC in February 2008).
Technical parameter:
1 | The raw materials: | Fuel oil /waste machine oil / transformer oil/waste lube |
2 | Out put | Base oil |
3 | Daily capacity: | 10ton /day |
4 | The size of reactor(L*W*H) | 4000*2200*2500m |
6. | Reactor material | Q345R |
7. | Final oil out rate | 75-85 % |
8. | Feeding way | continuous |
9 | Slag out | Auto continuous |
10 | Working area | 500-600 square meters |
11 | Cooling way | By water |
12. | Heating way | Direct/indirect |
13 | Working presure | Normal/slightly negative |
14 | Effective working temperature | 200-400℃ |
15 | Power | 15kw |
16 | voltage | 220v/380v |
17 | Fuel to heating | Coal wood, gas oil, etc |
18 | type | Pollution free |
19. | certificate | CE.ISO |
Work-flow:

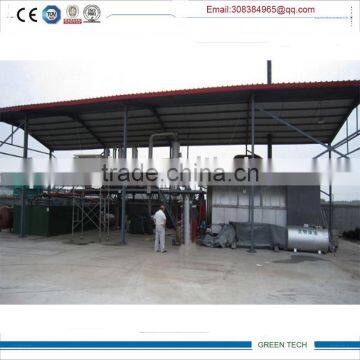

Installlation picture

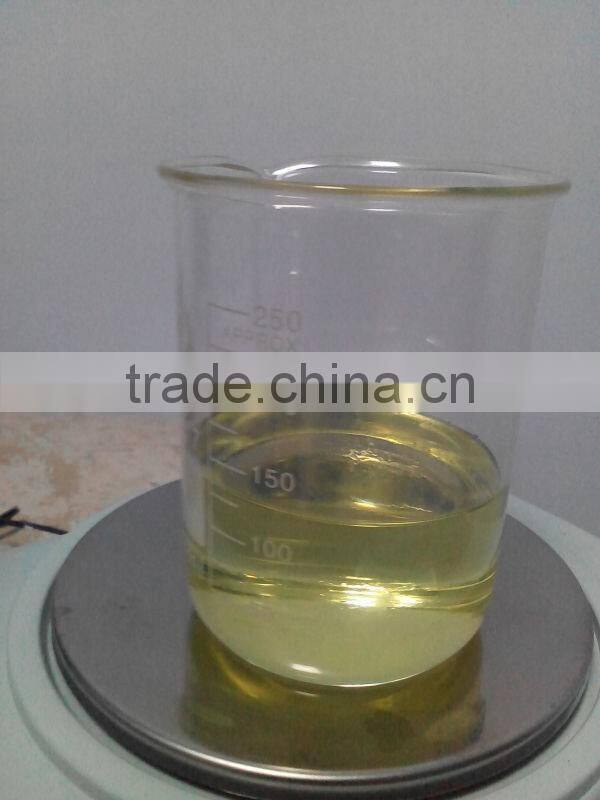

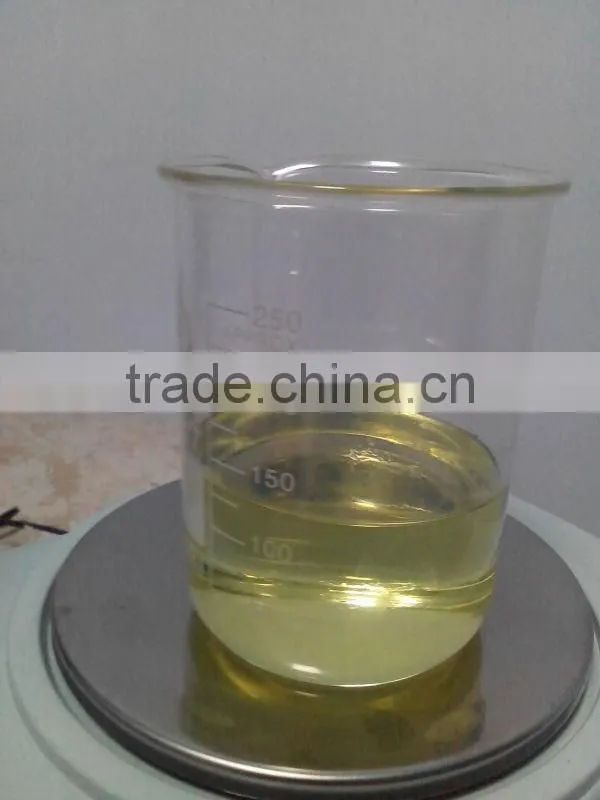

Oil before and after distillation
Project | diesel | standard |
Oxidation stability | 2.2 | ≤2.5 mg/100ml |
Sulfur content | 0.3 | M/m≤0.2 |
10% steamed residual carbon residue | 0.33 | M/m≤0.3 |
Ash content (10%) | 0.16 | %m/m≤0.01 |
Waste content (10%) | traces | / |
Mechanical impurities | / | / |
Density (g/ml) | 0.85 | 0.83-0.87 |
Solidifying point ( ℃) | -10 | 0 |
Flash point (closed ) ( ℃) | 45 | 55 |
Movement viscosity | 3.5 | (20 ℃) mm2/s 3.0-8.0 |
Combustion value(Kcal) | 9500 | 8500 |
colority | 1.2 | ≤3.5 |
cetane number | 40 | 45 |
Acidity | / | MGkoh/100ml≤7 |
Plant Advantages
1).This achievement essential equipment adopts the decompression; catalyzed split craft and the product chemistry extract technology.
2).Provides the environmental protection equipment is perfect. For instance waste gas burner and smoke dust removal room.
3).Adopts the simple chemistry method, has solved the product color and the unusual smell.
4).The oil extraction rate of the pure crude oil is not lower than 80%
5).This equipment design is reasonable, manufacture craft is advanced, high automatically, and the complete safety equipment .

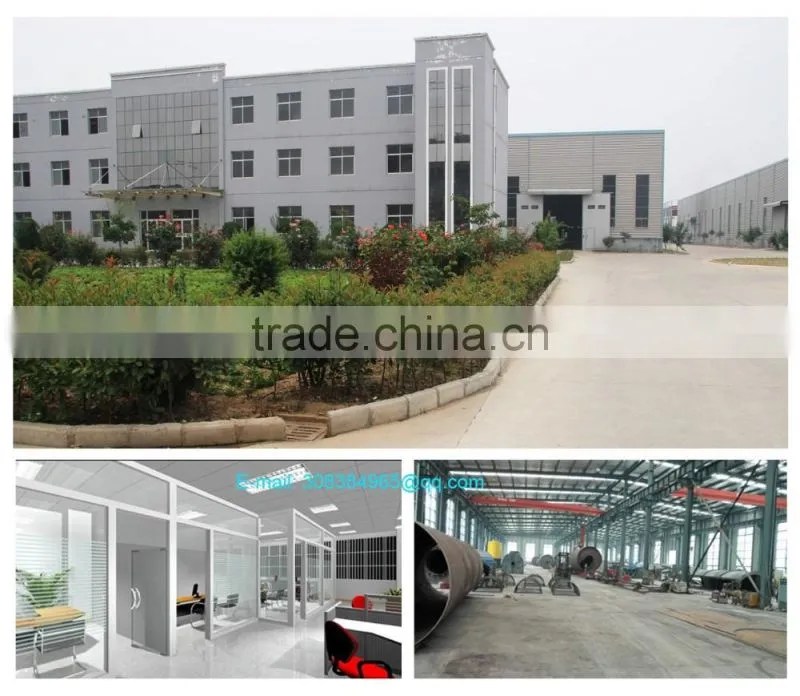

Our company
Shangqiu Harmony Machinery Manufacturting Co.,LTd. is a professional manufacturer engaged in the research, development, production, sale and service of Environmental machines, waste tire/rubber/plastic pyrolysis equipment, waste oil distillation machines, etc.
We have rich experience(8 years experience) in making and installation shangqiu harmony is the top 10 enterprise in disposing waste rubber and plastic.
Now our new tech is crude oil refining and city life trash recycling.
Which convert waste to energy without pollution .
