Environmental protection Batch type tyre pyrolsyis equipment xhzt-2600-6600
incal parameter:
NO. | Name | Parameter |
1 | The raw materials: | waste tyres,/plastic, oil sludge |
2 | Daily capacity: | 10 ton/day |
3 | The size of reactor | 2600*6600mm 16mm thickness |
4 | Reactor material | Q345R |
5 | Average oil productivity: | 30%-80%, |
6 | Average carbon productivity: | 20%-35% |
7 | Plastic oil rate | 30%-80% |
8 | pyrolysis time | 6-8 hours |
9 | Discharge time | 1.5 hour |
10 | Feeding time | 3 hourS |
11 | Cooling time | 3 hours |
12. | Working pressure | Normal /slightly negative |
13 | Power | 18 kw |
14 | Fuel | Coal. Wood, gas etc |
15 | Working area | 1000 square meters |
16 | Total weight | 35 000kgs |
17 | Reactor rotate speed | 0.25-0.4/min |
18 | Noise | No less than 85DB |
19. | Certificate | Ce,.iso, |
20. | Carbon slag out | Automatic |
2. Pyrolysis working process:
3.Oil rate for different material
Item | Raw material |
Oil Output
|
Tires | Steel Wire Tire | 40%-55% |
Nylon Tire | ≈40% | |
Bicycle tire | ≈35% | |
Paper Pulp | Coarse Material | ≈20% |
Water Washing Material | 23% -30% | |
PE Material | ≈70% | |
Cable Skin | PE Cable Skin | ≈85% |
PVC Cable Skin | ≈25% | |
Pure Rubber Cable Skin | ≈35% | |
Telephone Wire | ≈50% | |
Life Garbage | Pure Plastic Bags | ≈50% |
Coarse Material With Water | ≈15% | |
Weaves & Handbags | ≈60% | |
Shoes | Black Rubber | ≈35% |
Sports Shoe's Sole | 27%-33% | |
Gum Outsole | ≈35% | |
Plastic` | Pure PP | ≥65% |
Pure PE | ≥70% | |
PO,PS | ≈30% | |
ABS | ≈40% | |
Others | Common Rubber Pipe | ≈30% |
| Carpets | ≈35% |
| Aluminum Foil | ≈35% |
| Car Glass Bead | ≈50% |
| PP Beverage Bottle | ≈50% |

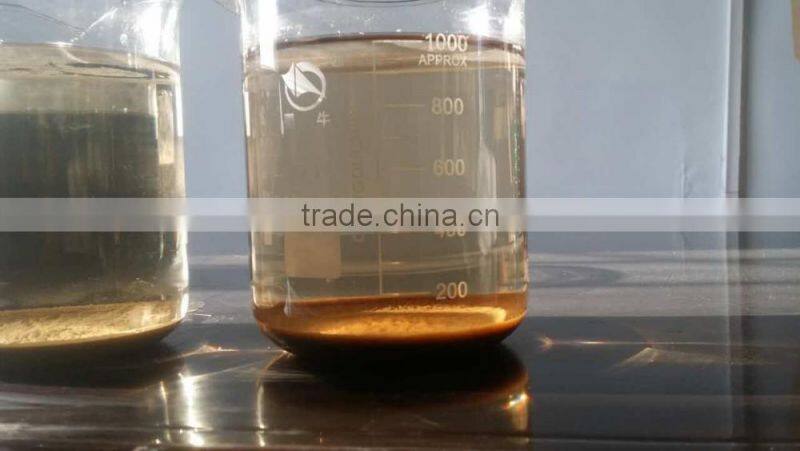

4.Oil we get
5.Running machine
6.About us:
Shangqiu Harmony Machinery Manufacturting Co.,LTd. is a professional manufacturer engaged in the research, development, production, sale and service of Environmental machines, waste tire/rubber/plastic pyrolysis equipment, waste oil distillation machines, etc.
We have rich experience(8 years experience) in making and installation shangqiu harmony is the top 10 enterprise in disposing waste rubber and plastic and has been cooperated with one South Korea company to dispose waste plastic . The company has gained rich experience and achievement in processing waste solid. This project in dealing with city living waste has been approved by South Korea government and the continuous equipment has been under testing in Korea. The production line of processing level 2 waste tyre with automatic control has been under testing in Hong Kong.
7.Our products:
Pyrolysis plant | Type | Daily capacity | Used for | Final Product and usage |
Batch type | 3ton 5Ton 10ton 12ton 15ton 20ton | Waste tyre Plastic Rubber Oil sludge Oily waste Others |
Fuel oil
Used for heating boiler as furnace oil Or refined for distillation oil | |
Semi-continuous type | 15Ton, 20Ton | |||
Fully continuous type | 20ton 30ton 60ton | |||
Special type | 20Ton 15ton | |||
Distillation plant |
Fully continuous type | 3ton 5ton 10ton 15ton 20ton 30ton 40ton
| Used motor oil Used lube Washing parts oil Pyrolysis oil Crude oil Others
| A.. base oil for heavy vehicles
B. diesel for car and other |
8. How can we make pollution free?
a> waste-gas :
during the process of pyrolysis , there will cause 5% waste-gas, but the waste-gas can be burnt again in the reactor as fuel materials to keep the temperature in the reactor, have you noticed the green hole in the reactor, the waste-gas enter into the hole and is burnt again. So there is no waste-gas at all.
b> Waste-water:
there is a water-recycling system in the set of plant, all the process, the water can be used circulatory. So there is no waste-water in the process of pyrolysis
c> Bad smell:
there will be some chemical substances feed into the catalysis tower and burnt together with the tires. It can get rid of bad smell and improve the quality of oil.
d> Emission controller:
there is emission controller in the set of plant, it won’t cause dirty dust in the process of pyrolysis. we have got the patent of this emission controller, it can reach to the environmental standard of South-Korea. you know, South-Korea is strict with the environmental protection
