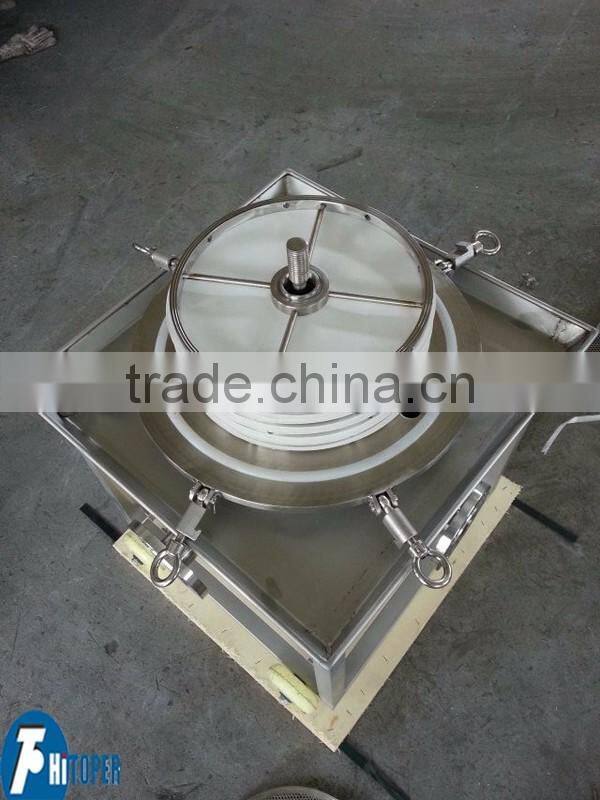

New design stainless steel micro filter can be heating
Stainless steel filter, is our new design stacked plate and frame filter, is widely used in chemical, pharmaceutical, oil and environmental protection industries, is a new filter equipment for all kinds of tiny impurities in the liquid filtration, clarification, purification treatment. Also is a new filter with sophisticated technology, stability performance, corrosion-resistant, durable, novel structure, easy to operation, energy-efficient and flexible, adaptable multipurpose filtration equipment.
Stainless steel filter structure:
This filter consists of multi-overlap filter plates and filter frames. The holes on the plates is drilling by the computer programs, small and uniform, which ensures evenly filtration pressure on the filter plates, to give you a better filtration effect, With the pump raw solution get into the cylinder body, go into the chamber by the holes on the frames, get through the filter medium and flow out from the small holes on the plates, then qualified liquid discharge. We can give you suitable filter medium with your requirments, like polypropylene membrane, enhanced membrane, filter paper, cloth, special decarbonization filter membrane and so on.
Stainless steel filter features:
Besides big flow rate, high speed, more activated carbon alive, small footprint, large filter area, easy operation and so on. The machine is particularly used in chemical liquid and viscous liquid filtration. Solve the problem of a viscous liquid filtration in chemical industry. Ensure filtration liquid odor in closed state work, so do not run liquid filtration (seepage of liquid), no residual liquid within the filter, do clean and odorless in operation and workshop, forward on environmental management step.
Stainless steel filter advantages, compare to traditional stainless steel multi-layers filter,
1. This filter can withstand the pressure 0.1--0.6Mpa, no leakage, because this machine adopts mechanical pressing and closed flange connection, eliminate leakage phenomenon.
2. The maximum flow can be done 200T / h, due to the unit enters from the inlet DN40 or DN50, DN80, DN100, DN120, which divided two to three inlets into the filter, get into the chambers by the 6-8 holes in the frames, get through the filter medium and flow out from the small holes on the plates, the discharge outlet is DN40 or DN50, DN80, DN100, DN120, fully ensure that the inlet fluid also ensures that the liquid discharge. can ensure a large flow and shorten the filtration cycle.
3. There is two types of insulation filter and normal temperature filter, insulation filter solve the problems of low temperature crystallization and slow flow in pharmaceutical, fine chemical liquid filtration. Available three kinds of heating ways, steam heating, hot water heating or electric heating tube(jacket), three sandwich also can be.
Technical parameters.
