Home > Products > peristaltic pump > KBT100F/KYZ25 Color LCD displaying, touch screen and keypad,Stainless steel shell,Intelligent dispensing peristaltic pump

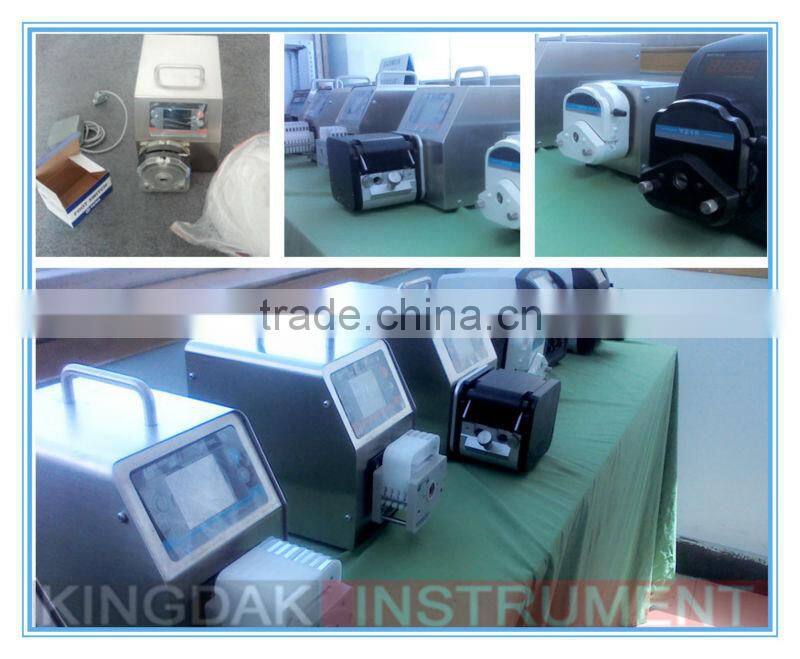

KBT100F/KYZ25 Color LCD displaying, touch screen and keypad,Stainless steel shell,Intelligent dispensing peristaltic pump
- 500 Piece / Pieces per Month
- SHANGHAI
- Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Shanghai, China | Brand Name: | KINGDAK | Model Number: | KBT100F |
Theory: | Electromagnetic Pump | Structure: | Gear Pump | Usage: | Other, viscosity fluid |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, electricity |
Pressure: | Low Pressure | Application: | Other, pumping a variety of fluids |
Product Description

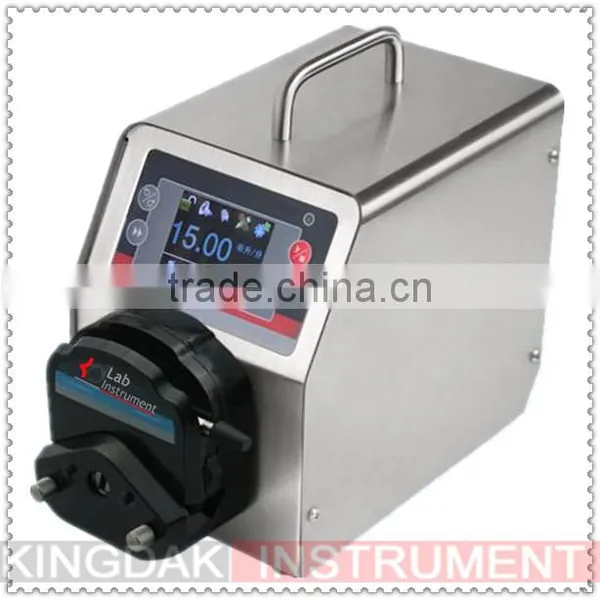

KBT100F intelligent dispensing Peristaltic Pump
Description:
KBT-100F intelligent dispensing peristaltic pump, applies the stepper motor of 32 microprocessor and the color touch screen operation. And the intelligent expert operating system guide the operator control the pump smoothly; the vector control technique of the motor and the optimized speed control technology, reduce the dispensing errors under the traditional time dispensing mode for the motor slow start; .
Feature:
1 Color touch screen operation makes the peristaltic pump have more information and more intuitive display;
2 Intelligent temperature control system can guarantee the smooth work even the operator never used the pump before;
3 Intelligent temperature control technology greatly reduces the working noise of the peristaltic pump, and achieves energy conservation;
4 Three dispense mode: time dispensing, fluid volume dispensing, copying dispensing, satisfy different requirements;
5 Accumulated the whole fluid volume, and transferred volume;
6 Infrared remote control guarantee the non-touch control;
7 RS485 bus, support M0DBUS communication protocol, connection with the principal computer conveniently.
Specification:

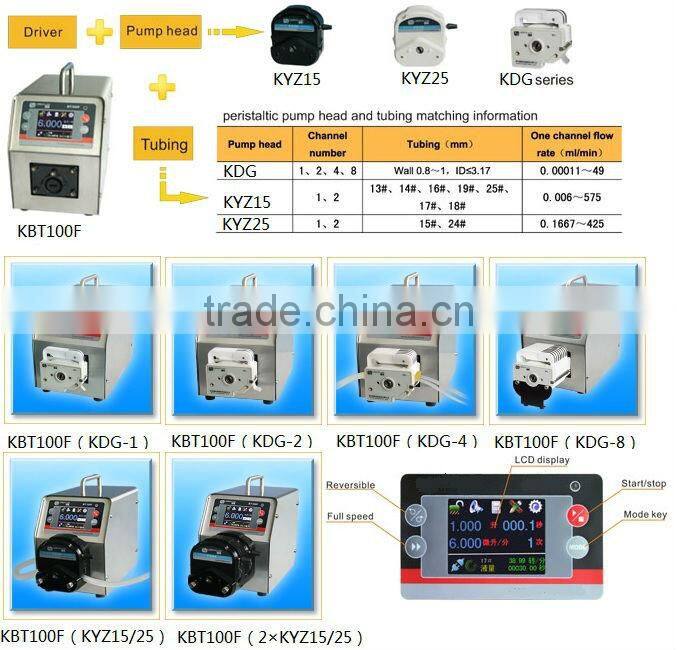

Drive | Pump heads | Channel | Applicable tubing(mm) | Single channel flow rate (ml/min) |
KBT100F (stainless steel 304) | KDG6-1 | 1 | Wall thickness0.8~1, ID≤3.17 | 0.00016~49 |
KDG10-1 | 1 | Wall thickness0.8~1, ID≤3.17 | 0.00011~41 | |
KDG6-2 | 2 | Wall thickness0.8~1, ID≤3.17 | 0.00016~49 | |
KDG10-2 | 2 | Wall thickness0.8~1, ID≤3.17 | 0.00011~41 | |
KDG6-4 | 4 | Wall thickness0.8~1, ID≤3.17 | 0.00016~49 | |
KDG10-4 | 4 | Wall thickness0.8~1, ID≤3.17 | 0.00011~41 | |
KDG6-8 | 8 | Wall thickness0.8~1, ID≤3.17 | 0.00016~49 | |
KDG10-8 | 8 | Wall thickness0.8~1, ID≤3.17 | 0.00011~41 | |
KYZ15 | 1 | 13#14#16#19#25#17#18# | 0.0006~575 | |
KYZ25 | 1 | 15#24# | 0.1667~425 | |
2×KYZ15 | 2 | 13#14#16#19#25#17#18# | 0.0006~575 | |
2×KYZ25 | 2 | 15#24# | 0.1667~425 |
External control function:
Infrared remote control, foots wtich control, external control start and stop, external control direction, with isolation;
5V, 12V, 24V level input;
0-5V/10V, 4-20 mA, 0-10KHz speed control;
RS485, support M0DBUS communication protocol.
